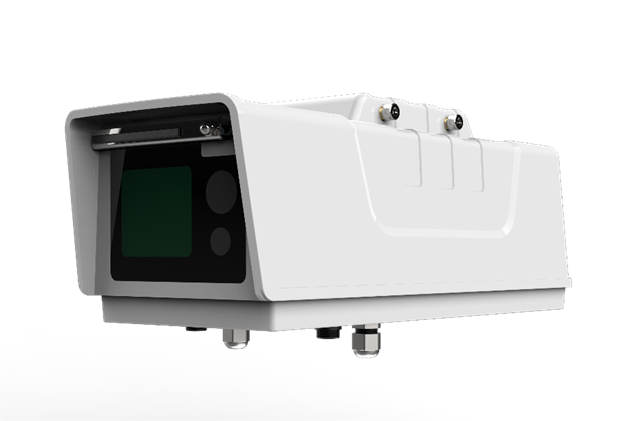

LiDAR Visual Intelligent Monitoring
√ Responsible the device adopts a dual-camera integrated design structure
√ Equipped with a starlight-level low-illuminance camera
√ Point Cloud Real-time Collection, LiDAR (Light Detection and Ranging), Visual Intelligent Monitoring, Multi-sensor Data Fusion
√ Can easily control low-light environments and night scenes, and meet the needs of 24-hour surveillance
√ 3D Reconstruction, Front-end Analysis, Intelligent Identification, Visible Light Linkage
√ Collecting video/image data, automatically monitors and identifies hidden dangers and gives early warnings in time
√ Realizes the function of visualized online monitoring of transmission lines
If you're in need of lidar visual intelligent monitoring to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
Our visual transmission line solutions are widely used in State Grid and China Southern Power Grid. We installed our front-end equipment on 30,000 transmission line towers in China. Our solutions are used to intelligently identify safety hazards in power lines and communication fibers, as well as in the surrounding environment. And it will automatically alarm to the online platform to notify workers to maintain. This greatly reduces the likelihood of accidents (reduces blackout and trip rates) and can replace manual inspections. It solves 80% of electronic surveillance problems at 20% of the cost. The comprehensive monitoring and early warning information of channel hidden dangers is pushed in real time 24 hours a day, which improves the quality of OHL inspections.
| Video | |||||||||||||
| Description | |||||||||||||
The device adopts the design structure of camera and LiDAR integration, and incorporates non-repeating scanning LiDAR sensor. Through the integrated device integration technology, multi-sensor data fusion technology, big data platform intelligent management technology, designed LiDAR real-time three-dimensional reconfiguration of power transmission hidden trouble accurate ranging device and visualization warning system, to solve the transmission channel vehicles, tree growth, terrain changes and wire arc sag hidden trouble integration monitoring difficulties. Realized the transmission channel field of view three-dimensional reconstruction, transmission hidden trouble refinement and visualization of early warning management.
| Application Background | |||||||||||||
Overhead transmission lines are generally several kilometers to hundreds of kilometers long. Line equipment operates in the natural environment for a long time and is affected by various climatic conditions (such as storms, floods, ice and snow, heavy fog, pollution, lightning strikes, etc.); in addition, there are other external damages (such as construction machinery damage, etc.). These factors endanger the safe operation of the line at any time. Therefore, once a failure occurs, it takes a long time to repair, resulting in different degrees of loss. It is necessary to strengthen the inspection of the line, repair and eliminate hidden dangers in time, and formulate safety measures.
| Why Choose Senter Vision Intelligent Inspection Equipment for Overhead Transmission Lines | |||||||||||||
-
SENTER ST2303B high-resolution security camera monitor system can do remote site surveillance. It designed to be used in the place where no power electronic, no network. Because it is powered by solar panels, it communicates with computer system or mobile phone app via GSM, 2G, 3G, 4G.
-
We use less than 20% of the cost to solve 80% of the demand pain points, significantly reduce the cost and improve the service life.
-
The most important thing is that we can find hidden dangers in advance, such as wildfires, cranes, bird damage and all the dangers that may damage the transmission line, and then the inspection personnel can arrive at the scene in advance, thus greatly reducing the power outage rate.
| Technical Parameter | |||||||||||||
|
Camera |
|
|
Sensor type |
Day vision lens: 1/4-inch CMOS Night vision lens: 1/2 inch CMOS |
|
Pixels |
Day vision lens: 16 million Night vision lens: 2 million |
|
Maximum resolution |
Day vision lens：4608×3456 Night vision lens：1920×1080 |
|
Minimum illumination |
Color: 0.001Lux@F1.5 Black & White: 0.0005Lux@F1.5 |
|
Camera lens |
|
|
Focal length of lens |
Day vision lens: 3.7mm Night vision lens: 4.9mm |
|
Lens aperture |
Day vision lens: F2.0 Night vision lens: F1.65 |
|
Field-of-view angle |
Day vision lens: V50.6°H64.3°D76.2° Night vision lens: V46°H82°D94° |
|
Laser radar |
|
|
laser wavelength |
905nm |
|
FOV |
Non-Repeat Scan:70.4°(Horizontal)x77.2°(Vertical) Repeat Scanning:70.4°(Horizontal)x4.5°(Vertical) |
|
Beam divergence angle |
0.03° (horizontal) x 0.28° (vertical) |
|
Point cloud Output |
240,000 points/sec (configurable first or strongest echo) 480,000 points/sec (dual echo) 720,000 points/sec (triple echo) |
|
Data delay |
≤2ms |
|
Human eye safety level (HESL) |
Class 1 (IEC 60825-1:2014)human eye safety |
|
Professional Intelligence |
|
|
Intelligent identification |
Supports automatic identification of common hidden dangers in transmission corridors: construction equipment (tower cranes, cranes, pump trucks, excavators, bulldozers, shovels, rollers, forklifts, piling rigs, graders, gravers, insulated bucket trucks, trucks), missing fixtures (insulators with blown pieces, insulators with missing pieces, fixture pins with missing pins), smoke from hill fires (smoke, open fires), and foreign objects in conductor wires (foreign objects above the wires, foreign objects under the wires-dust-proof nets, foreign objects below the wires-reflective films), and so on. |
|
Front-end analysis |
Supports hidden danger analysis on the device side after the device has captured the hidden danger, and transmits the analysis results directly back to the back-end, shortening the vacuum period of image analysis and reducing the pressure on the back-end server. |
|
Local storage back-end access |
Support equipment to locally store the recording video, take the cycle to cover the storage mode, support the back-end at any time to access the equipment side of the video recording, reduce traffic costs |
|
Fusion analysis |
Supports remote triggering of LIDAR devices to actively collect point cloud data in the field of view, and fusion analysis of hidden dangers in the field of view using images and point cloud data |
|
Triggered by a linkage |
Support and visible light linkage analysis, the channel lens to identify and analyze the hidden danger in the field of view after the linkage of LiDAR to analyze the point cloud data in the field of view, and upload the alarm information to the platform. |
|
Video |
|
|
Video compression standard |
H.264;H.265;MJPEG |
|
Day-to-Night Conversion |
Time Zone Positioning / Optical Sensing |
|
Wide dynamic (physics) |
Support |
|
Fog permeability |
Electronically transparent fog |
|
Signal-to-noise ratio |
≥55dB |
|
Anti-shake function |
Electronic stabilization |
|
Internet |
|
|
Network protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS;NA |
|
Wireless standard |
3G/4G/5G Full Netcom (Mobile/Link/Telecom) |
|
Wi-Fi |
Supported, but recommended for testing only |
|
Power supply |
|
|
Power supply method |
Solar panel plus battery |
|
Power consumption |
0.25W (scanning point cloud data and taking a picture every 60min) 0.35W (scanning point cloud data and taking a picture every 30min) (Working time 30S, 24 hours a day) |
|
Solar panel/battery capacity |
Standard 18V90W/12.8V50AH 20-30 days 12.8V 120W/12.8V50AH |
|
Power supply |
Lithium Iron Phosphate Battery |
|
Working environment |
|
|
Operating temperature |
-25℃~+70℃ |
|
Operating humidity |
≤95% |
|
Protection class |
IP67 |
|
Framework |
|
|
Shell material |
Die-cast aluminum |
|
Product Size |
370.9mm*143.5mm*134.7mm (L×W×H) |
|
Net weight |
3.2kg |
|
Installation method |
Wall-mounted, angle-mounted |
|
Other items |
|
|
Night vision grade |
Starlight Rating |
|
Storage capacity |
Optional add-on TF card 16G, 32G, 64G, 128G |
|
Antennas |
Built-in antenna |
|
Positioning function |
Support GPS |
|
MTBF |
≧30000hours |
|
Camera Adjustability |
Omni-directional manual adjustment according to transmission line direction |
|
Monitoring cycle |
Front-end analysis of the default interval of 5 minutes a photo, timed return default 1 hour a photo, and sampling time period can be freely set; equipment to take pictures of the front-end analysis, identification of hidden problems immediately return, no hidden problems return timed return |
| Application Scenarios | |||||||||||||
Any voltage level line channel and tower monitoring.
OHL(overhead line transmission)
Prevent external damages to above-ground oil and gas pipelines
| Applicationeffects | |||||||||||||

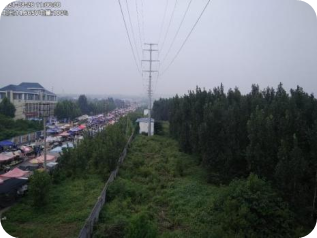

Visible light imaging

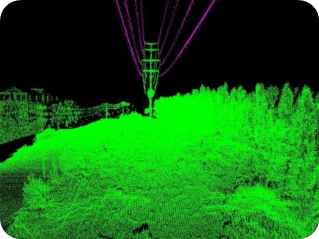

Point cloud modeling effect

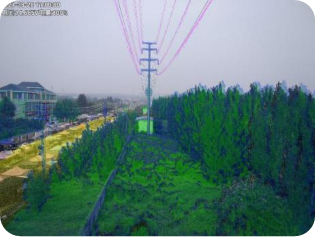

Multi-light fusion effect

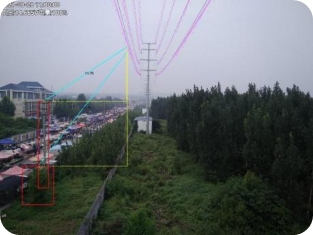

Hidden Danger Ranging Effect
The hidden danger of the transmission line itself
Ice detection
Missing insulator
Wire sagging
Downfall
| Installation | |||||||||||||
Two person, three steps, ten minutes
lTwo person operation: One person on the ground and one person on the tower can complete the installation of the whole set of device.
lThree steps: Simple adjustment under the tower, Minor adjustment to fix on the tower, testing transferred pass on the ground
lTen minutes: The installation of the device can be completed within ten minutes.
lAfter installation: engineer will do some camera setting to make it work with App and server.
| Way of working | |||||||||||||
It can be collected independently or as a fusion terminal host, and it can also be connected to a smart terminal.
| Show results | |||||||||||||
1.Field case
2.Channel perspective
| Our services | |||||||||||||
Payment terms: T/T 100%
Discounted Sample
Authentic Guarantee
Excellent After-Sale Service
Factory Direct Sale
DHL Fast Delivery
Dispatch Time: within 3 -5 days after payment
