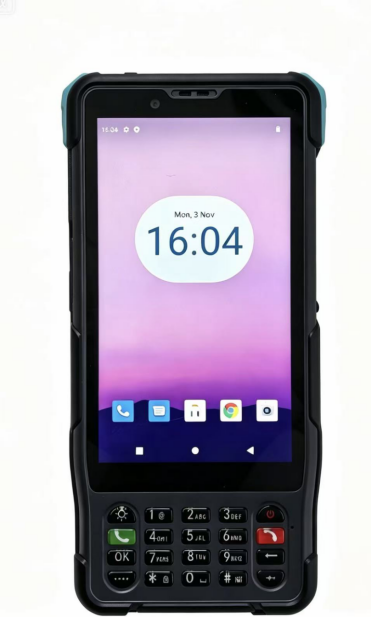

General Specifications

System

CPU is QCM6125,2GHZ 8Core

RAM 4G Flash 64G

Display screen

1080X1920TFT, true color 5.5 inch Capacitance touch screen

Operation system

Built-in Android 12 operation system with standard included applications: Web Browser, Phone dial, Flashlight, etc. and also extendable with any application down loadable from Google Play store.

GSM/GPRS/EDGE:GSM850/EGSM900/PCS1900/DCS1800 WCDMA:Band 1/2/5/8 FDD-LTE:Band 1/3/5/7/8/20/28 TDD-LTE:Band 38/40/41 (2496MHz~2690MHz)

Bluetooth

Support 5.0

WIFI

Support 802.11a/b/g/n/ac/ax

Power supply

Rechargeable 3.8V 8200mAh polymer battery and the max power is 3W.

GPS

Support GNSS wireless positioning,support GPS GLONASS BeiDou

Camera

5 million pixel front camera and 16 million pixel rear camera ,support auto focus and flash function.

Dimension

188mm*86mm*41mm, , robust field measurement instrument.

LED Indicators

Three – 1. Mobile networks/Instrument status (blinking when on); 2. xDSL indicator – connecting (blinking), connected (always on); 3. VFL/Cable tracking function (on when application is launched)

xDSL Index

xDSL test main functions

Physical Layer Info PPPoP Dial

FTP Client, Fixative IP Network Layer Test Modem Emulation PING

Support VLAN,HLOG,QLN Error Code Statistics

Bit Graph Display BPT /SNR Data

Modem Parameter Setting(VPI/VCI)

ADSL Index

Standards

ITU G.994.1 (G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL2 and READSL.

Attenuation:

0~63.5dB

Noise margin

0~32dB

Upstream Channel Rate (interweaved / fast mode)

0~1.2Mbps

Downstream Channel Rate (interweaved / fast mode)

0~24Mbps

The modulating bits in the DMT sub-channel

0~15 and each sub-channels' frequency points

The number of error codes

CRC, HEC, FEC, NCD, OCD

Other Parameters

The output power of DSL

It can display every condition of the DSL line: lost signal and shutdown of link

VDSL2 Index

Standards

ITU G.993.2(VDSL2).Be compatible with ADSL2+, ADSL standard.

Upstream Channel Rate (interweaved / fast mode)

0-100M

Downstream Channel Rate (interweaved / fast mode)

0-100M

The modulating bits in the DMT sub-channel

0~15 and each sub-channels' frequency points

The number of error codes

CRC, HEC, FEC, NCD, OCD

Other Parameters

The output power of DSL

It can display every condition of the DSL line: lost signal and shutdown of link DSLAM information

Error seconds

INP pulse protection SNR channel figure

Channel noise margin figure

Support profiles:

Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a,30a, 35b, G.fast

DMM Test Index

DC Voltage

-400 to 400 V; Resolution: 0.1V

AC Voltage

0 to 290 V

Capacitance

0 to 1000nF; Accuracy: 0-10nF: ±2nF, 10nF-1000nF: ±2 %±2nF

Loop Resistance

0 to 20KΩ; Accuracy: 0-100: ±3%±4Ω, 100-500: ±3%, 500-20 KΩ: ±2%

Insulation Resistance

0 to 50MΩ; Accuracy: 0-1.0M: ±0.1 MΩ, 1.0-30M: ±10%±0.5 MΩ

Optical Power meter

Wavelength range(nm)

800~1700

Photosensing material

InGaAs

Power test range(dBm)

-70~+10

Error range

±5%

Display distinguishability

Linear display: 0.1%;logarithmic display: 0.01 dBm

Adapters

FC, ST, SC

VFL

VFL

FP-LD

Wavelength

650nm±20nm

Output power

5mW

Connector

2.5mm universal adapter(SC, FC, ST)

Working mode

CW or 2Hz modulation

Applicable fiber

SM / MM

Cable Tracking

Test cable type

Network cable, twisted pair cable, telephone line, USB cable, coaxial cable.

Line status test

Determine open or short circuit

Voltage polarity detection

Positive and negative of DC voltage

Distance of signal transmission

No less than 3km

DC Voltage

No more than 48V

Check Line Sequence

Function

Support generate network line signal to view the network check line sequence with the receiver.

Feature

Easy to operate: determine the line sequence by receiving side lights order

Landline Telephone

Function

Connector with telephone line, can be used as landline

IPTV Test

Transmit Quality

Curt rate(kbps)

Transfer rate of the IPTV service packages

IP num(is)

Statistics of IP package gathered in the sampling period

Losted num

Data statistics of RTP package loss number gathered in the sampling period

IP Jitter

Reflect levels of IP packet transmission quality

Net Configuration

(Support any net encapsulation format, include TS, TCP, UDP, RTP, RTSP, PPPoE etc.)

MDI DF

Delay in MDI test regulated by RFC4445

MDI MLR

Media package loss number in MDI test regulated by RFC4445 Source MAC: IPTV sender MAC

Dst Mac

STB MAC address

Tos TTL

IP protocol information

Source IP

IPTV sender IP

Dst Port

STB IP

Source Port

IPTV sender port

Dest Port

STB port

Rtp type

RTP protocol information

Statistics

MLR-15

Statistical value of MLR in 15 minutes

Losted total

RTP packet loss total number in test cycle

Rate

Current test cycle rate, including maximum, minimum and average statistics

Gigabit Speed test

Function

Support 2 Lan port test (1G+2.5G)

WIFI 2.4 WIFI5 WIFI6, speed up to 920 mbps

Wired 1G＆2.5G Net Port, speed up to 1900mbps

Suport test by Speedtest App
