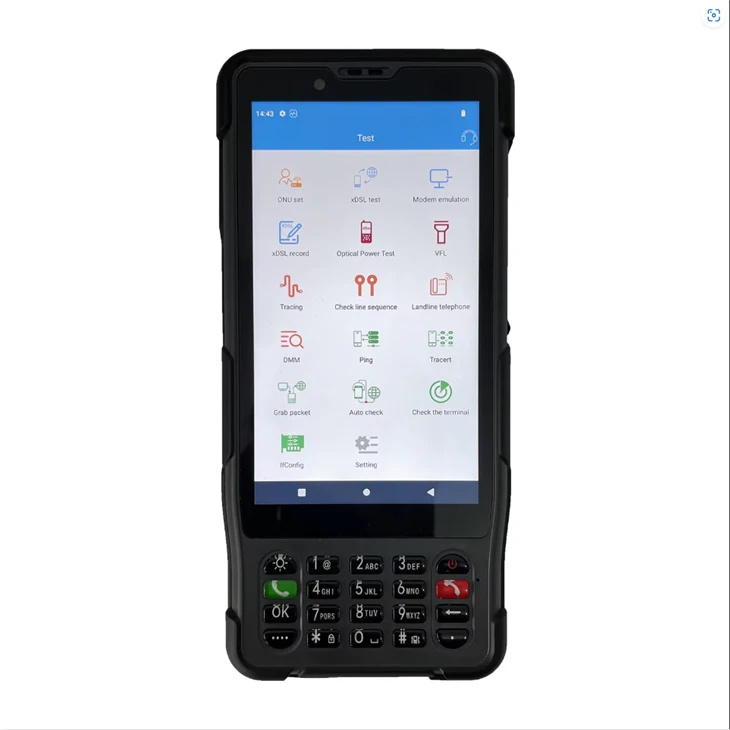

S337 V7 Telecom Test PDA with xDSL and Optical Fiber Tester
If you're in need of S337 V7 Telecom Test PDA with xDSL and Optical Fiber Tester to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
S337 V7 Telecom Test PDA
1. Android 12 operating system, Telecom operators can install any application program or software like SIP phone, iperf, speedtest, VNC, NDP, TCP port scan (instrument supports Google play service)
2. Industrial grade design, economical and durable.
3. It can improve the installation and maintenance efficiency and control efforts; effectively integrate and explore the human resource value; improve the image of telecommunication installation and maintenance as well as the subscribers' perception.(Work Force Management System)
4. It can realize the assets management by bar code scanning and at the meantime realizes the dual management of people and goods.
By nature of Android OS it can do multiple additional features like: Wired/Wireless Gigabit speed test (With Telecom's speedtest APP or Speedtest App),Wifi testing, GPS navigation, Work order receipt, TV emulation, and more.
Features
1. 2GHZ CPU and fast processor
2. Field instrument with strong protection for bad environment
3. Visible 5.5 inch LCD in the sunlight
4. The storage capacity is big and extensible
5. Advanced battery installation design and strong endurance
6. Support Google Play
7. Support DMM,VLAN,HLOG,QLN
8. Can install Work Force Management System or Play Store apps
9. Mobile phone + Telecom test function
10. CE certificate
11. Gigabit dual Lan port (1G+2.5G)
12. Support VLC to view IPTV channel
13. Broadcom BCM63381 chipset with vectoring (G.993.5) support
14. Support 1 Gbps download speed
15. Support WiFi 2.4G/5G/6
Main Specifications
| General Specifications | |
| System | CPU is QCM6125,2GHZ 8Core RAM 4G Flash 64G |
| Display screen | 1080X1920TFT, true color 5.5 inch Capacitance touch screen |
| Operation system | Built-in Android 12 operation system with standard included applications: Web Browser, Phone dial, Flashlight, etc. and also extendable with any application down loadable from Google Play store. |
| 4G | GSM/GPRS/EDGE:GSM850/EGSM900/PCS1900/DCS1800 WCDMA:Band 1/2/5/8 FDD-LTE:Band 1/3/5/7/8/20/28 TDD-LTE:Band 38/40/41 (2496MHz~2690MHz) |
| Bluetooth | Support 5.0 |
| WIFI | Support 802.11a/b/g/n/ac/ax |
| Power supply | Rechargeable 3.8V 8200mAh polymer battery and the max power is 3W. |
| GPS | Support GNSS wireless positioning,support GPS GLONASS BeiDou |
| Camera | 5 million pixel front camera and 16 million pixel rear camera ,support auto focus and flash function. |
| Dimension | 188mm*86mm*41mm, , robust field measurement instrument. |
| LED Indicators | Three – 1. Mobile networks/Instrument status (blinking when on); 2. xDSL indicator – connecting (blinking), connected (always on); 3. VFL/Cable tracking function (on when application is launched) |
| xDSL Index | |
| xDSL test main functions | Physical Layer Info PPPoP Dial FTP Client, Fixative IP Network Layer Test Modem Emulation PING Support VLAN,HLOG,QLN Error Code Statistics Bit Graph Display BPT /SNR Data Modem Parameter Setting(VPI/VCI) |
| ADSL Index | |
| Standards | ITU G.994.1 (G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL2 and READSL. |
| Attenuation: | 0~63.5dB |
| Noise margin | 0~32dB |
| Upstream Channel Rate (interweaved / fast mode) | 0~1.2Mbps |
| Downstream Channel Rate (interweaved / fast mode) | 0~24Mbps |
| The modulating bits in the DMT sub-channel | 0~15 and each sub-channels' frequency points |
| The number of error codes | CRC, HEC, FEC, NCD, OCD |
| Other Parameters | The output power of DSL It can display every condition of the DSL line: lost signal and shutdown of link |
| VDSL2 Index | |
| Standards | ITU G.993.2(VDSL2).Be compatible with ADSL2+, ADSL standard. |
| Upstream Channel Rate (interweaved / fast mode) | 0-100M |
| Downstream Channel Rate (interweaved / fast mode) | 0-100M |
| The modulating bits in the DMT sub-channel | 0~15 and each sub-channels' frequency points |
| The number of error codes | CRC, HEC, FEC, NCD, OCD |
| Other Parameters | The output power of DSL It can display every condition of the DSL line: lost signal and shutdown of link DSLAM information Error seconds INP pulse protection SNR channel figure Channel noise margin figure |
| Support profiles: | Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a(30a, 35b, G.fast module optional). |
| DMM Test Index | |
| DC Voltage | -400 to 400 V; Resolution: 0.1V |
| AC Voltage | 0 to 290 V |
| Capacitance | 0 to 1000nF; Accuracy: 0-10nF: ±2nF, 10nF-1000nF: ±2 %±2nF |
| Loop Resistance | 0 to 20KΩ; Accuracy: 0-100: ±3%±4Ω, 100-500: ±3%, 500-20 KΩ: ±2% |
| Insulation Resistance | 0 to 50MΩ; Accuracy: 0-1.0M: ±0.1 MΩ, 1.0-30M: ±10%±0.5 MΩ |
| Optical Power meter | |
| Wavelength range(nm) | 800~1700 (basic opm 850/1300/1310/1490/1550/1625 nm; or PON opm 1270/1577nm) |
| Photosensing material | InGaAs |
| Power test range(dBm) | -70~+10 or -50~+26 |
| Error range | 0.1% |
| Display distinguishability | Linear display: 0.1%;logarithmic display: 0.01 dBm |
| Adapters | FC, ST, SC |
| VFL | |
| VFL | FP-LD |
| Wavelength | 650nm±20nm |
| Output power | 10mW |
| Connector | 2.5mm universal adapter(SC, FC, ST) |
| Working mode | CW or 2Hz modulation |
| Applicable fiber | SM / MM |
| Cable Tracking | |
| Test cable type | Network cable, twisted pair cable, telephone line, USB cable, coaxial cable. |
| Line status test | Determine open or short circuit |
| Voltage polarity detection | Positive and negative of DC voltage |
| Distance of signal transmission | No less than 3km |
| DC Voltage | No more than 48V |
| Check Line Sequence | |
| Function | Support generate network line signal to view the network check line sequence with the receiver. |
| Feature | Easy to operate: determine the line sequence by receiving side lights order |
| Landline Telephone | |
| Function | Connector with telephone line, can be used as landline |
| IPTV Test | |
| Transmit Quality | |
| Curt rate(kbps) | Transfer rate of the IPTV service packages |
| IP num(is) | Statistics of IP package gathered in the sampling period |
| Losted num | Data statistics of RTP package loss number gathered in the sampling period |
| IP Jitter | Reflect levels of IP packet transmission quality |
Net Configuration (Support any net encapsulation format, include TS, TCP, UDP, RTP, RTSP, PPPoE etc.) | |
| MDI DF | Delay in MDI test regulated by RFC4445 |
| MDI MLR | Media package loss number in MDI test regulated by RFC4445 Source MAC: IPTV sender MAC |
| Dst Mac | STB MAC address |
| Tos TTL | IP protocol information |
| Source IP | IPTV sender IP |
| Dst Port | STB IP |
| Source Port | IPTV sender port |
| Dest Port | STB port |
| Rtp type | RTP protocol information |
| Statistics | |
| MLR-15 | Statistical value of MLR in 15 minutes |
| Losted total | RTP packet loss total number in test cycle |
| Rate | Current test cycle rate, including maximum, minimum and average statistics |
| Gigabit Speed test | |
| Function | Support 2 Lan port test (1G+2.5G) WIFI 2.4 WIFI5 WIFI6, speed up to 920 mbps Wired 1G＆2.5G Net Port, speed up to 1900mbps Suport test by Speedtest App |
| Cable Fault Locator (TDR) | |
| General specifications | Check line mix and break fault. Auto and manual distance test |
| Test range | 4km or 8km |
| Highest resolution | 1m |
| Dead zone | 0m |
| Power consumption | 1W |
| VOP adjusting range | 100-300 m/us |
| Distance test accuracy | ≤1m |
| Pulse test voltage range | ≥30V |
