AI Power Transmission Monitoring Camera

Name: AI Power Transmission Monitoring Camera Manufacturers and Factory China - Low Price - Senter Electronic
Brand: Senter
SKU: 299853384

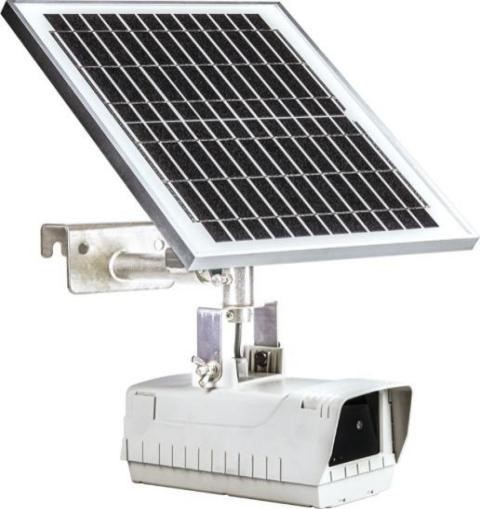

ST2303B V2.0 basic solar wireless AI camera

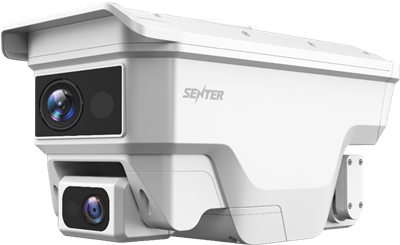

The device adopts a dual lens integrated design structure, equipped with a starlight-level night-vision lens with optional zoom lens, combined with a large-size image sensor and digital wide dynamic range, which can easily manage low-light environments and nighttime scenes to meet the needs of 24-hour monitoring. By collecting video/image and other data, the device automatically monitors and identifies hidden dangers and provides timely warnings, realizing the function of visual online monitoring of transmission lines.

Send Inquiry

Product Introduction

If you're in need of ai power transmission monitoring camera to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.

Our visual transmission line solutions are widely used in State Grid and China Southern Power Grid. We installed our front-end equipment on 30,000 transmission line towers in China. Our solutions are used to intelligently identify safety hazards in power lines and communication fibers, as well as in the surrounding environment. And it will automatically alarm to the online platform to notify workers to maintain. This greatly reduces the likelihood of accidents (reduces blackout and trip rates) and can replace manual inspections. It solves 80% of electronic surveillance problems at 20% of the cost. The comprehensive monitoring and early warning information of channel hidden dangers is pushed in real time 24 hours a day, which improves the quality of OHL inspections.

Application Background

Overhead transmission lines are generally several kilometers to hundreds of kilometers long. Line equipment operates in the natural environment for a long time and is affected by various climatic conditions (such as storms, floods, ice and snow, heavy fog, pollution, lightning strikes, etc.); in addition, there are other external damages (such as construction machinery damage, etc.). These factors endanger the safe operation of the line at any time. Therefore, once a failure occurs, it takes a long time to repair, resulting in different degrees of loss. It is necessary to strengthen the inspection of the line, repair and eliminate hidden dangers in time, and formulate safety measures.

Why Choose Senter Vision Intelligent Inspection Equipment for Overhead Transmission Lines?

Ø SENTER ST2303B high-resolution security camera monitor system can do remote site surveillance. It designed to be used in the place where no power electronic, no network. Because it is powered by solar panels, it communicates with computer system or mobile phone app via GSM, 2G, 3G, 4G.

Ø We use less than 20% of the cost to solve 80% of the demand pain points, significantly reduce the cost and improve the service life.

Ø The most important thing is that we can find hidden dangers in advance, such as wildfires, cranes, bird damage and all the dangers that may damage the transmission line, and then the inspection personnel can arrive at the scene in advance, thus greatly reducing the power outage rate.

zzzzsthewrht

Technical Parameter

Camera
Sensor type	Zoom: 1/4-inch CMOS (either with Day vision lens) Day Vision: 1/4 inch CMOS Night vision: 1/2-inch CMOS
Pixels	Zoom: 2 million (either with Day vision lens) Day Vision: 16 million Night vision: 2 million
Maximum resolution	Zoom: 1920 x 1080 (either with Day view lens) Day Vision: 4608×3456 Night vision: 1920×1080
Minimum illumination	Color: 0.001Lux@F1.5
Camera lens
Focal length of lens	Zoom: 3.7mm (either with Day vision lens) Day Vision: 3.7mm Night vision: 4.9mm
Lens aperture	Zoom: F2.0 (Either with Day Vision Lens) Day Vision: F2.0 Night vision: F1.65
Field-of-view angle	Zoom: V50.6°H64.3°D76.2° (either with Day vision lens) Day vision: V50.6°H64.3°D76.2° Night vision: V46°H82°D94°
Optical zoom	10x (either with Day vision lens)
Focus mode	Automatic/semi-automatic/manual
Professional Intelligence
Intelligent identification	Supports automatic identification of common hidden dangers in transmission corridors: construction equipment (tower cranes, cranes, pump trucks, excavators, bulldozers, shovels, rollers, forklifts, piling rigs, graders, gravers, insulated bucket trucks, trucks), missing fixtures (insulators with blown pieces, insulators with missing pieces, fixture pins with missing pins), smoke from hill fires (smoke, open fires), and foreign objects in conductor wires (foreign objects above the wires, foreign objects under the wires-dust-proof nets, foreign objects below the wires-reflective films), and so on.
Font-end analysis	Supports hidden danger analysis on the device side after the device has captured the hidden danger, and transmits the analysis results directly back to the back-end, shortening the vacuum period of image analysis and reducing the pressure on the back-end server.
Local storage back-end access	Support equipment to locally store the recording video, take the cycle to cover the storage mode, support the back-end at any time to access the equipment side of the video recording, reduce traffic costs
Video
Video compression standard	H.264;H.265;MJPEG
Day-to-Night Conversion	Time Zone Positioning / Optical Sensing
Wide dynamic (physics)	Support
Fog permeability	Electronically transparent fog
Digital zoom	8x (either with Day vision lens)
Signal-to-noise ratio	≥55dB
Anti-shake function	Electronic stabilization
Internet
Network protocol	HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802. 1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB2);IGMP;ARP;RTCP; RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS;NA
Wireless standard	3G/4G/5G China/lndia: LTE FDD:B1/B3/B5/B8 LTE TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 TD-SCDMAB34/B39 EVDO/CDMA:BC0 GSM:900/1800MHZ
Wi-Fi	Supported, but recommended for testing only
Functionality
Regional Focus	Supported
OSD information overlay	Support channel name, time, preset point position, PTZ coordinates, magnification, geographic location, picture
Power supply
Power supply method	Solar panel plus battery
Power consumption	Dormant power consumption: 0.03W (the device is turned on without any operation, tested after 30 minutes, only to ensure that the MCU power supply) Stationary Power Consumption: 0.17W (the device is turned on without any operation, tested after 30 minutes, the channel camera takes a shot in 20 minutes and transmits 4G data) Peak power consumption: 0.47W (the device is turned on without any operation, tested after 30 minutes, the channel camera 20 minutes a shot, the transmission of 4G data)
Solar panel/battery capacity	Standard 18V20W/12.8V10AH 30days
Power supply	Lithium iron phosphate batteries or gel batteries
Working environment
Operating temperature	-25℃~+70℃
Operating humidity	≤95%
Protection class	IP67
Framework
Shell material	Die-cast aluminum
Product Size	290mm×133mm×122mm(L x W x H)
Net weight	2.4kg
Installation method	Wall-mounted, angle-mounted
Other items
Night vision grade	Starlight Rating
Storage capacity	Optional add-on TF card 16G, 32G, 64G, 128G
Antennas	Built-in antenna
Positioning function	Support GPS
MTBF	≧30000h
Camera mounting adjustability	Omni-directional manual adjustment according to transmission line direction
Monitoring cycle	Front-end analysis of the default interval of 5 minutes a photo, timed return default 1 hour a photo, and sampling time period can be freely set; equipment to take pictures of the front-end analysis, identification of hidden problems immediately return, no hidden problems return timed return
