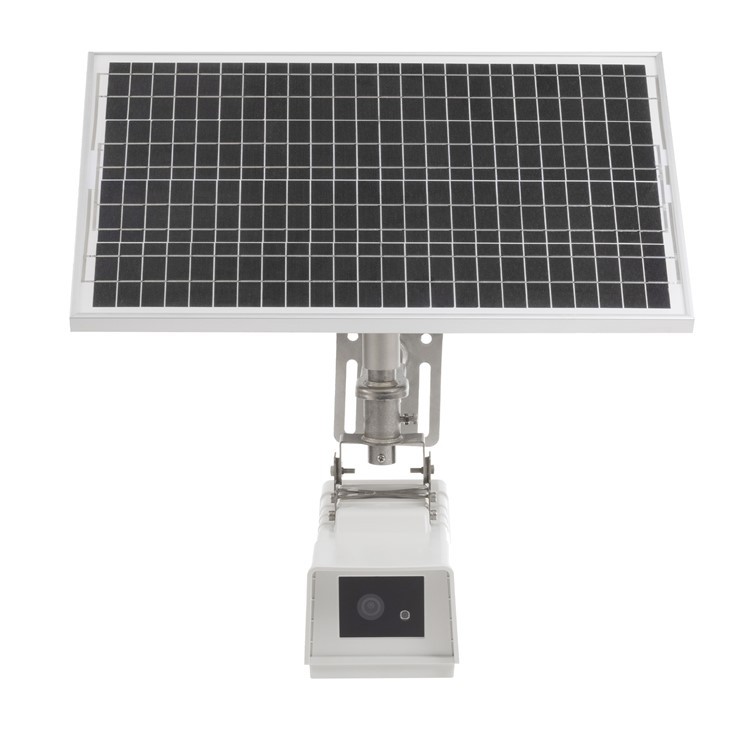

Power transmission solar wireless night vision AI camera
Power transmission solar wireless night vision AI camera
Power transmission solar wireless night vision AI camera

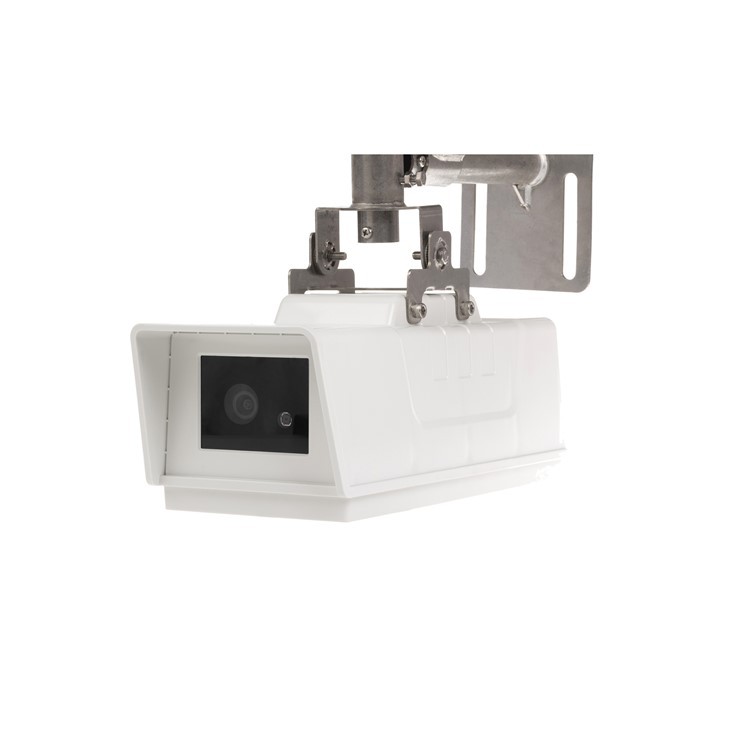

4-1

Intelligent Transmission Line Inspection

Name: Intelligent Transmission Line Inspection
Brand: Senter
SKU: 166851652

ST2303B/S V4.0 solar wireless night vision AI camera
√ Responsible the device adopts a dual-camera integrated design structure
√ Equipped with a starlight-level low-illuminance camera
√ Combined with a large-size image sensor and a digital wide dynamic range
√ Can easily control low-light environments and night scenes, and meet the needs of 24-hour surveillance
√ Can also equipped with down-view cameras, which can simultaneously monitor the transmission channel and the tower basic body
√ Collecting video/image data, automatically monitors and identifies hidden dangers and gives early warnings in time
√ Realizes the function of visualized online monitoring of transmission lines

Send Inquiry

Product Introduction

Our visual transmission line solutions are widely used in State Grid and China Southern Power Grid. We installed our front-end equipment on 30,000 transmission line towers in China. Our solutions are used to intelligently identify safety hazards in power lines and communication fibers, as well as in the surrounding environment. And it will automatically alarm to the online platform to notify workers to maintain. This greatly reduces the likelihood of accidents (reduces blackout and trip rates) and can replace manual inspections. It solves 80% of electronic surveillance problems at 20% of the cost. The comprehensive monitoring and early warning information of channel hidden dangers is pushed in real time 24 hours a day, which improves the quality of OHL inspections.

Video

Description

Application Background

Overhead transmission lines are generally several kilometers to hundreds of kilometers long. Line equipment operates in the natural environment for a long time and is affected by various climatic conditions (such as storms, floods, ice and snow, heavy fog, pollution, lightning strikes, etc.); in addition, there are other external damages (such as construction machinery damage, etc.). These factors endanger the safe operation of the line at any time. Therefore, once a failure occurs, it takes a long time to repair, resulting in different degrees of loss. It is necessary to strengthen the inspection of the line, repair and eliminate hidden dangers in time, and formulate safety measures.

Why Choose Senter Vision Intelligent Inspection Equipment for Overhead Transmission Lines

SENTER ST2303B high-resolution security camera monitor system can do remote site surveillance. It designed to be used in the place where no power electronic, no network. Because it is powered by solar panels, it communicates with computer system or mobile phone app via GSM, 2G, 3G, 4G.
We use less than 20% of the cost to solve 80% of the demand pain points, significantly reduce the cost and improve the service life.
The most important thing is that we can find hidden dangers in advance, such as wildfires, cranes, bird damage and all the dangers that may damage the transmission line, and then the inspection personnel can arrive at the scene in advance, thus greatly reducing the power outage rate.

Technical Parameter

Project		Technical parameter
Video camera		The general light lens adopts an industrial-grade high-definition gun-type camera with a standard 16 million pixel general light lens (optional, see the option table for details) The night vision lens adopts a starlight-level low-illuminance camera with a standard 2 million pixel low-illuminance lens (optional, see the optional table for details) The tower base environmental camera can be equipped with a standard 8 million pixel general light lens (optional, see the optional table for details)
Photo collection method		Automatically set the interval time/support manual capture of photos
Antenna		Built-in antenna
GPS		Support GPS, Beidou positioning
Way of communication		2G/3G/4G wireless transmission is adopted to meet the adaptation of China Telecom, China Unicom, and China Mobile. It supports the 2G, 3G, and 4G networks of the three operators, and the operator can be selected according to the on-site conditions.
Monitoring cycle		The front-end analysis photo interval defaults to 5 minutes, and the default timed return is 1 hour, and the sampling time period can be set freely; the front-end analysis after the device takes a photo, the identification of hidden dangers is immediately returned, and no hidden dangers are returned regularly.
Camera adjustment capability		Can be adjusted manually in all directions according to the line direction
MTBF		≧30000h
Check and debug		Can be inspected and debugged without disassembling the machine
Protection level		IP67
Equipment quality		≤12Kg(Including solar panels and brackets)
Power supply		Solar panel and battery (optional, see the optional table for details)
The battery is fully charged with continuous power supply		30 days
Main frame material		Polycarbonate
Operating temperature		-40℃ - +70℃
Relative humidity		5%～100%RH
Atmospheric pressure		55kPa～106kPa
Design service life of the whole machine		No less than 8 years
