Power Tower Inspection Solution
√ Omnidirectional pan/tilt zoom lens and channel camera
√ Optional down-view lens
√ Realize three-dimensional intelligent inspection of transmission line channel and body monitoring of transmission lines.
Our visual transmission line solutions are widely used in State Grid and China Southern Power Grid. We installed our front-end equipment on 30,000 transmission line towers in China. Our solutions are used to intelligently identify safety hazards in power lines and communication fibers, as well as in the surrounding environment. And it will automatically alarm to the online platform to notify workers to maintain. This greatly reduces the likelihood of accidents (reduces blackout and trip rates) and can replace manual inspections. It solves 80% of electronic surveillance problems at 20% of the cost. The comprehensive monitoring and early warning information of channel hidden dangers is pushed in real time 24 hours a day, which improves the quality of OHL inspections.
| Application Background | |||||||||||||
Overhead transmission lines are generally several kilometers to hundreds of kilometers long. Line equipment operates in the natural environment for a long time and is affected by various climatic conditions (such as storms, floods, ice and snow, heavy fog, pollution, lightning strikes, etc.); in addition, there are other external damages (such as construction machinery damage, etc.). These factors endanger the safe operation of the line at any time. Therefore, once a failure occurs, it takes a long time to repair, resulting in different degrees of loss. It is necessary to strengthen the inspection of the line, repair and eliminate hidden dangers in time, and formulate safety measures.
| Why Choose Senter Vision Intelligent Inspection Equipment for Overhead Transmission Line | |||||||||||||
ØSENTER ST2303B high-resolution security camera monitor system can do remote site surveillance. It designed to be used in the place where no power electronic, no network. Because it is powered by solar panels, it communicates with computer system or mobile phone app via GSM, 2G, 3G, 4G.
ØWe use less than 20% of the cost to solve 80% of the demand pain points, significantly reduce the cost and improve the service life.
ØThe most important thing is that we can find hidden dangers in advance, such as wildfires, cranes, bird damage and all the dangers that may damage the transmission line, and then the inspection personnel can arrive at the scene in advance, thus greatly reducing the power outage rate.
![A@BK32I}96J87SN6L]4]J`O](/Content/uploads/2022174246/202202171543473eb440b5e66b4ebd8e6eaa8348fb24be.png)
| Technical Parameter | |||||||||||||
Project | Technical parameter | |
Video camera | Channel, night vision | Channel camera uses 16 million pixel ultra-clear camera The night vision camera uses a 2-megapixel starlight-level low-illuminance camera |
Optical zoom | Optical zoom: standard 20 times (optional, see the optional table for details) Effective pixels: 2 million | |
Look down | Optional, 16 million pixel ultra-clear camera | |
Yuntai | Horizontal direction: 360° multi-turn infinite position Vertical direction: -90°～+90° With 256 preset positions Support wiper | |
Photo collection method | Automatically set the interval time/support manual capture of photos | |
Storage | Add TF card (optional, see option table for details) | |
Antenna | Built-in antenna | |
GPS | Support GPS, Beidou positioning | |
Way of communication | 2G/3G/4G wireless transmission is adopted to meet the adaptation of China Telecom, China Unicom, and China Mobile. It supports the 2G, 3G, and 4G networks of the three operators, and the operator can be selected according to the on-site conditions. | |
Monitoring cycle | The front-end analysis photo interval defaults to 5 minutes, and the default timed return is 1 hour, and the sampling time period can be set freely; the front-end analysis after the device takes a photo, the identification of hidden dangers is immediately returned, and no hidden dangers are returned regularly. | |
Camera adjustment capability | Can be adjusted manually in all directions according to the line direction | |
MTBF | ≧30000h | |
Protection level | IP67 | |
Equipment quality | ≤5kg(Excluding solar panels and brackets) | |
Power supply | Solar panel and battery (optional, see the optional table for details) | |
Main frame material | Aluminum alloy | |
Operating temperature | -40℃～+70℃ | |
Relative humidity | 5%～100%RH | |
Atmospheric pressure | 55kPa～106kPa | |
Design service life of the whole machine | No less than 8 years | |
| Application Scenarios: | |||||||||||||
Any voltage level line channel and tower monitoring.
OHL(overhead line transmission)
Prevent external damages to above-ground oil and gas pipelines
| Types of Security Hazards | |||||||||||||
1. Line channel hidden danger
Wire foreign body
External breaking/
construction machinery
Personnel activities

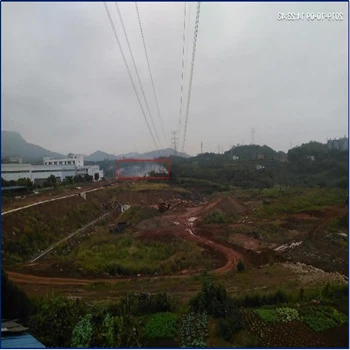

Thick smoke/wild fire
1. Line channel hidden danger

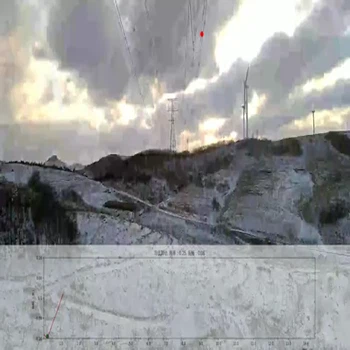

Ice detection
Missing insulator
Wire sagging
Downfall
| Installation | |||||||||||||
Two person, three steps, ten minutes
l Two person operation: One person on the ground and one person on the tower can complete the installation of the whole set of device.
l Three steps: Simple adjustment under the tower, Minor adjustment to fix on the tower, testing transferred pass on the ground
l Ten minutes: The installation of the device can be completed within ten minutes.
l After installation: engineer will do some camera setting to make it work with App and server.
| Way of working | |||||||||||||
It can be collected independently or as a fusion terminal host, and it can also be connected to a smart terminal
| Our services & Strengths | |||||||||||||
We provide partners with the industry's best products and the most close to the needs of users of the solution, with the most attractive incentive policies and cooperation programs, to help you seek to explore market opportunities, transfer them into the actual value and inject long lasting brand industry influence. Our considerate after-sales services and quality assurance system will help you solve all your worries when facing customers. We are willing to join hands with you to achieve success in the development of the Internet of things(IOT) industry.
| Shipping & Packing | |||||||||||||
l Discounted Sample
l Authentic Guarantee
l Excellent After-Sale Service
l Factory Direct Sale
l DHL Fast Delivery
l Dispatch Time: within 3 days after payment
l 24 hours hot line
| FAQ | |||||||||||||
Q: How to order and pay?
A: We accept T/T (bank transfer), Western Union / Trade Assurance / Crypto-Currency BTC/LTC/ETH/Cash.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
