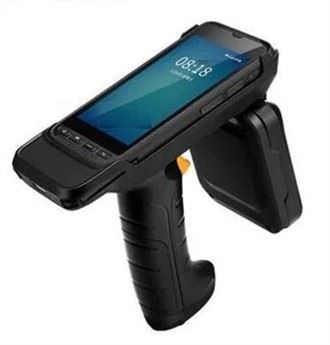

RFID PDA
Key features:
√ 4.0-inch HD screen
√ Android 10.0 system
√ 4G RAM,64GROM
√ Barcode scanner Honeywell N5703
√ NFC UHF RFID reader
| Key Features | |||||||||||||
More powerful, More Functional
More intelligent in everywhere
Advanced system: Android 10.0 operating system; quad core 2.0 GHz CPU; RAM 2G ROM 16G; 8 million camera
App: Googleplay, Free SDK
Powerful function: multi function information acquisition configuration (1D/2D bar code scanning, LF/HF/UHF RFID reader
Multi communication modes: support 3G/4G(WCDMA/GSM/LTD), WIFI, BT and many wireless communication modes
| Specifications | |||||||||||||
| Product Description | Data communication | ||||||||||||
| CPU | Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor | WIFI | Dual -band 2.4GHz/5GHz, Supporting IEEE 802 a/b/g/n/ac protpcol | ||||||||||
| RAM+ROM | 2GB+16GB | WWAN | 2G: GSM (850/900/1800/1900MHz) | ||||||||||
| EXPAND MEMORY | Micro SD(TF) Supports up to 128GB | 3G: WCDMA(850/900/1900/2100MHz) | |||||||||||
| SYSTEM | ANDROID 10.0 | 4G: FDD:B1/B3/B4/B7/B8/B12/B20 | |||||||||||
| TDD:B38/B39/B40/B41 | |||||||||||||
| BLUETOOTH | Support Bluetooth 5.0+BLE | ||||||||||||
| GNSS | Support Gps, Galileo, Glonass, Beidou | ||||||||||||
| Physical Parameter | Data collection | ||||||||||||
| Dimensions | 201.8mm×72mm×25.6mm | Barcode scanning(Optional) | |||||||||||
| Weight | <500g （Depends on device function configuration) | 1D Symbologies | Code128,EAN-13,EAN-8. Code39 ,UPC-A,UPC-E,Codabar interleaved 2 of 5,China post 25,ISBN/ISSN, Code93 ,UCC/EAN-128 ,GS1 Databar, HIBC, etc. | ||||||||||
| Display | 4.0", 480×800 resolution | ||||||||||||
| TP | support multi-touch | 2D Scanning engine | Mindeo. E483 E58 3, Newland N6601, Honeywell N6603 N5703 N6703 | ||||||||||
| Battery capacity | Rechargable polymer battery (3.8V 5000mah) removable | ||||||||||||
| 2D Symbologies | DF417,Micro PDF417, GS1 Composite,Aztec Code, Data Matrix, QR Code, Micro QR code, Maxicode, hanxin Code,etc. | ||||||||||||
| Standby time＞350 hours | |||||||||||||
| Working time＞12 hours | |||||||||||||
| Charging time＜3H, using standard power adapter and data cable | Camera(Standard) | ||||||||||||
| Rear camera | 800W pixel HD camera Support auto focus, Flash, Anti-shake, Macro shooting | ||||||||||||
| Expansion Card slot | Nano SIM card ×2, TF card × 1 | ||||||||||||
| Front camera | 200W pixel color camera | ||||||||||||
| Communication interface | Type-C 2.0 USB ×1, supporting OTG function | NFC(Optional) | |||||||||||
| POGO Pin×1 | Frequency | 13. 56MHz | |||||||||||
| Audio | Speaker(mono), Microphone, Receiver | Protocol | Support ISO14443A/B, 15693 agreement | ||||||||||
| Keypad | 38 soft and hard rubber buttons, left button ×1, right button×1 | Distance | 2cm-5cm | ||||||||||
| Sensors | Gravity sensor, light sensor, distance sensor, vibration motor | ||||||||||||
| Input | English, Pinyin, Five strokes, Handwriting input, Input Support soft keypad | ||||||||||||
| User environment | |||||||||||||
| Operating temperature | -20℃—55℃ | ||||||||||||
| Storage temperature | -40℃—70℃ | ||||||||||||
| Environment humidity | 5%RH--95%RH(no condensation) | ||||||||||||
| Drop specification | 6 sides Supports 1.2 meters drops on the marble within the operating temperature | ||||||||||||
| Rolling test | 0.5m rlling for 6 sides, can still work steadily | ||||||||||||
| Sealing | IP66 | ||||||||||||
| Accessories | |||||||||||||
| Adapter, Data cable, Protective flm, Standard Instruction manual | |||||||||||||
| Appllication | |||||||||||||
The ST917G can be used in the industries of logistics and retails:
 ● With the popularization of electronic trade, the logistics industry has achieved rapid development. Application through barcode recognition technology and RFID, SenterPDA barcode scanner can realize the rapid query and statistics of the relevant information of the goods, automatically identify the barcode of goods by handheld terminal scanning the goods, and more efficient and intelligent to complete the package. |
 ● In the retail industry, in order to achieve a high -quality service experience, in addition to the waiter's patient service attitude, efficient information management is also very important. Store associates can use Senter handheld android PDA to scan products barcodes or RFID tags to promptly check details like the number of inventory, specifications, price, discount information, etc., which can better meet customer needs, improve work efficiency and accuracy of operations. |
| Video | |||||||||||||
