Integrated Thermal & Multi-Lens Monitoring System For Power Transmission Lines

The V10-F is an advanced Integrated Smart Terminal designed specifically for the comprehensive monitoring of power transmission lines. It features a unique multi-directional lens system that simultaneously addresses the monitoring needs of the transmission channel, tower base, and near-tower blind spots. Unlike traditional single-lens devices, the V10-F integrates multiple sensors, including a Forward-Looking Lens and an Infrared Thermal Imaging Lens. This versatile solution supports intelligent functions such as wildfire smoke detection, infrared temperature measurement, and abnormal temperature alarms. It is an ideal choice for channel wildfire prevention and close-range infrared temperature measurement, delivering enhanced safety and performance for power grid inspection.

Send Inquiry

Product Introduction

If you're in need of integrated thermal & multi-lens monitoring system for power transmission lines to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.

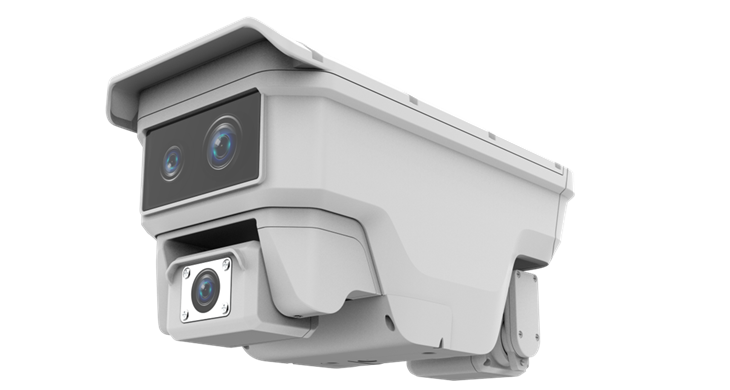

The V10-F multi-lens camera have front, rear, and down-view multi-directional lenses. The down-view lens utilizes an infrared thermal imaging lens, supporting intelligent fire detection, infrared temperature measurement, abnormal temperature alarms, and integrated thermal imaging/visible light functionality. This versatile solution is suitable for channel wildfire prevention, close-range infrared temperature measurement, delivering enhanced performance.

product-555-732

Camera
Sensor Type	Zoom: 1/2.7-inch CMOS (choose one of two lenses for day vision lens) Day Vision: 1/4-inch CMOS Rear View: 1/2.8-inch CMOS Night Vision: 1/2-inch CMOS
Pixel Count	Zoom: 8MP (choose one of two lenses for day vision lens) Day Vision: 16MP Rear View: 5MP Night Vision: 2MP
Maximum Resolution	Zoom: 3840×2160 (choose one of two lenses for day vision lens) Day Vision: 4608×3456 Rear View: 2592×1944 Night Vision: 1920×1080
Minimum Illumination	0.001Lux
Lens
Lens Focal Length	Zoom: 5.15-47.38mm (choose one of two lenses for day vision lens) Day Vision: 3.7mm Rear View: 3.3mm Night Vision: 5mm
Lens Aperture	Zoom: F1.8–F2.5 (choose one of two lenses for day vision lens) Day Vision: F2.0 Rear View: F1.05 Night Vision: F1.0
Field of View	Zoom: (choose one of two lenses for day vision lens) V69.5° (W) 7.95° (T) H: 61.5° (W) 7° (T) D69.5° (W) 7.59° (T) White Vision: V50.6° H64.3° D76.2° Rear Sight: V76.2° H101.5° D137.8° Night Vision: V48° H88° D105°
Optical Zoom	10x (choose one of two lenses for daytime use)
Focus Mode	Auto
Thermal Imaging Lens
Sensor Type	Uncooled Vanadium Oxide Infrared Detector
Resolution/Pixel Size	384*288/12μm
NETD Thermal Sensitivity	≤ 60mK@f#1.0
Professional Intelligence	Professional Intelligence
Intelligent Recognition	Identifies external hazards within transmission corridors, including construction vehicles, cranes, tower cranes, wildfire smoke, foreign objects on conductors, and bird strikes. All corridors support detection of external hazards within transmission corridors, including construction vehicles, cranes, tower cranes, wildfire smoke, foreign objects on conductors, and bird damage.
Front-End Analysis	Supports on-device hazard analysis after detection, with results directly transmitted to the backend. This reduces image analysis delays and alleviates backend server load.
Local Storage with Backend Access	Supports local video storage on devices using a looping overwrite mode. Enables real-time retrieval of device recordings from the backend, reducing data transfer costs.
Video
Video compression standards	H.264; H.265; MJPEG
Day/Night Switching	Time Zone Positioning/Light Sensitivity Detection
Wide Dynamic Range	Supported
Fog Penetration	Electronic Defog
Digital Zoom	10x (choose one of two options: daytime lens or night vision lens)
Image Stabilization	Electronic Image Stabilization
Network
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x;SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMPv1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS; NA
Wi-Fi	Supported
Features
Regional Focus	Support
OSD Information Overlay	Supports overlaying watermarks such as time, line, tower, battery status, channel name, etc.
Power Supply
Power Supply Method	Solar panels + battery
Power Consumption	Standby Power Consumption: 0.07W (Platform online without image capture) Capture Power Consumption: 0.22W (Front HD camera captures 1 image every 5 minutes and uploads to platform) Peak Power Consumption: 3.67W (All 4 lens simultaneously capture 1 image and upload to platform)
Battery Life	30 days
Power Source	Lithium iron phosphate battery
Environment
Operating Temperature	-25°C to +70°C
Operating Humidity	5%RH–95%RH
Protection Rating	IP67
Structure
Housing Material	Die-cast aluminum
Product Dimensions	261mm (L) x 128mm (W) x 128mm (H)
Net Weight	1.85kg
Mounting Method	Suitable for transmission lines of all voltage levels, supporting pole, angle iron, and round pipe mounting methods
Other Specifications
Starlight Rating	Starlight
Storage Capacity	Built-in storage: 16GB, supports expansion up to 256GB via TF card
Antenna	Built-in antenna
Location Function	Supports GPS and BeiDou positioning
MTBF	≥30,000 hours
Solar Panel/Battery Capacity	Standard configuration: 18V 60W / 12.8V 30AH
Camera Adjustability	Fully manual adjustment in all directions based on cable routing
Monitoring Cycle	Front-end analysis captures images at a default interval of 5 minutes, with scheduled uploads set to 1 image per hour. Sampling time periods can be freely configured. After device capture, front-end analysis identifies potential hazards and uploads immediately; images without hazards are uploaded on schedule.
Extended Functionality	Supports connection to auxiliary units via wired interface with the main unit.
