Optical Fiber Identifier

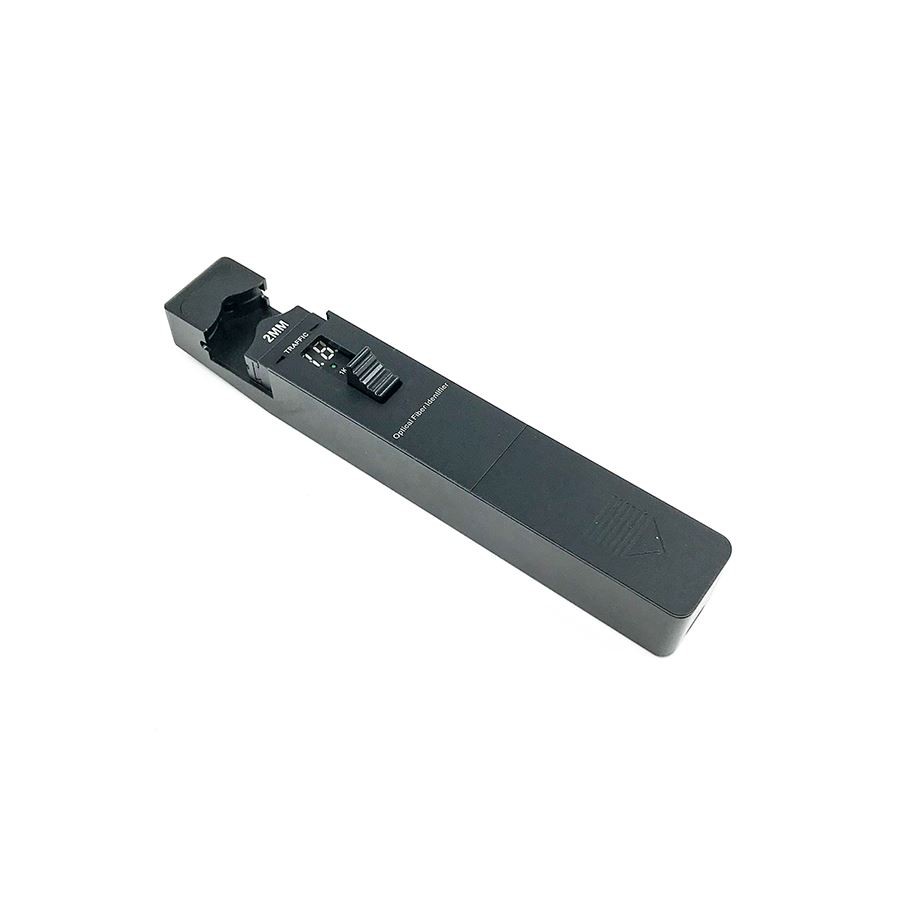

ST820B Optical Fiber Id

I. Brief Introduction

ST820B Optical fiber identifier is used to identify SM optical fibers.

II. Main features

multi adapter, easy replace

test bare fiber,

tight tube optical fiber,

optical fiber jumper

identify CW and modulated light 270HZ, 1KHZ, 2KHZ

Technical specifications

a. Identification wave length range: 800~1700nm

b. Sensitivity: -28dBm (@1550nm, bare fiber)

c. Identification signal type: CW, 270Hz±5%, 1KHz±5%, 2KHz±5%

d. Detector model: InGaAs ( 1mm, 2PCS)

e. Continuous working time:>4 hours

f. Insert loss (1550nm): Φ250μm: 1.0dB, Φ900μm:0. 5dB, Φ3mm:0. 5dB

g. Detector type: Φ250μm bare fiber, Φ900μm jacketed fiber, Φ3mm trail fiber

h. Communication signal indicator: direction indicator light + noncontinuous buzzing + signal strength indicator light

Pictures:

Package :

Our service

A：Short term delivery

B:Comprehensive and fast logistics

C:Perfect after-sale service

D:Professional technical solutions

E:Strict quality control

F:FOC sample
