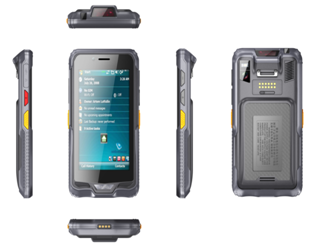

6 Inch Rugged Android Tablet PC With Barcode Scanner And HF RFID/NFC RFID Reader
ST935D 6 Inch Rugged Android Tablet PC With Barcode Scanner And HF RFID/NFC RFID Reader
Android /Windows OS Tablet PC with 4G LTE, NFC RFID reader, 1D/2D bar code scanner
Product feature:
1.Support Windows 10/Andriod 5.1 dual system;
2.Support all sizes of USB2.0 connector;
3.Support docking charger docking extension;
4.Support NXP NFC(13.56M);
5.Support GPS Navigation;
6.Support 1D/2D barcode scanner;
7.Rugged IP67 protection level;
8.Support Dragontrail glass touch panel;
9.Support wrist strap.
Applications
Logistics
Medical Treatment
Electrical Power
Gas Inspection
Purchasing Fair
Specification
Product Outlook | |||||||
| Type | Details | Standard Configuration | Optional Configuration | ||||
| Product Form | Product style | Rugged Handheld | NA | ||||
| Dimension | 185*93*20.7mm | NA | |||||
| Weight | Whole unit:380g | NA | |||||
| Color | Black | NA | |||||
| LCD | Screen Size | 5.98",16:9 (TP and Glass use full lamination technolog ) | NA | ||||
| Screen Resolution | 720*1280, 720P,IPS screen | NA | |||||
| Brightness | 430Nit | NA | |||||
| TP | Touch panel | 5point touch capacitive,G+FF,Corning Gorilla, Rigidity: 7H up, anti-scratch,TP thickness:1.1mm,COF,support glove and wet hand touch | NA | ||||
| Camera | Front | Front2.0MP | NA | ||||
| Rear | Rear 8.0MP,with flash and auto-focus | NA | |||||
| Earphone | Built-in | built inx 1 | NA | ||||
| Speaker | Built-in | built in8Ω/0.8W waterproof speaker x 1 | NA | ||||
| Mic | Built-in | sensitivity:-42db, output resistance2.2kΩ | NA | ||||
| Battery | type | Li_polyment,battery loadable | NA | ||||
| Capacity | 3.7V/5000mAh | NA | |||||
| Endurance | 6hrs(default50%volumn,default 200lumens brightness,play720PHD video) | NA | |||||
| System Hardware Configuration | |||||||
| Type | Details | Descriptions | |||||
| CPU | Type | Qualcomm 4Core 8909 | NA | ||||
| Speed | 1.1GHz | NA | |||||
| GPU | Type | adreno304 | NA | ||||
| RAM | DDR3L | 2GB LPDDR3 | NA | ||||
| ROM | Emmc | 16GB | NA | ||||
| G_sensor | Built-in | Gravity sensor | NA | ||||
| Evironmental light sensor | Built-in | Evironmental light sensor | NA | ||||
| Distance sensor | Built-in | Distance sensor | NA | ||||
| Temperature,humidity,air pressure sensor | Built-in | Temperature,humidity,air pressure sensor | NA | ||||
| E-companss sensor | Built-in | E-compass sensor | NA | ||||
| Indicator | Built-in | Power on and charging indication | NA | ||||
| Internet Connections | |||||||
| Type | Details | Description | |||||
| WIFI | WIFI Module | WIFI 802.11(b/g/n) Frequency 2.4G WIFI | NA | ||||
| Bluetooth | Built-in | BT4.0 (BLE) class1 transfer distance:10m | NA | ||||
| IrDA | Built-in | support infrared emission and reception | NA | ||||
| 3G/4G | Built-in | CMCC 5M: LTE 1/3/7/20/38/39/40/41 WCDMA 1/2/5/8 TD-SCDMA 34/39 GSM 2/3/5/8 | America: LTE 2/4/7/17/38/39/40/41 WCDMA 1/2/5/8 TD-SCDMA 34/39 GSM 2/3/5/8 | ||||
| GPS | Built-in | support:GLONASS,QZSS,GPS;Capture sensitivity-160 dBm;cold start:<30S,hot start:<28S,frequency:0.25 Hz … 10 MHz (configurable) | NA | ||||
| NFC | Built-in | NA | |||||
| Data Collection | |||||||
| Type | Details | Description | |||||
| 1D Barcode scanner | Optional | NA | Honeywell N4313 | ||||
| 2D Barcode scanner | Optional | NA | Honeywell N3680 | ||||
| Type | Details | Description | |
| power | Power on/off | x1 | NA |
| volume | Volumn up/down | up/downx2 | NA |
| barcode | Scan | scan(left and right) x2 | NA |
| HOME | System HOME key | x1 | NA |
| Connectors | |||
| Type | Details | Description | |
| Micr usb | Charge and data transfer | charge and OTG x1 | NA |
| Earphone Jack | Audio output | 3.5mm standard earphone x1 | NA |
| TF Card | Extensive external memory | Support SDHC/SDXC x1 max:64G | NA |
| SIM Card | 3G/4G SIM card | SIM card connector x1 | NA |
| POGO PIN 1 | Extend function of back dock | (12pin back panel upside)extend back dock function x1 | NA |
| POGO PIN 2 | docking charger | (4pin downside of unit)charging function x1 | NA |
| Standard Accessories | |||
| Type | Details | Description | |
| USB cable | USB cable | micro USB cable 5P L=1.2M 4 core aluminum foil shield cable | NA |
| Earphone Jack | Earphone | NA | |
| Power adaptor | standard | input:100~240VAC 50/60HZ output:5VDC 2.5A USB ,adapter (for EURO, UK, US option) | USA standard |
| EU standard | |||
| Software Configuration | |||
| Type | Details | Description | |
| OS | Operation system | Android 5.1/Windows 10 | NA |
| Reliability | |||
| Type | Details | Description | |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status | |
| Operate Temperature | -20 °C to 60 °C -4 °F to 140 °F | ||
| Store Temperature | -30 °C to 70 °C / -22 °F to 158 °F | ||
| Humidity | Humidity: 95% Non-Condensing | ||
