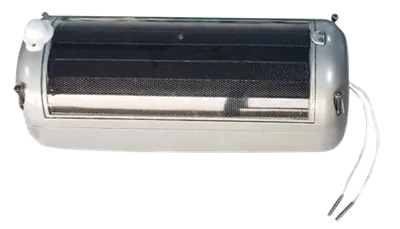

The Multi-Dimensional Conductor Sensor is a low-power, high-precision sensor based on 4G communication. It measures conductor sag, conductor galloping, and conductor wind deflection, as well as conductor temperature and conductor current.
It integrates a GNSS module for GPS positioning and time synchronization.
It includes a 485 expansion interface for measuring ambient temperature, humidity and light intensity.
Built-in rechargeable lithium battery: 9.6 V, 3 Ah. Battery expansion is available upon request.
Optional 2.4 GHz module for use as a 2.4 GHz terminal.
Built-in Rogowski coil for conductor current measurement. The coil output is amplified and converted into a proportional electrical signal. The system calculates the current via AD sampling and dedicated algorithms.
Product Features
Item |
Range & Accuracy |
Wind deflection angle / tilt angle |
±60°; Accuracy: 0.1°, Error: ±0.3° |
Longitudinal / lateral inclination |
−10° ~ +10°; Accuracy: ±0.1° |
Conductor temperature |
−55℃ ~ +150℃ |
Conductor current |
0–600 A |
Current accuracy |
5% or ±5 A |
Rated voltage |
35 kV – 1000 kV |
Applicable conductor diameter |
≤ 40 mm |
Battery capacity |
3 Ah |
Power supply |
CT energy harvesting / solar harvesting |
Operating temperature |
−40℃ ~ +85℃ |
Communication rate |
Uplink: 50 Mbps; Downlink: 150 Mbps |
Uplink standards |
4G, EDGE, GSM/GPRS |
Power protocol |
Transmission I1 Interface Protocol |
Frequency band |
2.4 GHz – 2.5 GHz |
Communication distance |
≥ 100 m |
Protocol |
IoT Micro-power Wireless Network Protocol for Power Transmission and Distribution Equipment |
Sensors, Feature List
| Module | Function |
|---|---|
| ARM Microcontroller | Main control chip |
| 9-Axis Attitude Sensor | Wind deflection measurement / Sag measurement |
| 485 Isolated Temperature & Humidity Sensor | Temperature and humidity measurement |
| Dual-channel PT100 Sensor | Temperature measurement |
| Light Intensity Sensor | Light intensity measurement |
| Current Monitoring Module | Conductor current measurement |
| CT Energy Harvesting & Power Module | Inductive energy harvesting |
| Communication Module | 4G communication |
| 2.4 GHz RF Module | Wireless communication |
| Security Encryption Module | Encryption |
| GPS Module | GPS positioning |
| Enclosure (IP65-rated) | -- |
