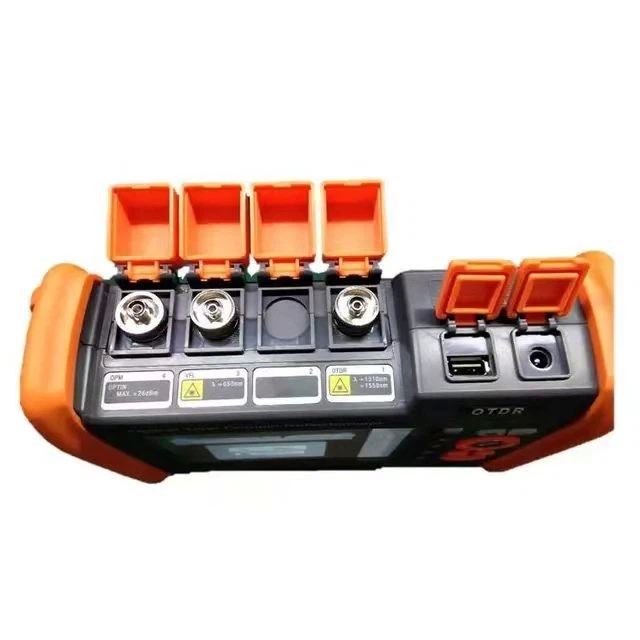

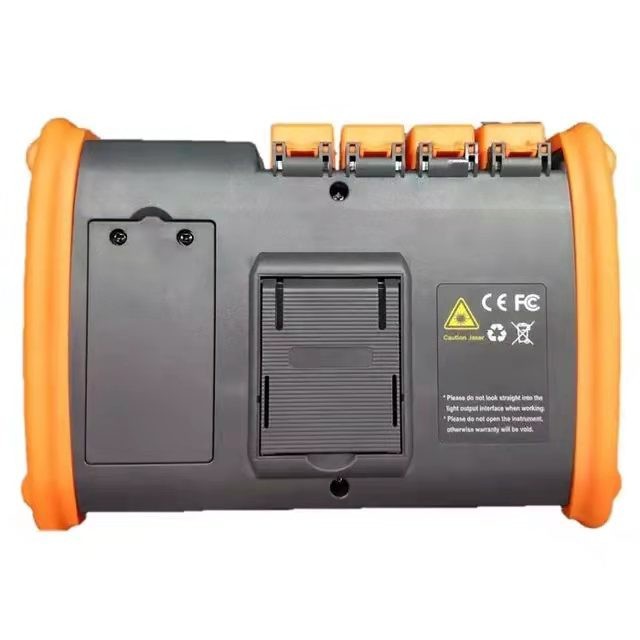

1310/1550nm 32/30db Smart OTDR Multifunctional Testing
SENTER ST3200D OTDR with Optical Power Meter VFL Light Source
WHAT ST3200D OTDR CAN DO?
1310/1550nm 26/24db OTDR testing for single mode optical fiber
OPtical power meter
VFL
Laser Source
Event map(iOLM)
USB Function
Model | ST3200D |
OTDR | |
Fiber Type | G.652 |
Wavelength | 1310nm±20nm/1550nm±20nm |
Dynamic Range | 32dB/30dB |
Event Blind Zone | 1m |
ATT Blind zone | 6m |
Test Range | 500m/1 km/2km/4km/8km/16km/ 32km/64km/12 8km/256km |
Pulse Width | 5ns/10ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1000ns/3000ns/5000ns/8000ns/10000ns/20000ns |
Ranging accuracy | ±( 0.75m+ Sample interval +0.005 % x Test distance) |
Loss accuracy | ±0.05dB/dB |
Sample Points | 16k〜256k |
Sample Resolution | 0.05m~16m |
Reflection Accuracy | ±3dB |
File Format | SOR Standard File Format |
Loss Analysis | 4-point method /5-point method |
Laser Safety Level | Class II |
Refresh Rate | 3Hz(Typ.) |
Data Storage | Internal storage： 100M (<3000 curves) ； External： 4G bit |
Connector | FC/UPC (Interchangeable SC、ST) |
Data Interface | USB、Mini-USB、10M/100M Ethernet Port |
OPM | |
Wavelength range | 800nm~1700nm |
Connector | Universal joint FC/SC/ST |
Test Scope | -50dBm〜+26dBm |
Uncertainty | ±5% |
Calibration Wavelength | 850nm/980nm/1300nm/1310nm/1490mn/1550nm/1625mn/1650nm |
LS | |
Wavelength | Consistent with OTDR output wavelength |
Output Power | ≥-5dBm |
Stability | CW, ±0.5dB/15min (Test after 15 minutes of boot-up preheating) |
Connector | FC/UPC (Interchangeable SC、ST) |
VFL | |
Wavelength | 650nm±20nm |
Output power | ≥2mW |
Mode | CW/lHz/2Hz |
Connector | FC/SC/ST |
Others | |
Display | 5.6 inch color LCD + touch screen |
Power Supply | AC/DC Adapter： Input： 100V〜240V, 50/60Hz, 0.6A Output： 12V-19V, 1.5A Li-Battery： 7.4V, 5200mAh |
Battery working hours | ≥10h |
Operating Temperature | -10°C 〜+50°C |
Storage Temperature | -40°C 〜+70°C |
Relative Humidity | 0 〜95 %, Non Condensing |
Weight | ≤1.2kg |
Size | 208/mmx 110mmx56mm |
