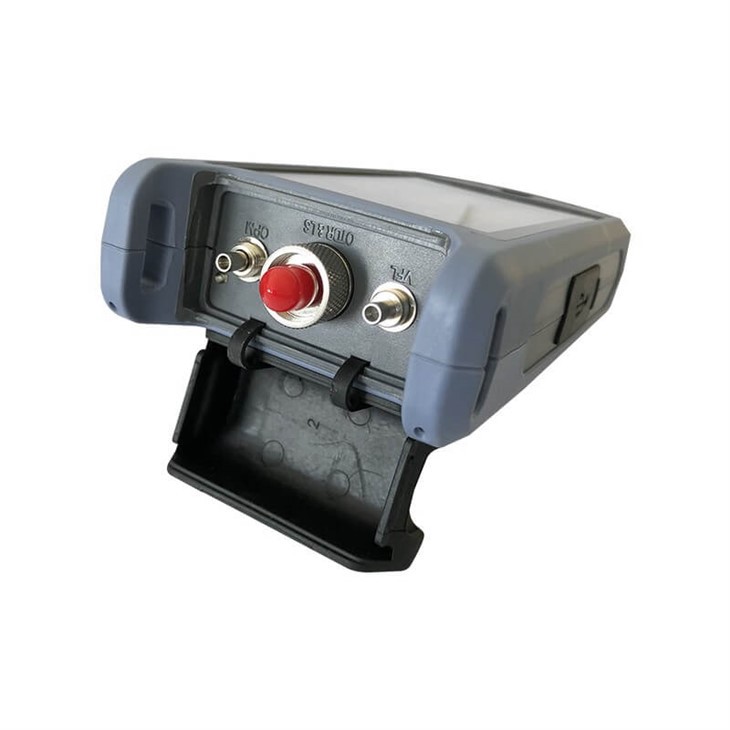

ST3200F SM OTDR 1310/1550nm with rj45 test
It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and "computer level" file management to meet various test requirements in different occasions. As a manufacturer of OTDR, we can provide OTDR with good quality, low price and better after-sales services.
Specification:
|
OTDR |
|||||||
|
Model |
ST3200F-A |
ST3200F-B |
ST3200F-C |
ST3200F-D |
ST3200F-E |
||
|
Type |
G.652 SM |
||||||
|
Wavelength |
1310/1550±20nm |
1310/1550±20nm |
1625nm |
1650nm |
850/1300nm(MM) |
||
|
DynamicRange |
26dB/24dB |
32/30dB |
22dB |
22dB |
22/24dB |
||
|
EventBlindZone |
2.5m |
||||||
|
ATT BlindZone |
8m |
||||||
|
Test Range |
500m/1km/2km/4km/8km/16km/32km/64km/100km |
||||||
|
Pulse Width |
3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1us/2us/3us/5us/8us/10us/20us |
||||||
|
Accuracy |
± (1m+Sample interval+0.005% ×Test distance) |
||||||
|
Linearity |
≤0.05dB/dB |
||||||
|
Sample Points |
16k~128k |
||||||
|
SamResolution |
0.05m~8m |
||||||
|
LossResolution |
0.001dB |
||||||
|
Loss Threshold |
0.20dB |
||||||
|
RangeResolution |
0.001m |
||||||
|
RefractiveIndex |
1.00000-2.00000 |
||||||
|
Reflection Acc |
±3dB |
||||||
|
File Format |
SOR Standard File Format |
||||||
|
Loss Analysis |
4-point method /5-point method |
||||||
|
Laser Safety |
Class II |
||||||
|
Connector |
FC/UPC (Interchangeable SC,ST) Or SC/APC |
||||||
|
Refresh Rate |
3Hz (Typ.) |
||||||
|
Multitasking |
Support |
||||||
|
OPM |
LS |
RJ45 Cable Length |
|||||
|
Wave Range |
800nm~1700nm |
Wavelength |
SamewithOTDR |
Test Distance |
≥300m |
||
|
Test Range: -70~+10dBm/ -50~+26dBm |
Laser Type |
FP - LD |
Others |
||||
|
Power |
≥-5dBm |
Display：4.3 inches 800×480 IPS TFT-LCD touch screen |
|||||
|
Resolution |
0.01dB |
Stabilitycw,±0.5dB/15min (After15min of preheating) |
|||||
|
Uncertainty |
±5% |
FC/UPC (SC,ST available) |
Power supply:AC/DCadapter Input:100V~240V, 50/60Hz, 0.6A Output: 5v 2A Lithium battery:3.7V,4000mAh |
||||
|
Frequency iden |
CW/270/330/1k/2kH |
CW/270Hz/330Hz/1kHz/2k |
|||||
|
Connector |
Universal FC/SC/ST |
Wave Recog |
Support |
Battery Working |
Continuous test> 12h |
||
|
Wave Recog |
Support |
Optical Loss Test |
Data Storage |
8GB, ≥20 thousand curves |
|||
|
VFL |
Wavelength |
Same with LS |
Data Interface |
USB TypeC |
|||
|
Wavelength |
650nm±20nm |
IL Test |
Support |
Work Temperature |
-10°C~+50°C |
||
|
Output Power |
≥10mW |
RJ45 cable tracker |
Storage Temperature |
-40°C~+70°C |
|||
|
Mode |
CW/1Hz/2Hz |
Mode |
Digital tracking |
Relative Humidity |
0〜95% Non Condensing |
||
|
Connector FC/UPC |
Distance |
≥300m |
Weight |
≤0.5kg |
|||
|
Safety Level |
Class III |
Support Online/Line PairTracker |
Size |
173mm × 109mm × 45mm |
|||
