ST327 all in one VDSL2 Tester With Optical power meter, VFL, ONU, Speed test,cable tracker function based on android system

ST327 all in one VDSL2 Tester With Optical power meter, VFL, ONU, Speed test,cable tracker function based on android system

Wifi 5G Android 7.1 OS Smart Phone + Barcode Scan + ADSL+VDSL2 + Optical Power Meter + VFL +Cable Tracing+ DMM Test + Landline Telephone+ ONU+ IPTV Test + 1 Gbps Download speed

Product Details


ST327 V2.0 Telecom Test PDA

3I9A4286



I. Summary


ST327 is a handheld intelligent PDA which is especially designed for the telecommunication field engineers operation and maintenance. It adopts mainstream Android operation system, which combine industrial smart phone, telecom test functions.

1, System Platform: Android 4.4 operating system, Telecom operators can install any application program or software.

2, Reliable and durable: Industrial grade design, economical and durable.

3, Outstanding Value: It can improve the installation and maintenance efficiency and control efforts; effectively integrate and explore the human resource value; improve the image of telecommunication installation and maintenance as well as the subscribers’ perception. (Work Force Management System)

4, Value added service: It can realize the assets management by bar code scanning and at the meantime realizes the dual management of people and goods.



II. Features

1.    1.2GHZ CPU and fast processor

2.    Strong protection for bad environment

3.    Visible 5-inch LCD in the sunlight

4.    The storage capacity is big and extensible

5.    Advanced battery installation design and strong endurance

6.    Support Google Play

7.    Support DMM, VLAN,HLOG,QLN

8.    Can install Work Force Management System

9.    Mobile phone + Telecom test function

   10. CE certificate

   11. Gigabit Ethernet port

   12. Support VLC to view IPTV channel

   13. Support 1Gbps downloads speed

   14. Support WIFI 5G

   15. Support Vectoring


III. Main functions





General Specifications

Display   screen

720X1280TFT, true   color 5 inch Capacitance touch screen

Operation   system

Built-in   Android 7.1 operation system

System

CPU is MSM8929,1.2GHZ   8 Core

RAM 2G bytes

Flash 16G bytes

Supports TF memory card (The biggest   capacity is 64G)

Bluetooth

Support 4.0

WIFI

Support IEEE   802.11b/g/n/ac

4G

GSM B3/5/8        CDMA: 1X/EVDO  BC0

WCDMA:1/5/8     TD-SCDMA:B34/B39

LTE:1/3/5/38/39/40/41

Power   supply

Rechargeable 3.8V 8200mAh polymer   battery and the max power is 3W.

Camera

8 million pixels post position   camera and support auto focus and flash function.

Dimension

181mm*87mm*45mm

xDSL   Index

xDSL test main functions

Physical Layer Info
  PPPoP Dial
  FTP Client,   Fixative IP
  Network Layer   Test
  Modem   Emulation
  PING
  Support VLAN,   HLOG,QLN
  Error Code   Statistics
  Bit Graph   Display
  BPT /SNR Data
  Modem   Parameter Setting(VPI/VCI)

ADSL Index

Standards

ITU G.994.1 (G.hs), ITU G.992.5, ITU   G.992.5 Annex L. The max distance which can be connected is 6.5km. Be   compatible with ADSL, ADSL2 and READSL.

Attenuation:

0~63.5dB

Noise margin

0~32dB

Upstream Channel Rate (interweaved /   fast mode)

0~1.2Mbps

Downstream Channel Rate (interweaved   / fast mode)

0~24Mbps

The modulating bits in the DMT   sub-channel

0~15 and each sub-channels' frequency   points

The number of error codes

CRC, HEC, FEC, NCD, OCD

Other Parameters

The output power of DSL

It can display every condition of the DSL line: lost   signal and shutdown of link

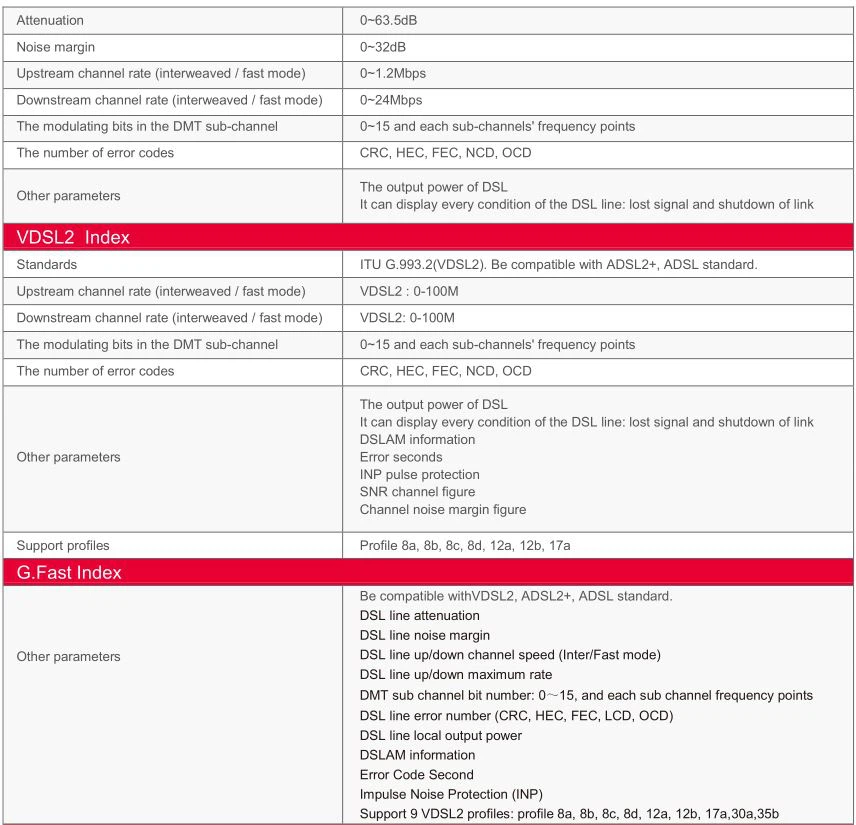

VDSL2 Index

Standards

ITU G.993.2(VDSL2). Be compatible   with ADSL2+, ADSL standard.

Upstream Channel Rate (interweaved /   fast mode)

0-100M

Downstream Channel Rate (interweaved   / fast mode)

0-100M

The modulating bits in the DMT   sub-channel

0~15 and each sub-channels' frequency   points

The number of error codes

CRC, HEC, FEC, NCD, OCD

Other Parameters

The output power of DSL
It can display every condition of the DSL line: lost signal and shutdown of link
DSLAM information
Error seconds
INP pulse protection
SNR channel figure
Channel noise margin figure

Support profiles:

Profile   8a, 8b, 8c, 8d, 12a, 12b, 17a

DMM   Test Index

DC   Voltage

-400 to 400 V; Resolution: 0.1V

AC   Voltage

0 to 290 V

Capacitance

0 to 1000nF; Accuracy: 0-10nF: ±2nF, 10nF-1000nF: ±2 %±2nF

Loop   Resistance

0 to 20KΩ; Accuracy: 0-100: ±3%±4Ω, 100-500: ±3%, 500-20 KΩ: ±2%

Insulation   Resistance

0 to 50MΩ; Accuracy: 0-1.0M: ±0.1 MΩ, 1.0-30M: ±10%±0.5 MΩ

Optical   Power Index

Wavelength range(nm)

800~1700

Photo sensing material

InGaAs

Power test range(dBm)

-70~+10 or -50~+26

Error range

±5%

Display distinguishability

Linear display: 0.1%; logarithmic   display: 0.01 dBm

 Adapters

FC, ST, SC

VFL   Index

VFL

FP-LD

Wavelength

650nm±20nm

Output   power

1mw/3mw/5mw/10mw (optional)

Connector

2.5mm universal adapter (SC, FC, ST)

Working   mode

CW or 2Hz modulation

Applicable   fiber

SM / MM

Field   Strength Meter Index(TV Signal Level Meter)

Frequency Index

Frequency   Range:5MHz~1000MHz

Accuracy   :±50×10-6 (20℃±5℃)

Resolution:10KHz

Receive Bandwidth:

Digital TV   measurement

Power   Level Range:30dBμV~120dBμV

Accuracy:±1.5dB

Resolving   Ratio:0.1dB

Standard   Modulation Format:DVB-C/ITU-T 64/256QAM

Power   Support:QAM、QPSK、COFDM

Symbol   Ratio:4MS/S~7MS/S

Receive   Bandwidth:8MHz(can set)

MER:22dB~39dB(±2dB)

BER:before   RS  1E-3 to 1E-9

Simulate TV test

Level   Range:30dBμV~120dBμV

Accuracy   :±1.5dB

Resolving   ratio:0.1dB

Input   Impedance:75Ω

Channel   Scan

Spectrum   Scan

Other test

Slope   Test

Main   line voltage test(0-100VAC/DC±2V)

Cable   Tracking Index

Test   cable type

Network   cable, twisted pair cable, telephone line, USB cable, coaxial cable.

Line   status test

Determine   open or short circuit

Voltage   polarity detection

Positive   and negative of DC voltage

Distance   of signal transmission

No   less than 3km

DC   Voltage

No   more than 48V

Landline   Telephone Index

Function

Connector with telephone line, can be used   as landline

IPTV   Test

Transmit   Quality

Curt   rate(kbps)

Transfer   rate of the IPTV service packages

IP   num(is)

Statistics of IP package gathered   in the sampling period

Losted   num

Data statistics of RTP package loss   number gathered in the sampling period

IP   Jitter

Reflect   levels of IP packet transmission quality

Net Configuration

(Support any   net encapsulation format, include TS, TCP, UDP, RTP, RTSP, PPPoE etc.)

MDI   DF

Delay   in MDI test regulated by RFC4445

MDI   MLR

Media   Package loss number in MDI test regulated by RFC4445 Source MAC: IPTV sender   MAC

Dst   Mac

STB   MAC address

Tos   TTL

IP   Protocol information

Source IP

IPTV sender IP

Dst Port

STB IP

Source Port

IPTV sender Port

Dest Port

STB Port

Rtp type

RTP Protocol information

Statistics

MLR-15

Statistical   value of MLR in 15 minutes

Losted total

RTP   packet loss total number in test cycle

Rate

Current   test cycle rate, including maximum, minimum and average statistics

1 Gbps download   speed

Function

Support Static IP, DHCP, PPPOE network configuration

Can setup download the number of threads

Can setup test time

Can setup speed test address

ONU   (Support ZTE Equipment)

ONU   Test


EPON

GPON

Registration State

none

O5 Operation

Authentication State

Registered, authenticated

Success

Output Power

+0.5~5dbm

+0.5~5dbm

Input Power

-27dbm~-8dbm

-27dbm~-8dbm

Supply Voltage

3100~3500mV

3100~3500mV

Bias Current

0~90mA

0~90mA

ONU   (ONT) Emulation

To emulate user’s ONU(ONT) to exclude the   faulty of user’s ONU(ONT)




V. Pictures of Interface & Ports

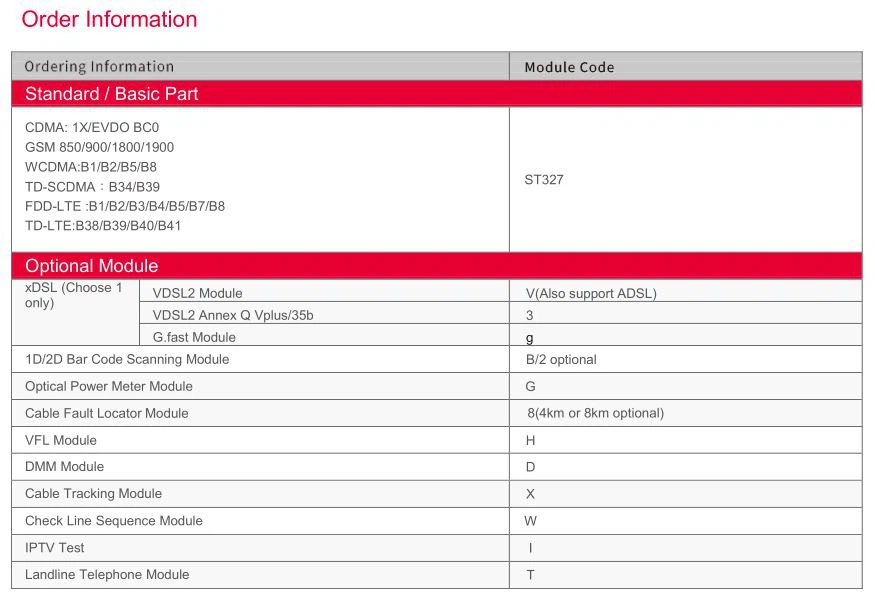

Order Information


Ordering   Information

Module   Code

Standard / Basic Part

GSM B3/5/8        CDMA: 1X/EVDO  BC0

WCDMA:1/5/8     TD-SCDMA:B34/B39

LTE:1/3/5/38/39/40/41

ST327

Optional Module

xDSL

ADSL2+   Module

A

VDSL2   Module

V

1D   Bar Code Scanning Module

B

Optical   Power Meter Module

G

VFL   Module

H

DMM   Function

D

Cable   Tracing

X

IPTV   Test

I

ONU

O

Landline   Telephone

T

Field   Strength Meter (TV Signal Level Meter)

F

1 Gbps Download Speed

Q


Note: If you choose V, it will including A function. If you choose O, cannot choose A or V and F. If you choose Q, cannot choose V, A, D, T, F, O at same time
