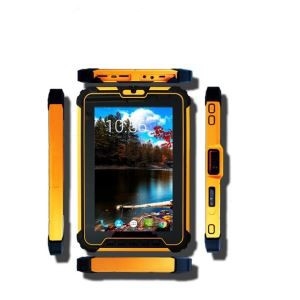

SD917V8 8inch Windows Rugged Tablet Pc
SD917V8 8inch rugged tablet pc support windows 11 home
CPU N5100
8GB/128GB 8 inch1920*1200；
capacity touch panel
Camera 2M/5M
Send Inquiry
Product Introduction
This 8-inch Windows 11 rugged industrial tablet features a brand-new design, front-facing physical buttons, and a comfortable grip for two-handed use. It utilizes an Intel Jasper Lake platform Celeron N5100 processor, boasts a high-resolution, high-brightness screen, front and rear HD cameras, dual speakers, and a variety of interfaces.
| 6 views |
|
| Tech Spec | |
| Product Form | 8 inch Rugged Tablet |
| Material | PC+TPU |
| Dimension | 236.7*155.7*20 mm |
| Weight | 910g |
| Product Color | Black |
| CPU | Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, Maximum dominant frequency 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 8GB DDR ROM 128GB Emmc |
| Operating System | Windows 11 Home Optional: Windows 10 Pro Windows 10 IOT |
| Display | Type: TFT Optional: Type: TFT Size: 8 inch 16:10 Size: 8 inch 16:10 Resolution: 1200*1920 Resolution: 800*1280 Brightness: 550cd/㎡ Brightness: 700cd/㎡ |
| Touch Pannel | 5 points tempered glass capacitive screen G+G, hardness 7H |
| Camera | Front 5.0MP Rear 8.0MP, support auto focus, with flashlight function |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Key *1 (Barcode Scanning), When there is no scanning function, it can be customized Home Key *1 |
| Speaker | 8Ω/1W Speaker *2 |
| Microphone | Single MIC, Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor |
| RTC | Built in polymer lithium ion battery, with capacity of 3V/1mAh |
| Battery (Tablet) | Removable Li-polyment Battery 5000mAh/7.6V 7 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance：10m |
| 4G | Eurasian: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 Optional, EC25-AF, 750-VA, 750-VSA |
| GPS | Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), Cold start time is not more than 60s |
| I/O Interface | USB3.0 *1 (USB A port, HOST data transmission), Type C 3.1 *1 (Charging and Data transmission, Full function Type-C) |
| ∮3.5mm Standard earjack *1 | |
| HDMI 2.0a mini *1 | |
| Three in one card holder (Micro SD card, up to 512GB; Nano SIM *1) | |
| 12PIN Pogo Pin *1 (Charging interface, USB signal connection base) | |
| Adapter | PD Fast Charge Adapter +Type-C Data Cable(1m) |
| Indicator Light | Blue indicator *1 (Blue light is always on when the machine is turned on, and off when the machine is turned off) R&G two-color lamp *1 (Low power red flickers, red is always on when charging, green is always on when full) |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Application | |||||||||||||
Animal husbandry
Military
Medical Industry
Retail
| Others | |||||||||||||
