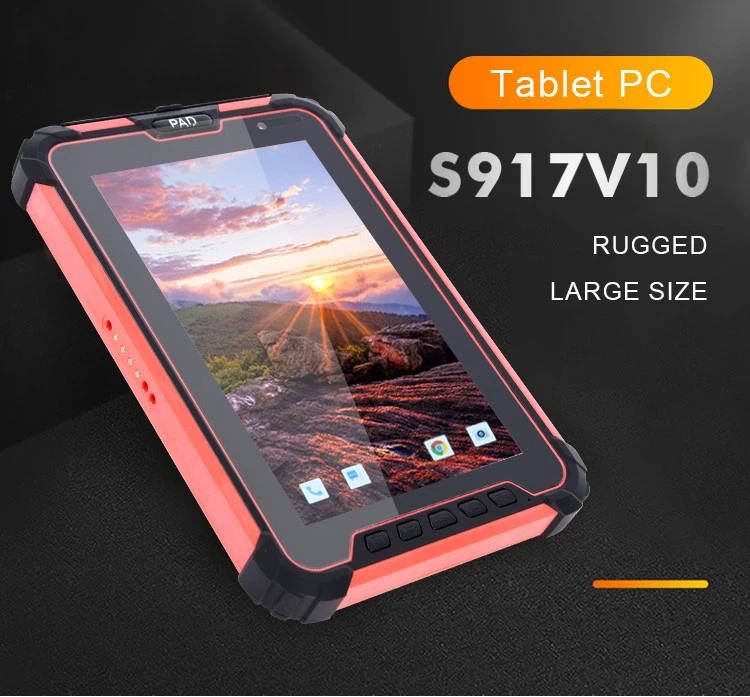

8 inch Rugged Tablet with GPS
Key Features：
√8.0-inch HD screen
√Android 10.0 system
√4G RAM, 64G ROM,4G LTE
√Qualcomm MSM8953 Octa core 2GHz
√Barcode scanning, RFID reader, Fingerprint identification
√10000mAH battery (Wide temperature battery)
| Product Video |
|
Product Description |
| Product Description | ||||
|
|
|
General Specification |
|
|
Dimensions |
232*158*22
|
|
Display |
8 inch LCD screen, 1920*1200IPS 500nits brightness standard,capacitive touch
screen
|
|
Camera |
5 million pixels front camera, 13 million pixels rear camera with automatic focus
and lighting function
|
|
Keyboard |
Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset
|
|
Headset |
3.5mm audio Interface, has MIC and Single loudspeaker
|
|
Flashlight Function
|
Support, can be used for emergency lighting
|
|
LED indicator light |
Support (ordinary flicker, Call fast flicker, missed calls, charge indicator)
|
|
Sensor |
Support Gravity sensor, electronic compass, gyroscope, ambient light and distance sensor |
|
FM |
Support |
|
Lithium Battery |
3.8V, 10000mAh temperature wide battery, Supporting working 2.5-3 hour on -20℃
|
|
Dimension |
277x183x19mm |
|
Weight |
810g |
|
OTG
|
Through OTG can meet 100M network port, network card setup, PPPoE dial-up,
web browsing. Support OTG extend RS232 serial port/485 serial port/RJ45 Serial
port
|
|
External port
|
Charge port, headphone port
|
|
USB port
|
Type-C USB port; Support to connect U-disk/Mouse/Keyboard/OTG line
|
|
HDMI
|
HDMI port
|
|
Performance |
||
|
OS |
Android 10.0 |
|
|
CPU |
Qualcomm MSM8953, 8 core, 2GHz |
|
|
RAM/ROM |
4+64GB; |
|
|
Extend Memory |
Support up to 128GB |
|
|
Communication |
|
|
WIFI |
Support IEEE802.11a/b/g/n/ac,2.4G and 5G dual band |
|
2G/3G/4G |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900MHz |
|
Bluetooth |
BT4.2,distance 10m |
|
GPS/ AGPS |
Support GPS, BDS, GLONASS, accuracy about 10 meters |
|
Certification support |
3C/FCC/CE/ROHS/UN38.3(Batterv)/MIL-STD-810G/1m-1.2 m drop certification |
|
Optional Function |
|
|
RFID |
HF RFID(Internal):
Support NFC/NXP,13.56MHZ ISO14443A,B and ISO15693 protocol, reading
distance 0-3cm,Tag support type:SR176,SRIX4K(TYPE-B),I-Code2,TI RFID
Tag-it HF-I,EM4034,Mifare Classic ETC
LF RFID:
134.2KHZ LF RFID, support ISO11784/5 protocol, support to read
IC card(FDX/HDX)
125KHZ LF RFID, support to read ID card
UHF RFID:Internal
Ray links RLM060 or ThingMagic M6E-NANO,EPC C1 GEN2/ISO
18000-6C,output power 10dBm-30dBm
Reading distance: 1 m
Ceramic antenna: 0.3db(25*25*4mm)
|
|
Barcode |
1D Laser Scanner Index(Internal):
Honeywell N4313 or Zebra EM1350
2D Barcode Scanner Index(Internal):
Newlands EM3096 Honeywell N3680
Motorola SE4750 Honeywell N6603
|
|
Fingerprint |
Type: TCSIST
|
|
Far infrared meter reading
|
Working frequency 37.9K
|
|
User Environment |
|
|
Working Temperature |
-20°C~+60°C |
|
Storage Temperature |
-40°C~+60°C |
|
Humidity |
5%-95% relative humidity(no condensation) |
|
IP Level |
IP68 |
|
Drop Grade |
Drop resistance from 1.2m |
|
Product application |
Our industrial tablet can be used in military, animal husbandry and other fields:
●Rugged tablets can serve as portable communication terminals for battlefield communication and networking. They can transmit and share data through wireless networks, achieving real-time command and control, and GPS functions can be used for real-time scheduling and positioning |
● Industrial tablets can record and manage data related to animal husbandry, such as animal identity, health information, and feeding plans. By using specific livestock management software, farm owners or livestock professionals can easily record and view relevant data to monitor and manage the health of livestock herds
|
||
