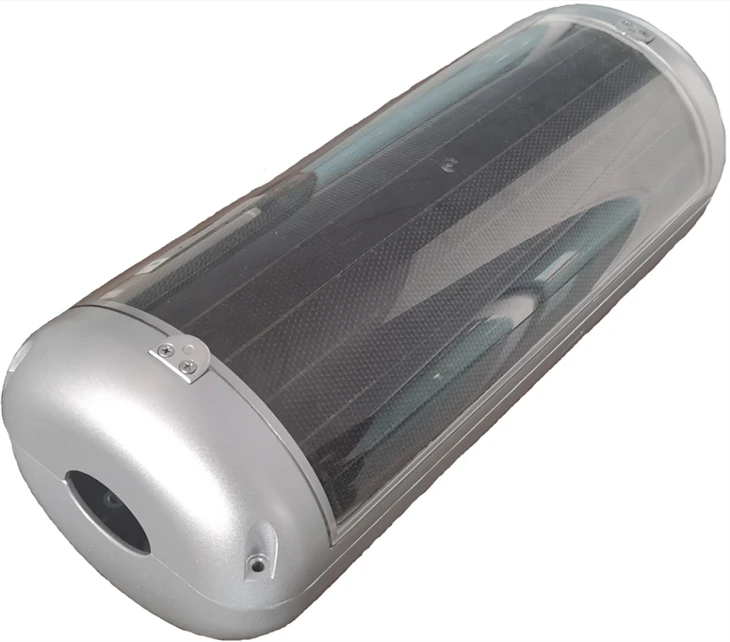

35KV Transmission Line Fault Monitoring Device, IP66, Remote Alarm & Data Logging

If you're in need of 35kv transmission line fault monitoring device, ip66, remote alarm & data logging to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.

Functions and Features:

Automatically detect, collect, and store power frequency ammeter traveling wave current waveform data for transmission line lightning strikes or various non-lightning strike conditions (tree obstructions, wind-induced wildfires, floating debris, etc.);

Automatically record high-precision GPS clock;
High-precision time synchronization module timing function;
Sending waveform data and clock data to the central station in real time;
Regularly sending self-test information of the equipment, including working pressure,working temperature, GPS validity, etc;
Support remote parameter modification and program upgrade function;
The power supply mode is based on the conductive frequency current induction;
With line power outage maintenance restart after normal work ability.

The precision fault location device for overhead distribution lines consists of a main control unit (CPU module), high-speed signal acquisition unit, GPS/Beidou time synchronization module, 4G communication module, photovoltaic power supply module, power management module, and other components. It collects fault traveling wave signals, records precise time stamps, and transmits data to the system backend in real time via the 4G module.

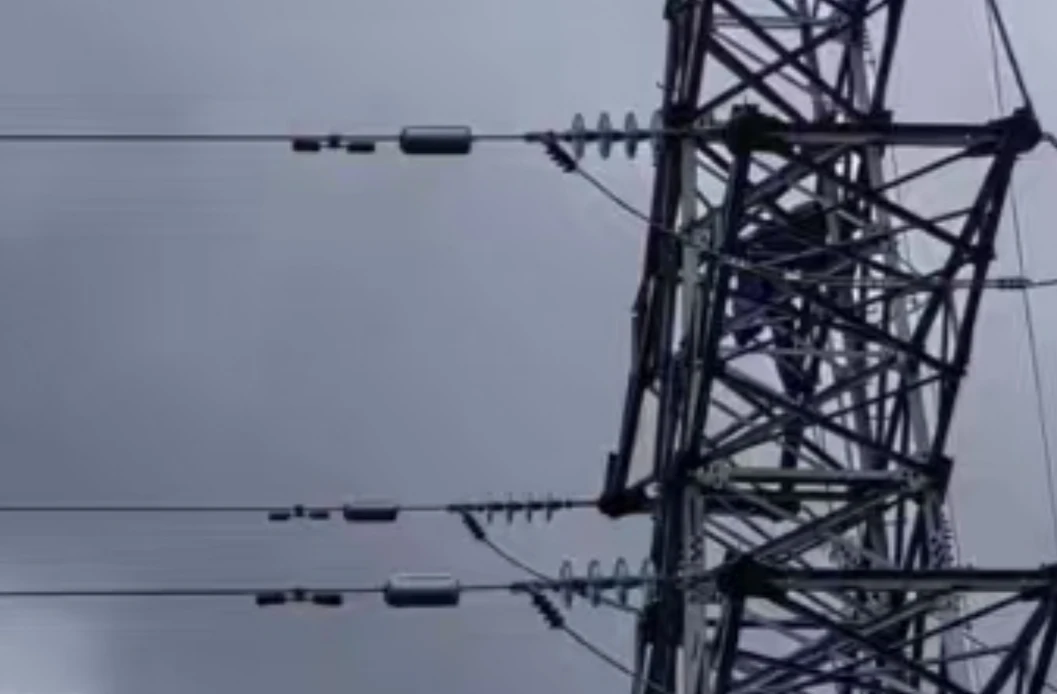

Installation

Live-line installation (no power outage required)

One device set per installation point

Each set includes three location devices installed on phases A, B, and C to collect fault waveforms and transmit data to the backend for analysis and precise fault location

The system backend supports data storage, processing, and analysis. Equipped with a 4G global communication module, the device transmits data wirelessly to the backend. Through backend analysis and algorithms, it enables online monitoring of overhead distribution lines and precise fault location. Built on a B/S architecture, the backend is deployed on cloud servers, providing dedicated user space. Users can access the monitoring software anytime, anywhere via the Internet or mobile APP to view line operation status.

Current Monitoring

View installed fault location devices and monitoring data via search and query functions in the data management interface.

Fault Alarm

The system supports configuring user-specific GIS maps based on on-site line conditions. Operators can access the monitoring interface via the control center or web browser to view real-time operation status of overhead distribution lines. When a fault occurs, the system highlights the fault line, displays an alarm popup with the fault location, and automatically sends SMS alerts to relevant operation and maintenance personnel.

Event Waveform Display

View transient traveling wave waveforms captured by fault location devices from the double-ended event list. Waveform data reflects line operation status and fault location details.

Alarm Records

The system automatically pinpoints fault points and sends notifications via SMS or APP push to operation and maintenance personnel, facilitating daily monitoring and maintenance. Historical fault data can be filtered via the search function in the alarm list.
