S117 UHF RFID Reader By Bluetooth Connection To Android Phone

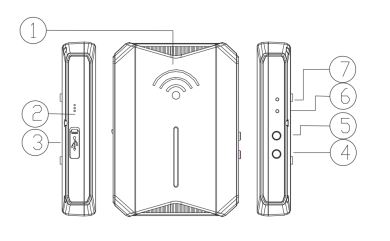

 1

Ultra-high frequency RFID read/write area

Radio Frequency signal sending and receiving area

 2

Buzzer

Sound indication

 3

USB interface

Charge and communication port

 4

Function button

Command button

 5

Switch button on/off

Power on or off button

 6

Bluetooth status indicator

Connection status indication

 7

Charging/power indicator

Charging indicator/remaining battery indicator

System

Based on Android OS, and can provide SDK

Reliability

MTBF (Mean Time Between Failures)：5000 hours

Safety

Support RFID encryption module

Protective Grade

Drop

Resistance to 1.2m Natural Drop

Protective Grade

Waterproof, dustproof IP 65

Communication mode

Bluetooth

Support Bluetooth 4.0, cooperate with APP or SDK to realize user's information exchange

Type C USB

Data Communication by USB Connection

UHF RFID reading

Working frequency

840-960MHz（Customized on demand frequency）

Support Protocol

EPC C1 GEN2、ISO 18000-6C or GB/T29768

Output Power

10dBm-30dBm

Reading distance

Effective reading distance of standard white card is 6 meters

Working Environment

Working temperature

-10℃～+55℃

Storage temperature

-20℃～+70℃

Humidity

5%～95% no condensation

Indicator

Charging  Electric quantity Tricolor indicator

When full power, the green indicator is always on; when part of the power, the blue indicator is always on; when low power, the red indicator is always on.

Bluetooth Connection Status Indicator

Bluetooth status is unpaired while flash is slow; Bluetooth status is paired when flash is fast.

Battery

Battery capacity

4000mAh

Charging current

5V/1.8A

Charging time

Charging time is about 4 hours

External Discharging

By identifying type C OTG line, external discharge can be realized.

Physical

I/O

Type C USB port

Key

Power key, backup key

Size/Weight

116.9mm×85.4mm×22.8mm/260g
