8 Inch Rugged Tablet With High Precise GPS

8 Inch Rugged Tablet With High Precise GPS

ST907V3.0 8 inch android rugged tablet with LF HF UHF RFID reader Octa core 2GHZ CPU,Android 7.1os,IP67,RFID Reader,Barcode scanner 3G/4G,WIFI,BT4.0,GPS,1200*800IPS,IP67,1D laser barcode Overview ST907V3.0-HG8 is a powerful industrial tablet pc. "H" stands for NFC RFID reader....

Product Details

ST907V3.0 8 inch android rugged tablet with LF HF UHF RFID reader

      Octa core 2GHZ CPU,Android 7.1os,IP67,RFID Reader,Barcode scanner

3G/4G,WIFI,BT4.0,GPS,1200*800IPS,IP67,1D laser barcode

Overview

ST907V3.0-HG8 is a powerful industrial tablet pc. "H" stands for NFC RFID reader. "G" is GPS,"8” is 2D barcode scanner. You can choose the different module you need.The device has 8 inch 1200*800 IPS screen and high performance capacitive touch. ST907V3.0 adopts Qualcomm MSM8953 Octa core 2GHz CPU and Android 7.1 operation system. With best possible battery performance, as well as the comprehensive data capture options, including high-performance 1D/2D scanning, LF/HF/NFC/UHF RFID reading, you can find this easy-to-deploy device an exceptionally valuable helper for your workers to increase their efficiency and productivity. With its highly customisable ability, enterprises can deploy this single device in many areas, including industrial manufacturing, logistics management,warehouse management, asset management, animal management and etc.



Product Description



Features



Advanced system

Android 7.1 operating system; CPU MSM8953, 8 core, 2GHz CPU; RAM 4GB ROM 64GB, Micro SD 128G

Visible under strong light

8 inch LCD screen, 1200*800 IPS capacitive touch screen

Powerful function

Multi function information acquisition configuration (1D/2D bar code scanning, LF/HF/UHF RFID reader, fingerprint identification)

Multi communication modes

3G/4G, WIFI, Bluetooth and many wireless communication modes

Certification

CCC/CE/ROSH/IP67/MIL-STD-810

Product specification

SPCIFICATION LIST

Standard Funcation

Operate system

Android 7.1

CPU

MSM8953, 8 core CPU, 2GHz

RAM

RAM:4GB FLASH:64GB

Extended Storage

Micro SD, Maximum 128G

USB port

5 pin MicroUSB; Support to connect U-disk/Mouse/Keyboard/OTG line

HDMI

HDMI port

OTG

Through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend RS232 serial port/485 serial port/RJ45 Serial port

External port

Charge port, headphone port



Protection Grage

Industrial Protection Grade

IP67

Drop Grade

Drop resistance from 1.2m



Wireless Communication

Bluetooth

Support 4.0

GPS

GPS+BDS +GLONASS;

Qualcomm GPS 3m

WIFI



Support IEEE 802.11a/b/g/n/ac

2G/3G/4G LTE

GSM 850/900/1800/1900   B5/B8/B3/B2

WCDMA B1/B2/B4  2100/1900/1700

TD-SCDMA B34/B39

FDD-LTE: B1/B3/B5/B7/B8  2100/1800/850/2600/900

TDD-LTE :

Band38:2570 MHz - 2620 MHz

Band39: 1880 MHz - 1920 MHz

B41:2555-2655MHz

B40/:2300-2400MHz B38/B39/B41/B40/  B38/B39/B40/B41



Physical Parameters

Display Screen

8 inch LCD screen, 800*1280 standard,1920x1200  IPS screen optional, capacitive touch screen

Keyboard

Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset

Camera

5 million pixels front camera, 13 million pixels rear camera with automatic focus and lighting function

Weight

780g

Rechargeable Lithium Battery

3.8V, 10000mAh



Optional function

Barcode Scanning

1D Laser Scanner Index(Internal):

Honeywell N4313 or Zebra EM1350

Scanning speed: 104 times/second+12 times/second (two way scanning)

Scanning distance: 2.5cm-114.3cm

Scanning angle: 47±3°(default) /35±3°(reduced code)

2D Barcode Scanner Index(Internal):

Newlands EM3096

Honeywell N3680

Motorola SE4750

Identification ability: 1D, 2D, OCR

Scanning angle: rotate 360°, incline±50°, deflection ±50°

Field of View: Horizontal 36°, vertical 23°

Depth of field: 4cm-23.5cm

Environmental luminance: 0~100,000 LUX

RFID

HF RFID(Internal):

Support NFC/NXP,13.56MHZ ISO14443A,B and ISO15693 protocol, reading distance 0-3cm,Tag support type:SR176,SRIX4K(TYPE-B),I-Code2,TI RFID Tag-it HF-I,EM4034,Mifare Classic ETC

LF RFID:

134.2KHZ LF RFID, support ISO11784/5 protocol, support to read IC card(FDX/HDX)

125KHZ LF RFID, support to read ID card

UHF RFID

Internal

Ray links RLM060 or ThingMagic M6E-NANO,EPC C1 GEN2/ISO 18000-6C,output power 10dBm-30dBm

Reading distance: 1 m

Ceramic antenna: 0.3db(25*25*4mm)

Far infrared meter reading



Working frequency 37.9K





Applications

Automatic

Military

Power Electronic

Hospital,Automotive

Industrial manufacture

Logistics management

Warehousing

Field Service

GAS







Packaging & Shipping

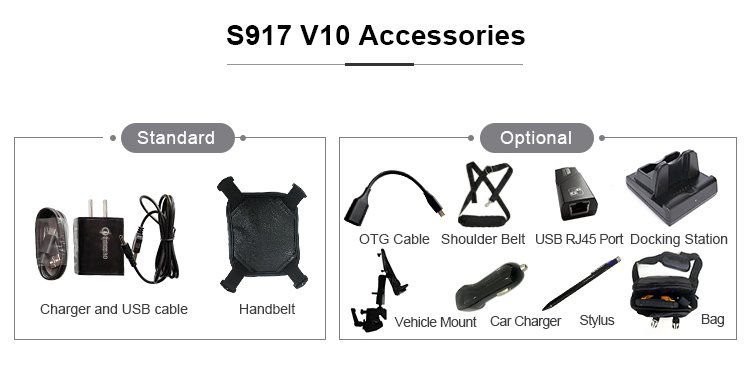

Accessories

Standard

Charger

Standard

battery

Standard

usb line

optional

handheld belt

optional

earphone

optional

OTG Line

optional

Car charger

optional

mounting holder

optional

USB-RJ45 connector



Shipping

We will shipment goods within 2 work days for sample order.

24 hours hot line: 86-13864445371






Our Services



Payment terms: T/T 100%

warranty: one year

Discounted Sample

Authentic Guarantee

Excellent After-Sale Service

Factory Direct Sale

DHL Fast Delivery

Dispatch Time: within 3 -5 days after payment

24 hours hot line: 8613864445371





Company Information



  Shandong Senter Electronic Co., Ltd., located in state-level New & Hi-Tech development zone of Zibo city, is a high technology enterprise applying itself to provide communication test instruments and comprehensive network monitoring solutions. It was founded in1996, there are 360 staffs now, Senter covers an area of 20,000 square meters.

     Senter have passed the ISO9001 international quality management system certification, now is the “High Technology Enterprise”, “Software Enterprise ”, “Center for Post-doctoral studies ”, “Zibo Communication Maintenance Instruments Engineering Technology Research Center ” and “The national Intellectual Property Pilot Units”, and has the honor to get “Shandong Provincial Outstanding Private Science and Technology Enterprise”, “China's Patent Shandong Star Enterprise”, Senter have six functional departments and two business divisions, and have New technology R&D center in Shenzhen.

    Android operate system IP67 rugged tablet PC and industrial PDA as data acquisition intelligent terminals with optional barcode laser scanner and UHF NFC RFID functions are popular in industrial manufacturing, logistics management, warehouse management, public security, power electronics, GPS locations.There are many size for your choice from 4 inch,5 inch,7 inch ,8inch to 10 inch. The goods are popular in USA, UK,Russia,Spain,Chile with CE,ROHS,IP67,FCC certificate.

     SENTER persists in “Profession, Innovation, and Quality” as its development strategy and take “Build National Brand” as its target, always keep up with industry development and customer requirements, SENTER has already become an industrial main force with national brand spirit. Until now products are exported to more than 50 countries. SENTER won more than 55 patents, 17 software copyrights, about 20 enterprise standard records, also undertook 15 scientific plans from country and province government and 2 national scientific projects, and was listed as “Innovative and high-growth enterprise” of Zibo City in the first 30 enterprises.

    Becoming international famous communication maintenance solution provider is the best vision of Senter, with fast development of global information industry, only continuous science and technology innovation and first-level technology can make new and greater contribution to fast development of information industry.


-1-2



FAQ



Q1: Does the  IP67 Rugged handheld Tablet PC can read QR code and common 1d bar codes? Support UHF RFID Europe standard?

A1: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...

Yes,support America and Europe UHF RFID Standard.

Q2: What is the estimate delivery time?

A2: Factory usually need 1-3 working days to prepare sample order, around 10-25 working days for bulk order .



Q3: What is your payment term?

A3: We accept T/T, Western Union, Paypal, Escrow.



Q4: Do you offer OEM service?

A4: OEM service is available in our factory, Could you tell us which is suitable for you please: special design, customize specification, logo silk print or customize retail boxes? But for OEM, we would require MOQ 100-500 units according to your OEM requirements.



Q5: Can i get a sample to test with a good price?

A5:Yes ! every clients with one time opportunitiy to get a sample with the same price for volume order.
