ST917 4.5 inch Handheld terminal with barcode scanner 1D 2D
Send Inquiry
Product Introduction

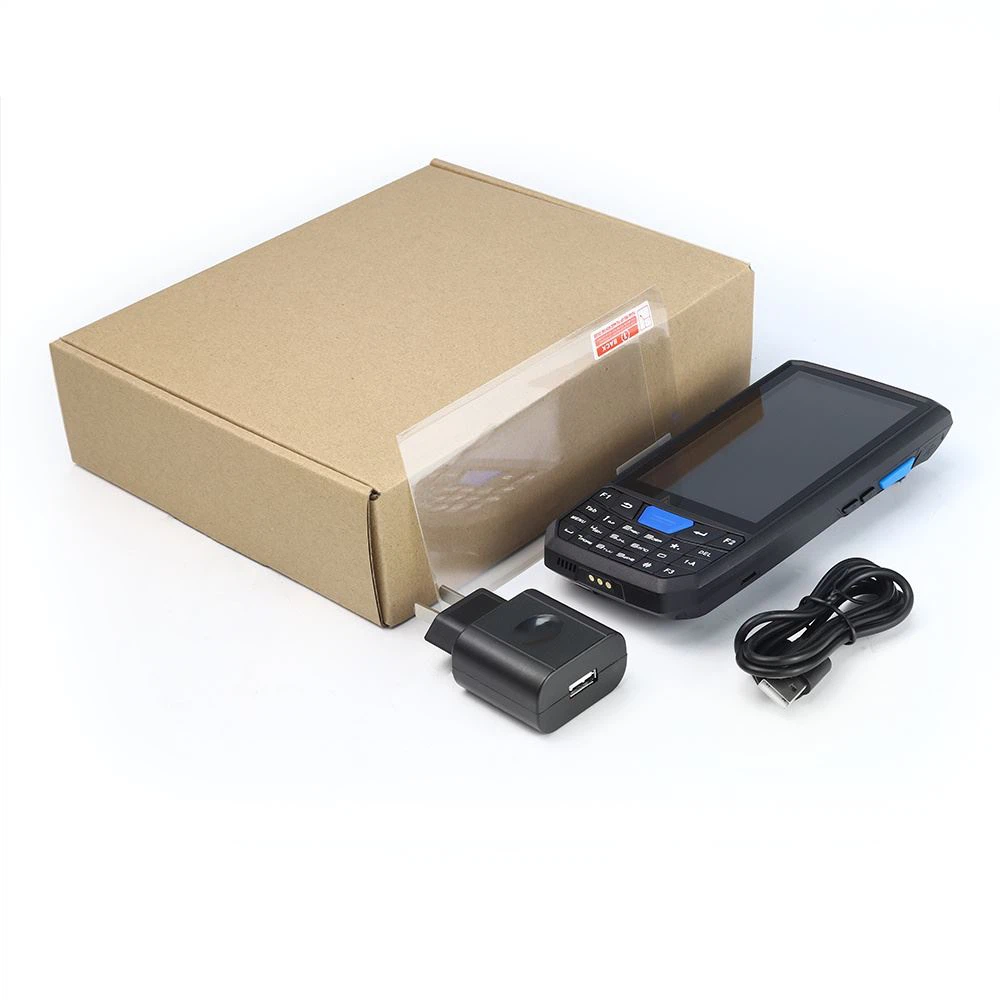

ST917 4.5 inch Handheld terminal with barcode scanner 1D 2D
| OS | Android 8.1 | |
| LCD | 4.5 inch | |
| CPU | Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor | |
| RAM/ROM | RAM 2G ROM 16G | |
| Expand memory | Micro SD(TF card) up to 128G | |
| Data communication | ||
| WIFI | Dual-band 2.4GHz and 5GHz, supports IEEE 802 a/b/g/n/ac protocol | |
| 2G/3G/4G | 2G：GSM（850/900/1800/1900MHz） 3G：WCDMA（850/900/1900/2100MHz） 4G：FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 | |
| Bluetooth | Supports Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 m | |
Specification:
| Performance | ||
| OS | Android 8.1 | |
| LCD | 4.5 inch | |
| CPU | Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor | |
| RAM/ROM | RAM 2G ROM 16G | |
| Expand memory | Micro SD(TF card) up to 128G | |
| Data communication | ||
| WIFI | Dual-band 2.4GHz and 5GHz, supports IEEE 802 a/b/g/n/ac protocol | |
| 2G/3G/4G | 2G：GSM（850/900/1800/1900MHz） 3G：WCDMA（850/900/1900/2100MHz） 4G：FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 | |
| Bluetooth | Supports Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 m | |
| Physical parameter | ||
| Dimension | 166mm*77.5mm*22mm | |
| Weight | 500g | |
| Display and camera | 4.5 inch IPS color display with resolution 480*854 Rear camera: 8MP HD camera, support auto focus, flash, anti-shake, macro shooting | |
| TP | Corning Gorilla glass, supports multi-touch and supports gloves and wethands | |
| Battery capacity | Rechargeable polymer battery (3.8V 4200mah) removable Standby time >350 h Working time > 12 h Charging time ＜4h , using standard power , adapter and data cable | |
| Communication interface | Type-C USB *1, OTG | |
| Audio | Speaker (mono), Microphone, Earpiece | |
| Keypad | Support touch screen soft keypad and physical keypad | BMP, JPG, GIF, PNG |
| Sensor | Gravity Sensor and vibration motor | |
| Language/input method | ||
| Input | English, pinyin, five strokes, handwriting input, support soft keypad | |
| Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, etc. | |
| User environment | ||
| Operating temperature | "-20℃ - 55℃ | |
| Storage temperature | "-40℃ - 70℃ | |
| Environment humidity | 5%RH--95%RH(no condensation) | |
| Drop specification | 6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature | |
| Rolling test | 500×0.5m rolling for 6 sides | |
| Protection level | IP66 | |
