Barcode Scanner Rugged Pda Industrial Grade

Performance

Octa core

CPU

Cortex-A53 Octa-core 64-bit 2.0GHz

high-performance processor

RAM+ROM

3GB+32GB Standard

Supports up to 4GB+64GB

Expand memory

Micro SD(TF) Supports up to 128GB

System

Android 9.0

Data communication

WLAN

Dual-band 2.4GHz / 5GHz,

Supporting IEEE 802 a/b/g/n/ac protocol

WWAN

2G：GSM（850/900/1800/1900mhz）

3G：WCDMA（850/900/1900/2100mhz）

4G：FDD:B1/B3/B4/B7/B8/B12/B20

TDD:B38/B39/B40/B41

Bluetooth

Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS

Transmission distance 5-10 meters

GNSS

Support Gps, Galileo, Glonass, Beidou

Physical parameter

Dimensions

159mm×75mm×124mm

Weight

＜500g

(Depends on device function configuration）

Display

5.7 inch IPS color display with resolution 720*1440

TP

Corning gorilla glass, Supports multi-touch

Supported gloves and wet hands

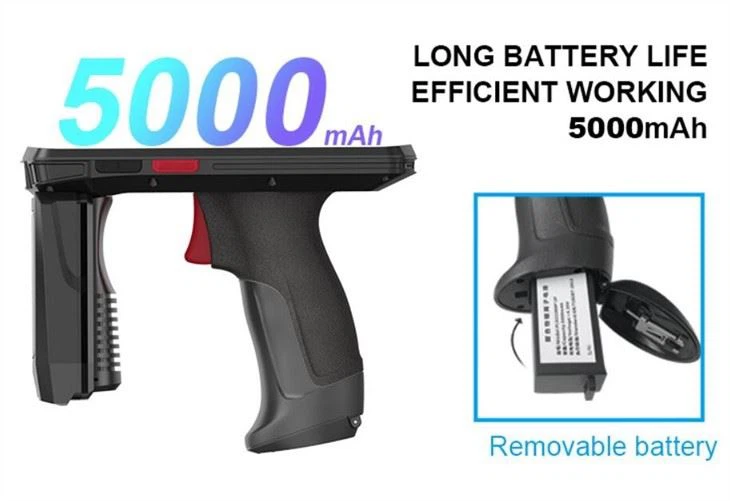

Battery capacity

Rechargeable polymer battery (3.8V 5000MAh) removable

Standby time >350 hours

Working time > 12 hours

Charging time 3-4H, Using standard power

adapter and data cable

Expansion

Card slot

PSAM x 2, Nano SIM card x 1 , TF card × 1

Communication interface

Type-C USB x 1, OTG

Audio

Speaker (mono), Microphone, Earpiece

Keypad

Power button, Volume +/- button,Scan button × 2

Handle scan button ×1

Sensors

Gravity sensor, Light sensor, Proximity sensor,

Vibration motor

Barcode scanning (Optional)

2D Imager scanner

Honeywell N3603

2D

Symbologies

PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,

Maxicode,Hanxin Code,etc.

UHF

Engine

Engine CM2000-1, based on Impinj Indy R2000

Frequency(CHN)

920-925MHz

Frequency(USA)

902-928MHz

Frequency(EHR)

865-868MHz（ETSI EN 302 208）

Frequency(Other)

Other multinational frequency standards (can be customized)

Protocol

EPC C1 GEN2 / ISO18000-6C/6B

Antenna

Circularly polarized antenna (4dBi)

Power

30dBm, support +5dBm ~ +30dBm adjustment

Distance

0-13m

Reading speed

>200 tags per second (circular polarization)

Note:*Card reading distance and group reading rate are related to the actual environment

Camera

Rear camera

13MP HD camera,Support auto focus,

Flash, Anti-shake, Macro shooting

Front camera

2MP color camera

NFC (optional)

Frequency

13.56MHz

Protocol

Support ISO14443A/B, 15693 agreement

Distance

2cm-5cm

Language/input method

Input

English, Pinyin, Five strokes, Handwriting input, Support soft keypad

Language

Language packs in Simplified Chinese,

Traditional Chinese, English, Korean, Japanese, Malaysian,etc.

User environment

Operating temperature

-20℃ - 55℃

Storage temperature

-40℃ - 70℃

Environment humidity

5%RH--95%RH(no condensation)

Drop specification

6 sides Supports 1.2 meters drops and 30 times

to the concrete within the operating temperature

Rolling test

500×0.5m rolling for 6 sides

Accessories

Standard

Adapter, Data cable, Protective film,

Instruction manual

ST917B feature:

- Reading distanse is 0 -13m based on the UHF tags type and size.

- Protocol EPC C1 FEN2/ ISO 18000-6C

- Front Camera is 2MP colorful camera while rear camera 13MP HD camera

- 2D scanning honeywell engine

- PSAM 2pcs,micro SIM 1pcs,TF x 1pc

- Battery os 3.8v 5000MAh

- CPU is Cortex-A53 Octa-core 64bit 2.0GHz

- ROM + RAM: 3GB +32GB or 4 GB+42GB

High-speed operation performance:
With android 9.0 operating system, matching 64 bit quad core 2.0GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.
Excellent identification ability :
Fully support 1D and 2D barcode scanning,NFC(optional).
Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.7 inch IPS (720x1440) Work even with water or Gloves.
Abundant means of data transportation(option):
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial grade durability:
IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof,dustproof provide long time using without fatiguet.
HD Camera:
Front 2 megapixel camera,Rear 13 megapixel camera, is convenient for client to collect all kind of images and video.
Multiple extensions:
Support GPS , AGPS and Beidou compass navigation.
Always-available wireless connection:
Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.
UHF:
Antenna:Circularly polarized antenna (3dBi)
Power:30dBm, support +5dBm ~ +30dBm adjustment
Distance:0-13m
Reading speed:>200 tags per second (circular polarization)
