Rugged Industrial Android Tablet
Product Description
Advanced system: Android 8.1 operating system; CPU Qualcomm Snapdragon SDM450, 1.8GHz CPU; RAM 4GB ROM 64GB, Micro SD 128G

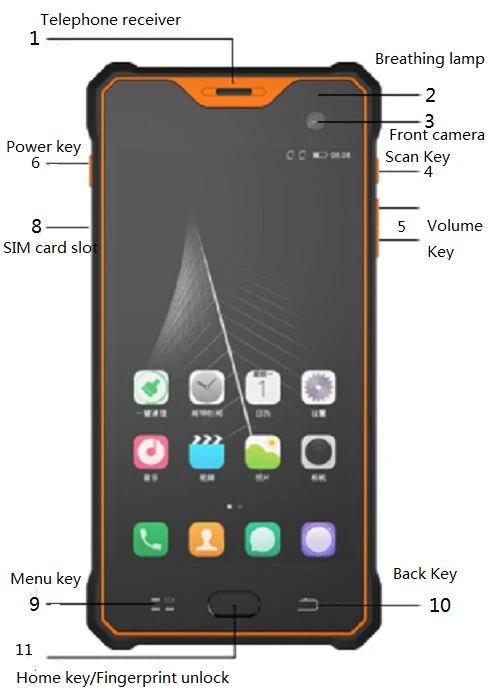

Visable under strong light: 5.5 inch LCD screen, 1920*1080 IPS capacitive touch screen
Powerful funtion: multi function information acquisition configuration (1D/2D bar code scanning, LF/NFC/UHF RFID reader, fingerprint identification)
Multi communication modes: support 4G, WIFI, BT and many wireless communication modes
Strong battery life: more than 600 hours of continuous standby
Details
Specification
| Standard function | |
| Operating System | Android 8.1 |
| CPU | CPU Qualcomm Snapdragon SDM450, 1.8GHz CPU |
| GPU | Qualcomm® Adreno™ 509 GPU |
| RAM | RAM: 4GB FLASH: 64GB |
| Extended Storage | Micro SD, Maximum 128G |
| USB port | 5 pin MicroUSB; Support to connect U-disk/Mouse/Keyboard/OTG line |
| OTG | Through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend RS232 serial port/485 serial port/RJ45 Serial port |
| External port | Headphone port |
| Protection Grade | |
| Industrial Protection Grade | IP65 |
| Drop Grade | Drop resistance from 1.2m |
| Wireless Communication | |
| BT | BT4.1 (BLE) class1 transmission distance：10m |
| GPS | Default GPS: GPS,10m |
| WIFI | Support IEEE 802.11a/b/g/n/ac (2.4G and 5G bands) |
| 2G/3G/4G LTE | CDMA 1X/EVDO BC0 GSM 850/900/1800/1900 WCDMA B1/B2/B5/B8 TD-SCDMA B34/B39 FDD-LTE B1/B3/B5/B7 TD-LTE B38/B39/B40/B41 |
| Optional function | |
| Barcode Scanning | 1D Laser Scanner Index(Internal): Honeywell N4313 Scanning speed: 104 times/second+12 times/second (two way scanning) Scanning distance: 2.5cm-114.3cm Scanning angle: 47±3°(default) /35±3°(reduced code) |
| 2D Barcode Scanner Index(Internal): Optional modules: Newlands EM3296, or Honeywell N3680, or Honeywell N6603 Identification ability: 1D, 2D, OCR Scanning angle: rotate 360°, incline±50°, deflection ±50° Field of View: Horizontal 36°, vertical 23° Depth of field: 4cm-23.5cm Environmental luminance: 0~100,000 LUX | |
| RFID | NFC RFID(Internal): Support 13.56MHZ ,ISO14443A，B, ISO15693 Protocol，Support Mifare card， reading distance 0-3cm |
| LF RFID: In Jacket , 134.2KHZ LF RFID, support ISO11784/5 protocol, support to read EM, TEMID, TK cards and compatible cards IC card(FDX/HDX) In Jacket, 125KHZ LF RFID, support to read ID card | |
| UHF RFID: In Jacket , Working frequency: 902-928MHz or 865-868 MHz (M2600, Impinj R2000 chip) Reading distance: no more than 6m | |
| Pistol grip | With internal batteries and scan button (4800mAh battery inside) |
Function and Application
Our Company
Shandong Senter Electronic Co., Ltd. was established in 1996, 25 ＋YEARS ODM/OEM！
Commit to becoming an International Renowned Industry IOT Solution Provider!
PROFESSIONAL MANUFACTURER OF RUGGED TABLET AND HANDHELD INDUSTRIAL PDA
Our products mainly used in logistics, warehousing,electricity,telecommunications, inspection and other industries.
Our Services & Strength
We provide partners with the industry's best products and the most close to the needs of users of the solution, with the most attractive incentive policies and cooperation programs, to help you seek to explore market opportunities, transfer them into the actual value and inject long lasting brand industry influence. Our considerate after-sales services and quality assurance system will help you solve all your worries when facing customers. We are willing to join hands with you to achieve success in the development of the Internet of things(IOT) industry.
RFQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.We can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can I choose multiple functions into 1 device?
A: Yes, you can choose multiple fuction into one device, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)/Fingerprint/ Bar code scanner/High-precise GPS.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union by Trade Assurance.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24-36 Months, and the price for the warranty extension is 5-10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences.
