PDAs 2D long distance reader
System Configuration
Processor | Octa-core 2.0GHz high-performance processor |
Operating system | Android 9.0 |
Memory (RAM+ROM): | 2GB +16GB, optional 3GB + 32GB/4GB + 64GB/6GB + 128GB |
SIM | Single SIM card |
Expansion slot | Micro SD slot (up to 256GB) |
Display screen | 4 inches, resolution of 800*480 IPS |
Touch screen | Industrial capacitive screen, supporting wet-hand operation/glove mode/multi-touch/gesture operation |
Camera | 8 megapixels rear camera, optional 13 megapixels optional with auto focus and PDAF supported |
Flashlight | 800mA flashlight |
Keyboard backlight | White |
Keyboard | IMD wear-proof 26 keys, wear-proof, internal transparent industrial IMD keyboard |
Battery | 3.6V lithium battery, with 5900mAh, detachable |
Audio | Built-in microphone |
Charging mode | Type-C charging, the maximum charging power of 5V/2.4A |
Prompts | High power horn/scanning prompt LED/charging prompt LED/vibration prompt |
Vibrating motor | Built-in vibrating motor |
Sensor | G-sensor, proximity sensor, light sensor, geomagnetic sensor, and gyroscope |
Intercom function (optional) | Supporting one-button PTT calls |
Structure parameters
Dimension | 168mmx71mmx33mm |
Weight | 342g (including battery) |
Communication Transmission
Wireless wide area network (Network frequency) | Domestic & Eurasian version 2G：B2/B3/B5/B8 3G：WCDMA:B1/B5/B8，CDMA BC0，TD-SCDMA:B34/B39 4G：FDD-LTE:B1/B3/B5/B7/B8/B20,TDD-LTE:B34/B38/B39/B40/B41 North American version 2G：B2/B3/B5 3G: B1/B2/B4/B5, CDMA BC0/BC1 (America) 4G：B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41 |
Wireless wide area network (Data service) | GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD -LTE/FDD-LTE |
Wireless local area network | Wi-Fi 802.11a/b/g/n/r/ac (dual-frequency Wi-Fi: 2.4G+5G) Wi-Fi 5G PA amplifier |
Bluetooth | Bluetooth 5.0, supporting BLE |
GPS | GPS/AGPS/Glonass/BDS/Galileo/QZSS |
Operating environment
Supported languages | Android standard interface, Java, secondary development SDK, API and DEMO |
Working temperature | -30℃ ~ 50℃ |
Storage temperature | -40℃ ~ 70℃ |
Humidity | 0-95% (Non-condensing) |
Drop specification | Multiple drops to concrete floor from the height of 1.5m |
Roller drop specification | 0.5m rolling of 500 rounds (equivalent to 1,000 impacts) |
Protection level | IP65 |
Electrostatic protection | ±15KV (air discharge), ±8KV (contact discharge) |
NFC (Optional)
Frequency | 13.56 MHz |
Reading distance | Within 30mm |
Communication protocol | ISO14443A/14443B/15693 |
Input/output Interface
USB interface | 1port, with a 2pin charging interface |
Charging interface | Type-C, with headset function |
OTG interface | Support |
Peripheral devices and accessories
Standard accessories | USB cable, Power adapter, Hand strap, Wrist strap |

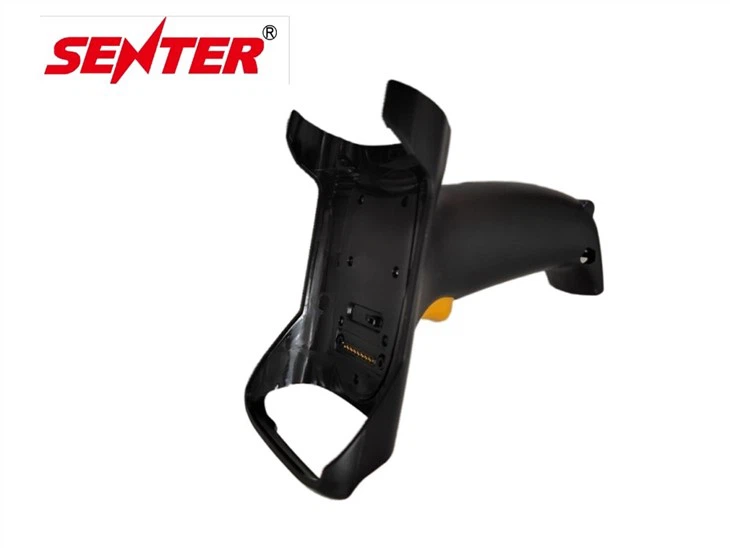

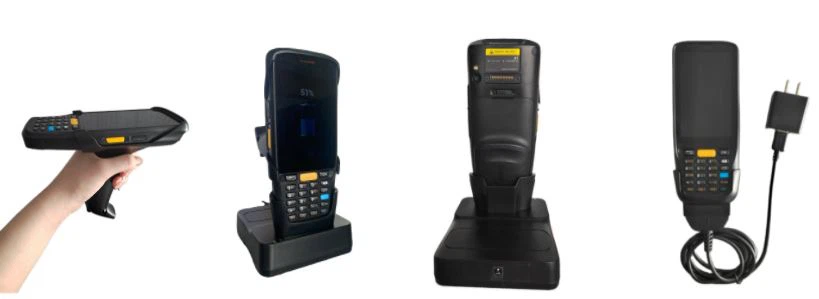

Optional accessories | Single cradle, 4-slot device cradle, pistol grip, Carry case, Bottom charging cable |
Market Application
Logistics
l Cold storage warehousing management
l Cold storage inventory management
Health care
l Vaccine traceability
l Drug traceability
l Blood bag management
The products can be shipped by almost all kinds of courier services company such as DHL/TNT/Fedex/UPS and EMS,you can also contact with us for the details.
Our servicesPayment terms: T/T 100%
Discounted Sample
Authentic Guarantee
Excellent After-Sale Service
Factory Direct Sale
DHL Fast Delivery
Dispatch Time: within 3 -5 days after payment
Payment terms: T/T 100%
Authentic Guarantee
Excellent After-Sale Service
Factory Direct Sale
DHL Fast Delivery
Dispatch Time: within 3 -5 days after payment
1.Are you manufacturer?
Yes,we are manufacturer profession in thermal printer,pos machina,barcode scanner etc;
2.Would you provide SDK for me?
Yes,we offer free SDK if order sample.
3.What is the minimum order mobile data terminal android?
one sample order is acceptable,if require OEM.We can confirm further.
4.What the after sale service mobile data terminal android?
a.Our all products will provide 1 year warranty.
b.if there is no Man-made problem,we will replace or repair for your freely.1% extra device and spare parts will be provided when bulk order mobile data terminal android
If you're in need of rugged industrial pda scanner android9.0to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
Hot Tags: PDAs 2D long distance reader, China, manufacturers, factory, low price, buy
