OTDR With 7 Inch Touch Screen

Name: OTDR With 7 Inch Touch Screen
Brand: Senter
SKU: 186950328

ST3200H series OTDR:
• 7 inch capacitance touch screen,which integrates 9 modules.
• With excellent intelligent hardware and software design, the accuracy of short fiber test and auto-matic test is higher.
• It is equipped with rich Ether-net test (Ping/PPOE, etc), support APP control.

Send Inquiry

Product Introduction

SENTER OTDR, Fusion Spclier,Telecom test PDA ,Optical Fiber Testers series products

Send Inquiry Now

1. OTDR Series

ST3200F Mini OTDR with 4.3inch screen

ST3200H Advanced OTDR with 7inch screen

1. SM or MM or SM+MM Optional

2. P2P test and 1:64 Pon Splitter test Optional

3. Live fiber test/online test Optional

4. Integrate OTDR, OPM, VFL, LS, Event map, iOLM, Loss Test and RJ45 Cable Length/Line Sequence/Cable Tracking Test

5. Bluetooth Remote Control by Mobile Phone Optional

1. • ST3200F series OTDR adopts 4.3 inch capacities touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and "computer level" file management to meet various test requirements in different occasions.

• ST3200F series are used to measure the length, loss, connection quality and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering construction, maintenance and emergency repair test, and production measurement of optical fiber and cable.

ST3200F Series
PN	Image	Model	Specifications
Mini OTDR with 4.3 inch Touch Screen		ST3200F-A	1310/1550nm 26/24dB
		ST3200F-B	1310/1550nm 32/30dB
		ST3200F-C	1625nm 22dB
		ST3200F-D	1650nm 22dB
		ST3200F-E Multimode	850/1300nm 22/24dB
		ST3200F-F	1310/1550nm 24/22dB
		ST3200F-H	1610nm 22dB

Click here, More Details--ST3200F Mini OTDR

2. ST3200H series is used to test the optical fiber length,loss and connection quality,and used in the engineering construction,link maintenance test,They are mainly used in urban trunk, bone trunk network and metropolitan area network.

● 7 inch screen Key + touch operation mode ● Detection of online test Caution function

● Report printing Files batch processing ● Multi wavelength simultaneous test ● Results automatic analysis

ST3200H OTDR with 7 inch touch screen
NO	Image	MODULE	Specification
		Advanced OTDR
1		ST3200H-A	1310/1550nm 32/30dB
2		ST3200H-B	1310/1550nm 35/33dB
3		ST3200H-C	1310/1550nm 38/36dB
4		ST3200H-D	1310/1550nm 42/40dB
5		ST3200H-E	1310/1550nm 45/43dB
6		ST3200H-F	1310/1490/1550nm 32/30/30dB
7		ST3200H-G	1310/1490/1550nm 37/35/35dB
8		ST3200H-H	1310/1550/1625nm 32/30/30dB
9		ST3200H-I	1310/1550/1625nm 37/35/35dB
10		ST3200H-J	1310/1550/1650nm 32/30/30dB
11		ST3200H-K	1310/1550/1650nm 37/35/35dB
12		ST3200H-L	1310/1550/1625/1650nm 37/35/35/35dB
13		ST3200H-M	1310/1490/1550/1625nm 37/35/35/35dB
14		ST3200H-N	850/1300nm 26/28dB
15		ST3200H-O	850/1300/1310/1550nm 26/28/35/33dB
16		ST3200H-P	850/1300/1310/1550nm 26/28/37/35dB
		PON OTDR (Detect 1:64 Splitters)
17		ST3200H-P1	1310/1550nm 37/35dB
18		ST3200H-P2	1625nm(filter) 38dB
19		ST3200H-P3	1650nm(filter) 38dB
20		ST3200H-P4	1310/1550/1625nm 38/36/36dB
21		ST3200H-P5	1310/1550/1625nm 40/38/38dB
22		ST3200H-P6	1310/1550/1625nm 42/40/40dB
23		ST3200H-P7	1310/1550/1650nm 38/36/36dB

Click here, More Details--ST3200H Advanced OTDR

2. Fusion Splicer Series

fusion splicer series

Fusion Splicer Series

We supply Clad Alignment Fusion Splicer and Core Alignment Fusion Splicer for different optical fiber application stages, FTTH, FTTX and so on, and suitable for trunk fiber, jump fiber, pigtail fiber, bare fiber and so on.

Click to get more details	Type	Splicing and heating time	Display Screen	Size
ST3100A	6 motors Core Alignment	6s splicing, 18s heating	5.0 Inch Screen	155144155mm
ST3100D	4 motors Clad Alignment	6s splicing, 20s heating	4.3 Inch Screen	157136140mm
ST3100F	4 motors Clad Alignment	7s splicing, 18s heating	4.3 Inch Screen	20012395mm
ST3100C	4 motors Core Alignment	8s splicing, 18s heating	4.3 Inch Screen	138163140mm
ST3100B	4 motors Clad Alignment	8s splicing, 18s heating	3.5 Inch Screen	125105 113mm

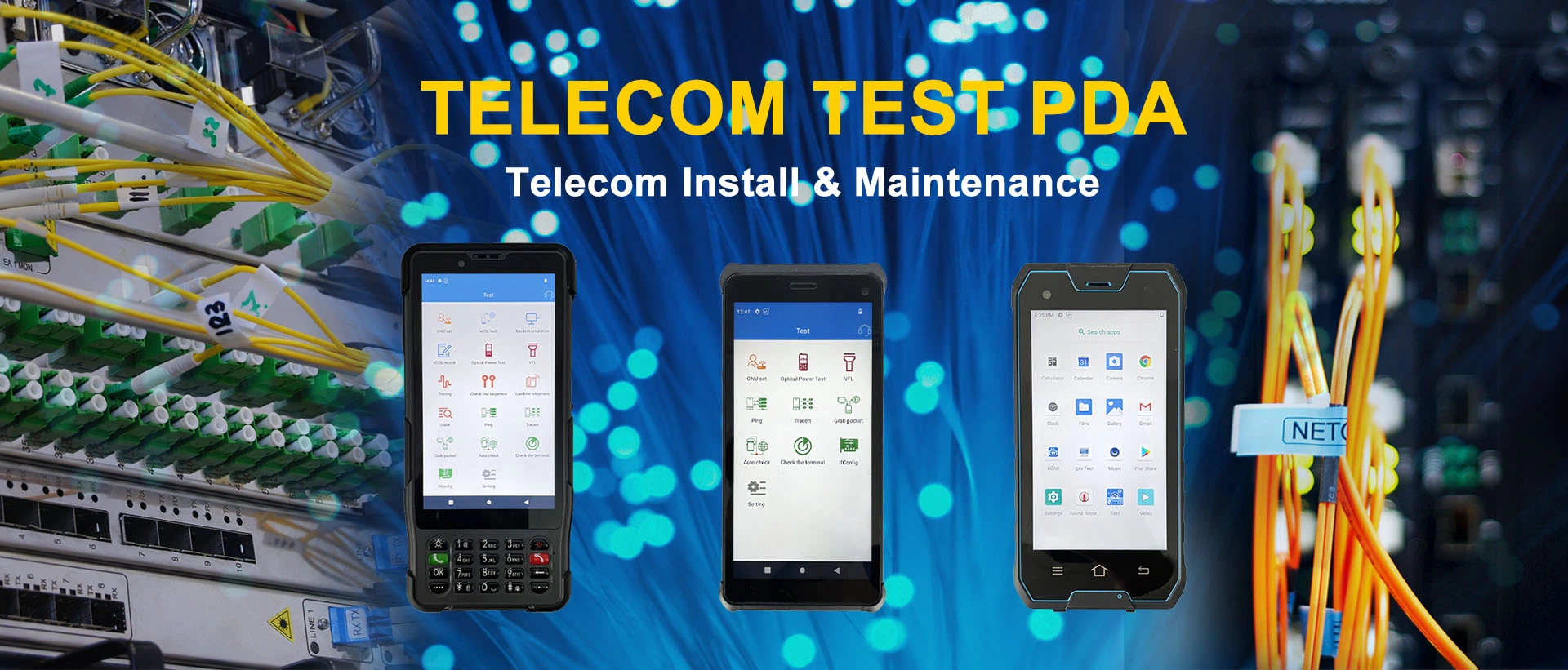

3. Telecom Test PDA series

Telecom Test PDA Series

Telecom test PDA is based on android mobile phone platform, designed for meeting entire network requirement, whose functions including xDSL test, LAN test, optical power test, visual fault locator, cable tracing, check line sequence, HDMI, IPTV, DMM test, TDR test, landline telephone test, and Gigabit speed test, 2.5G speed test, WIFI 6 speed test, WIFI analyzer, OTDR and TDR.It is a hand-held comprehensive test equipment for the operation and maintenance of the entire network of operators.

Telecom test PDA can test many kinds of connect mode, including XDSL, LAN, Optical fiber. This device can not only emulate the user's PC to test the broadband IP line or PPPoE dial-up through the user Modem, but also can be used to verify the connectivity of the broadband IP network and the problem of the user Modem,or eliminate problems caused by user's PC malfunctions that leads to failing login web pages.

We have S337 V7, S357 and S6 model for your choice:

Comparison Items	Comparison Items	S357 V3 WL S6(No SIM card)	S357 (5G PDA ) GSM Version	S337 V7 (Copper+Fiber)
Comparison Items	Comparison Items	S357 V3 WL S6(No SIM card)	S357 (5G PDA ) GSM Version	S337 V7 (Copper+Fiber)
Product Overview	Appearance



	Speedtest result	WIFI:1700mbps; WIRE : 2200mbps	WIFI: 1700mbps;WIRE：2200mbps	WIFI: 920mbps; WIRE：1900mbps
Basic Characteristics	Basic OS	Android 13	Android 13	Android 12
	Network band	No	5G GSM Version (global system for mobile) Sub-6: n1/2/3/5/7/8/12/14/20/25/28/30 /38/40/41/48/66/71/77/78 LTE:B1/2/3/4/5/7/8/12/13/14/17/ 18/19/20/25/26/28/30/32/38/40 /41/42/43/48/66/71 WCDMA:B1/2/4/5/6/8/9/19	4G LTE: FDD-LTE: Band 1/3/5/7/8/20/28 TDD-LTE: Band 38/40//41(2496MHz~2690MHz)
	CPU	8 CORE 2.4GHz	8 CORE 2.4GHz	8 Core CPU, 2GHz
	WIFI Test	Support WIFI 2.4, WIFI5, WIFI 6 (Dual antenna 160M bandwidth )	Support WIFI 2.4, WIFI5, WIFI 6 (Dual antenna 160M bandwidth )	Support WIFI 2.4, WIFI5, WIFI 6 (80M)
	WIFI Signal Analysis(Optional)	Optional(Support WIFI 2.4, WIFI5, WIFI 6)	Optional(Support WIFI 2.4, WIFI5, WIFI 6)	Optional(Support WIFI 2.4, WIFI5)
	Screen size	6 inch,	6 inch	5.5 inch
	Screen resolution	2160*1080 TFT	2160*1080 TFT	1920x1080 TFT
	Memory	RAM：6G	RAM：6G	RAM：4G
	Memory	Flash：128G	Flash：128G	Flash：64G
Protection Performance	Waterproof	IP65	IP65	IP65
Protection Performance	Drop test	1.2 meter drop resistance	1.2 meter drop resistance	1.2 meter drop resistance
Appearance	Numeric Keypad	No	No	YES
Appearance	Portable Wrist Belt	YES	YES	YES
External device interface	Ethernet port	Two Gigabit Ethernet ports(2.5G+2.5G)	Two Gigabit Ethernet ports(2.5G+2.5G)	Two Gigabit Ethernet ports(1G+2.5G)
	HDMI Port	YES	YES	YES
	RJ11 port	NO	NO	YES
	Optical Power Interface	Universal interface	Universal interface	Universal interface
	VFL Interface	VFL Interface	VFL Interface	VFL Interface
	Charging interface	YES	YES	YES
	USB Interface	TYPE-C,Support OTG	TYPE-C,Support OTG	TYPE-C,Support OTG,Support U disk, mouse, keyboard, RS232, 485, external YUV camera, etc.
Telecom test	DSL Test(VDSL,35B VDSL,GFAST)	NO	NO	YES
	Optical Power Measurement (dBm)	-70-+3/-50-+26	-70-+3/-50-+26	-70-+3/-50-+26
	VFL (650nm)	3mw	3mw	3mw
	IPTV Test	YES	YES	YES
	TV Emulation	Direct connect set-top box emulation TV	Direct connect set-top box emulation TV	Direct connect set-top box emulation TV
	Network card: PPPoE dialing, network layer testing, web browsing and other functions.	Yes	Yes	Yes
	DMM Test and Telephone	NO	NO	YES
	OTDR modual	NO	NO	optional
	Line sequence test	NO	NO	YES
	Cable tracking	NO	NO	YES
	Barcode scanner 2D	optional	optional	optional
Power Supply	Rechargeable Lithium Battery	5400mAh	5400/6300mAh	8200mAh
Power Supply	Standby	550h	720h	820h

4. Basic Optical Fiber Tester

Basic Optical Fiber Tester

As a professional Manufacturer of Telecom Testing Tool with 30 years' experience, we can also provide so many kinds of basic optical fiber testers.

Optical Power Meter: ST800K sereis, ST800K-U series, STD800

Laser Source: ST815 series(SM or MM fiber test)

Visual Fault Locator: ST816B, 1mw~30mw optional

PON Power Meter: ST805C, ST805C-X 1310/1490/1550nm

Fiber Signal Identifier: ST820B, ST

5. GPON ＆XGS PON ID METER

GPON ＆XGS PON ID METER

With the upgrade of GPON networks to XG(S)-PON, we have launched the new S120C to apply for the

installation and maintenance testing of the upgraded Combo PON network.

By connecting S120C in series to the PON network, we can quickly and accurately extract OLT and ONU

information, support testing GPON and XG(S)-PON at the same time.

Features：

1) Automatic PON-ID detection including OLT PON-ID, ODN class, Tx power, power level and ODN link pass/fail per ITU-T

2) ONU/ONT ID and serial number, ONU status identification

3) Downlink 1490nm/1577nm and uplink 1270nm/1310nm optical power measurement and judgement

4) Test mode: two optical ports pass through mode, low insertion loss <1.5dB (typical)

5) Compatible with GPON ,XG(S)-PON and Combo network

6) Bluetooth connection with Android phone app

7) Low power consumption for extended continuous use

8) Support 20W quick charger

Click here, More Details--S120C PON ID METER

6. Optical Fiber Tools Kit

ST3900 Optical Fiber Tools Kit

All kinds of optical fiber tools and cleaning tools for your choice:
Miller Clamp with 1/2/3 holes, Kevlar Scissors, Diagonal Pliers, Universal Round Cable Slitter, Buffer Tuber Slitter, Buffer Tube Stripper, Covered Cable Stripping Pliers, Kimtech Wipe Paper, Fiber clean cassette, Optical Fiber Clean Pen, MPO Cleaner, Optical Fiber Cleaver and so on.

7. Copper Cable Tester

ST332B xDSL Line Tester

ST332B tester is multi-functional hand-held G.FAST test instrument with small size, specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 up to 35b, G.Fast) and maintenance It

provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.

S600 Fiber and Copper Cable Tester

Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2 (30a, 35b profile is optional)

DMM (ACV, DCV, Loop and Insulation

Resistance, Capacitance, Distance); VLAN, Vectoring, Compliant with all known DSL AMs, Modem emulation and simulating login to Interne. ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test) OPM/VFL/TDR/RJ45 Test

ST620(ST620 TDR+intelligent Bridge TDR Cable Fault Locator Detector with USB & DMM Function

ST620 TDR/Cable Fault Locator

It combines with both time domain

reflectometer (TDR, pulse reflection testing ) and intelligent bridge testing (Bridge) for

measuring the exact fault location such as the broken line, cross faults, earthing, poor

insulation and poor contact of the lead covered cables as well as plastic cables.

ST620B TDR Cable Fault Locator with DMM function

ST620B TDR+ DMM Test

This DMM/TDR cable fault locator is the latest generation cable tester, It is used

for the measuring of exact fault location such as the broken line, cross faults, earthing, poor insulation and poor contact of the lead covered cables as well as plastic cables.

ST612 Cable Fault Locator

This cable fault locator is designed for ease of use, portable, light weight and easy for

carry.

It takes the time domain reflectometer (TDR) for measuring the exact fault location such

as the broken line, cross faults, earthing, poor insulation and poor contact of the lead

covered cables as well as plastic cables.

ST230D LCD Dry Battery Cheap Telephone Line Tester/butt Set/lineman Test Sets

ST230 series Tel Line Tester

Main Functions:

Common telephone function: Dial, Ring, Talk
Mute, T/P switch
High voltage protection (by fuse)Polarity indication by LEDVolume adjust

Pause, Store phone number, Monitoring function, Last number redial, Telecom Line ldentifying (Telephone line, ISDN line, ADSL line)

shandong SENTER Electronic Co., Ltd

sales@senter.com.cn

years

Established in 1996, SENTER, has been focusing on Telecom Testing Industry.
From producing copper cable tester to optical fiber tester, we have always been committed to following the demands of the telecom industry.

650

certificates

We have obtained most of the professional certificates in the industry and insist on international standards of production.

With technology innovation and constantly increase investment in new product, we have gradually became a pacemaker of the telecom testing market.

700+

employees

SENTER continues to deepen the telecom test industry, continuously expands the scale of the R&D team, enhances technological innovation, and now has more than 700 employees.
