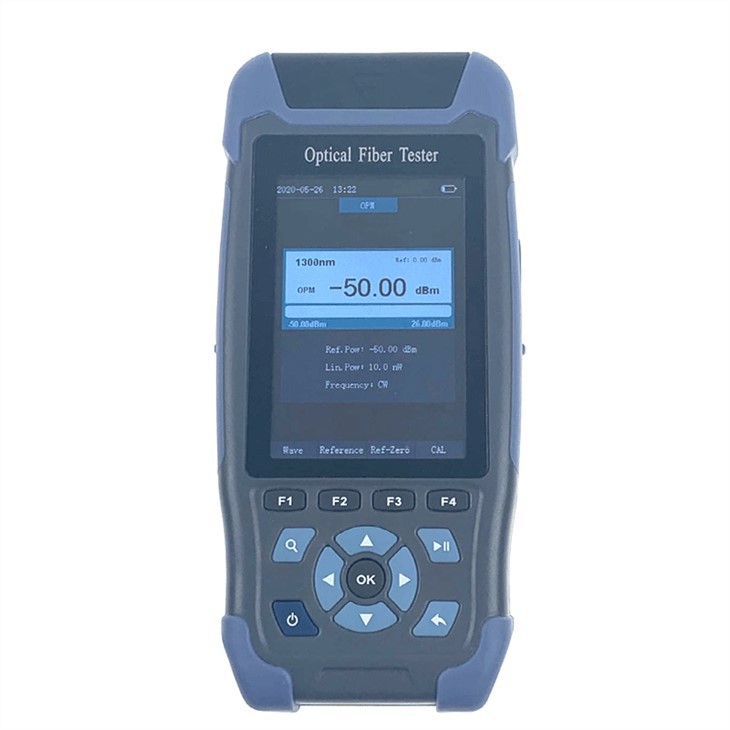

OTDR machine

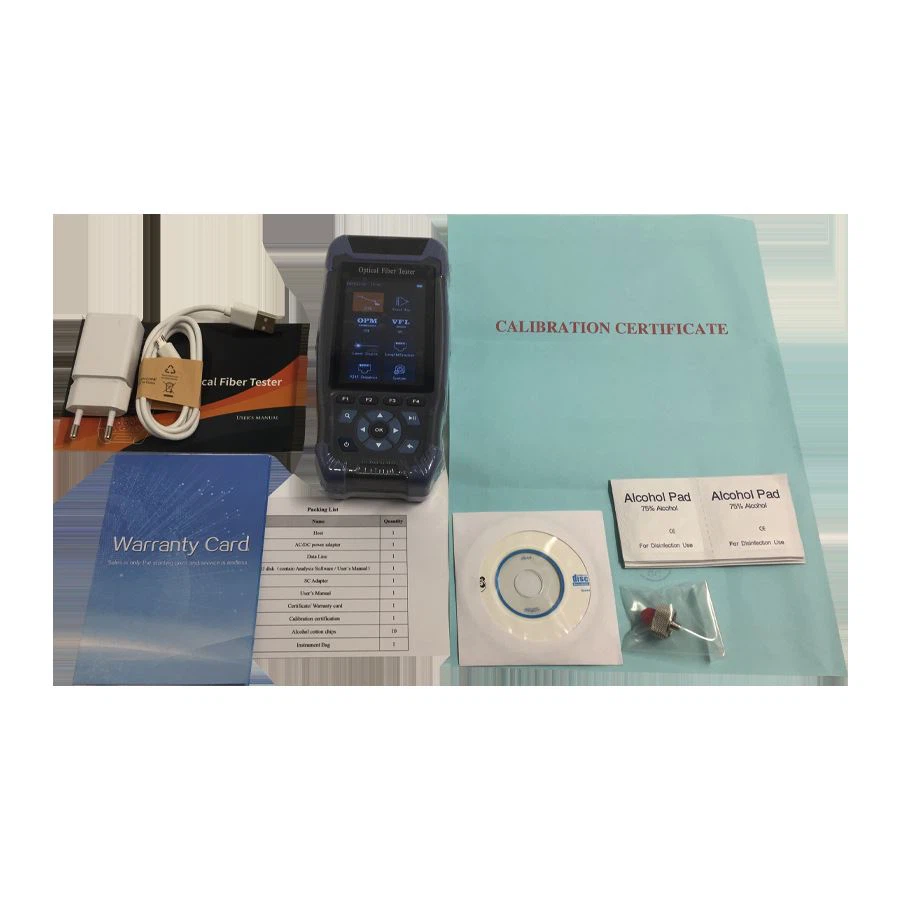

ST3200E OTDR
Main functions and features:
2.Support iLOM-EVENT MAP,3m Event dead zone 60km presicion testing
3.OPM with univesial connector
4.Laser source and 10mw VFL
5.Cable tracker and Check line sequence
Technical Specifications
Model | ST3200E-A | ST3200E-B |
Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
Fiber type | G.652 | |
Dynamic Range | 22dB | 24dB/22dB |
Event Blind Zone | 3m | |
ATT Blind zone | 8m | |
Test Range | 500m ~64km | |
Pulse Width | 3ns~10us | |
Ranging accuracy | ±( 1m+ Sampling interval +0.005 % x Test distance) | |
Loss accuracy | ±0.2dB/dB | |
Sample Points | 16k〜128k | |
Sample Resolution | 0.05m~8m | |
Reflection Accuracy | ±3dB | |
Data storage | Internal：≥600；External：TF card | |
File Format | SOR Standard File Format | |
Laser Safety Level | Class II | |
Connector | FC/UPC(Interchangeable SC、ST) | |
Others | |
Display | 3.5 inch color LCD |
Power Supply | Polymer Li-battery：3.7V, 4000mAh Adapter: 5VDC, 2A |
Data Interface | Micro USB |
External storage | TF card |
Buttery Life | Standby>20h; measuring time:>12h |
Operating Temperature | -10°C 〜+50°C |
Storage Temperature | -40°C 〜+70°C |
Relative Humidity | 0 〜95 %, Non Condensing |
Weight | ≤350g |
Size | 173mmx 82mmx37min |
Functions: Blue, OTDR/ Event Map/ VFL/ RJ45 Sequence /RJ45 Cable Tracker (Additional purchase detector)/RJ45 Line Length/ Flashlight | |
OPM | ||
Wavelength range | 800nm~1700nm | |
Interface Type | Universal joint FC/SC/ST | |
Test range | -50dBm〜+26dBm | |
Uncertainty | ±5% | |
Frequency Identification | CW/270/330/1k/2kHz | |
Calibration Wavelength | 850nm/980nm/1300nm/1310nm/1490mn/1550nm/1625mn/1650nm | |
LS | ||
LD Type | FP-LD | |
Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
Output Power | ≥-5dBm | |
Modulation Frequency | 270/330/1k/2kHz | |
Stability | CW, ±0.5dB/15min (Test after 15 minutes of preheating) | |
Connector | FC/UPC (Interchangeable SC、ST) | |
VFL | ||
Wavelength | 650nm±20nm | |
Output power | ≥10mW | |
Mode | CW/lHz/2Hz | |
Connector | FC/SC/ST | |
RJ45 Cable Length Measurement | ||
Test Range | 300M | |
