Mini Optical Power Meter
STD800 mini optical power meter
It is mainly used for continuous optical signal power measurement, optical fiber link loss test and optical fiber line on-off test. It is widely used in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, Optical CATV and other fields.
Features:
◆Supporting lighting
◆Support wave memory when shutdown
◆Support backlight switch/ automatic shutdown
◆Support user calibration
◆Support working frequency identification (optional)
◆Always on and flashing red light
◆Support simultaneous display of mW/dBm
◆Support SC/FC/ST interface
◆Supporting portable battery charging
◆Support RJ45 test (optional)
SPECIFICATION:
OPM | ||
Wave range | 800nm〜1700nm | 800nm〜1700nm |
Connector | Universal FC/SC/ST | Universal FC/SC/ST |
Detector Type | InGaAs | InGaAs |
Power Range | -70dBm 〜+6dBm | -50dBm 〜+26dBm |
Uncertainty | ±5% | |
Calibration Wave | 850/980/1300/1310/1490/1550/1625/1650nm | |
Display Resolution | Linear display: 0.1%, Logarithmic display: 0.01dBm | |
VFL (Options) | ||
Wave | 650nm±30nm | |
Output Power | 2mW/10mW/30mW/50mW | |
Mode | CW/1Hz/2Hz | |
Connector | Universal FC/SC/ST | |
Others | ||
Power Supply | Two AAA Batteries/ 700mAh Rechargeable Lithium Battery (Options) | |
Automatic Shutdown Time | 10min | |
Continuous Working Time | ≥120h(OPM Function) | |
0perating Temperature | -10°C~+50°C | |
Storage Temperature | -40°C-+70°C | |
Relative Humidity | 0〜95% Non Condensing | |
Size | 112mm X66 mmX30mm | |
Weight | 140g/150g | |

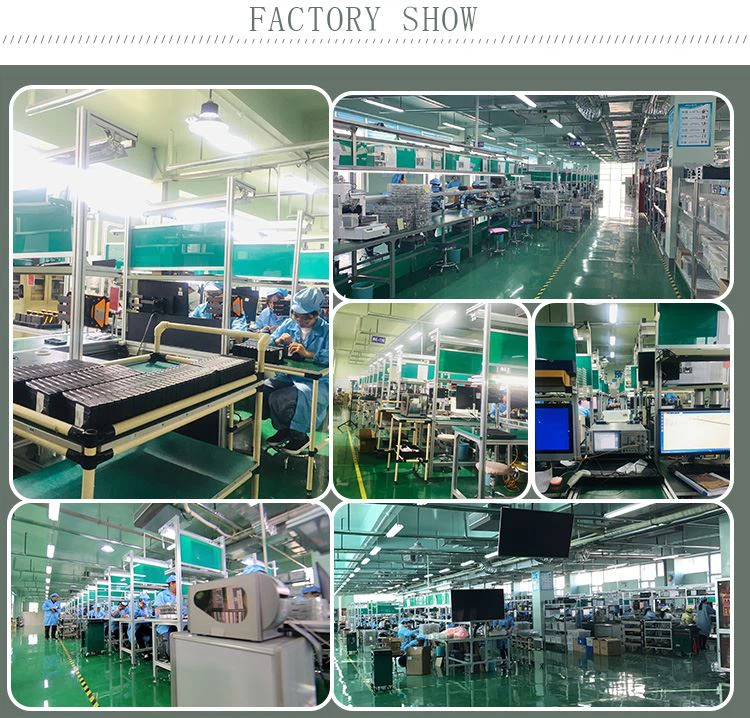

More about us:
Our featured products include communication maintenance and testing instruments, communication comprehensive maintenance terminal. ,etc. SENTER firstly launches the world handheld integrated maintenance intelligent terminal, which provides unparalleled powerful, efficient and easy-to-use user experience, establishing world-leading reputation.
FAQ:
Q1:Are you trading company or manufacturer ?
A1: We are factory to manufacture the Networking products since 1996.
Q2:How long is the lead time? A5: For the goods we have in stock, lead time will be within 3-5days, If not it will be 15-20 days according to quantity of the order.
