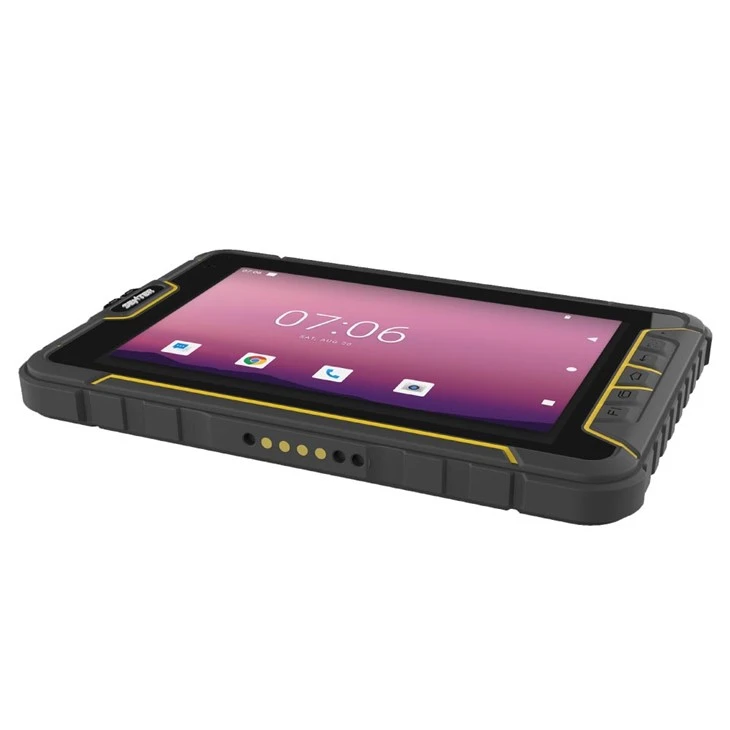

Android Rugged Tablet
Key features;
√Android 12.0 system
√Qualcomm QCM6125 Octa core CPU, 2.0GHz
√RAM+ROM 4GB + 64GB Optional 6GB+128GB
√Barcode scanning, RFID reader
√IP67 1.2m Drop Resistance
| Product Description | ||||
|
|
| Product Description | ||||
|
|
|
General Specification |
|
|
Dimensions |
209mm*139mm*19mm
|
|
Display |
7 inch 1280x800 IPS screen, capacitive touch
screen,500 NITS, Optional 1000 NITS
|
|
Keyboard
|
Android menu, Homepage, Return, Volume,Barcode, ON/OFF, Reset
|
|
Power |
3.7V, 7200mAh,Standby current less than 10mA
|
|
External Ports |
Charge port 2.5mm, headphone port 3.5mm
has mike, telephone receiver and bottom pogo
pin for charging docking station
|
|
Sensors |
Support Gravity, Acceleration sensor,Geomagnetic sensor, Gyroscope
|
|
Camera |
5 MP front camera, 13 MP rear camera(optional16MP)
|
|
LED indicator
Light & FM
|
support
|
|
OTG
|
Support, through OTG can meet 100M network port, network card setup, PPPOE dial-up, web
browsing. Support OTG extend RS232 serial port
|
|
Weight
|
620g
|
|
USB port
|
Type C; support OTG(U-disk/Mouse/Keyboard/
USB Ethernet cable)
|
|
Performance |
||
|
OS |
Android 12.0 |
|
|
CPU |
Qualcomm QCM6125 0cta core CPU,2.0GHz
|
|
|
RAM/ROM |
4+64GB; 6GB+128GB (optional)
|
|
|
Extend Memory |
Support up to 256GB |
|
|
Communication |
|
|
WIFI |
Support IEEE802.11a/b/g/n/ac,2.4G and 5G dual band
|
|
WWAN (Europe Asia) |
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/B2/5/8
GSM:850/900/1800/1900MHz
|
|
WWAN (America) |
LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/
B25/B26/B66/B71
LTE TDD: B41
WCDMA: B2/B4/B5
|
|
Bluetooth |
BT5.0 with BLE |
|
GPS/ AGPS |
Support GPS, DBS, GLONASS and professional GPS, Ublox; GPS and Beidou (alternative)
|
|
Optional Function |
|
|
RFID |
LF RFID 134KHZ LF RFID or 125KHZ LF RFID
NFC (HF)RFID:Working frequency:13.56MHZ
UHF RFID:Working frequency:865-928MHz (customization of required frequency band)
|
|
Barcode |
Internal 1D Infrared Scanner: Zebra SE655
2D Barcode Scanner :Honeywell N6603 2D laser, Newland N3601
|
|
Fingerprint |
Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.
Type: TCSIST Sensor type: capacitive
|
|
User Environment |
|
|
Working Temperature |
-20°C~+50°C |
|
Storage Temperature |
-40°C~+60°C |
|
Humidity |
5%-95% relative humidity(no condensation) |
|
IP Level |
IP67 |
|
Drop Grade |
Drop resistance from 1.2m |
|
Product Application |
SENTER Android 12rugged tablet industrial tablet can be widely used in various fields such as warehouse management, military, rescue, agriculture, transportation, etc.
1. Be able to handle any industrial environment
The industrial computers used in the workshop will be integrated into the production line and the mechanical arm, and in most cases, these devices will be used in dirty, dusty working conditions and extreme temperature areas.
Many operations alternate between indoor and outdoor, with large temperature differences. Industrial tablets should have internal components that are not affected by these temperature fluctuations, because they are designed with this possibility in mind.
To be able to withstand these conditions, industrial tablets require a high IP rating, indicating that the device is effectively sealed to prevent the intrusion of foreign matter and moisture from the front bezel or the entire chassis.
2. Portability
Able to withstand rough handling in industrial environment. In the factory floor, this treatment involves the occasional drop, which may cause the normal computer to stop running. The anti drop tablet can withstand a drop of 1.2 meters to the plywood floor.
The operation of the Forklift uses an on-board computer connected to the cage to obtain instructions from the material handling system. The rugged tablet can withstand the bumps of this high motion environment.
