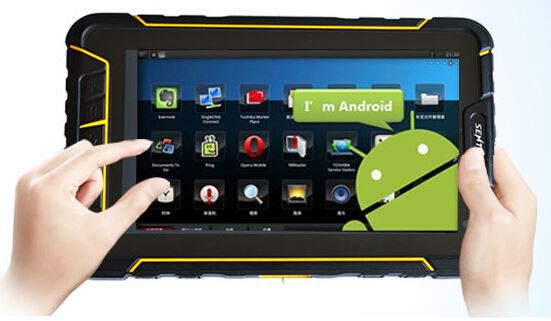

ST907W-HG+J 7 Inch Android Mobile Industrial Tablet Pc With 1D LASER Barcode Scanner
ST907W-HG+J 7 Inch android Mobile Industrial Tablet PC with 1D LASER Barcode Scanner
ST907W-HG+J 7 Inch android Mobile Industrial Tablet PC with 1D LASER Barcode Scanner
ST907W-HG+J 7 Inch android Mobile Industrial Tablet PC with 1D LASER Barcode Scanner
ST907W-HG+J 7 Inch android Mobile Industrial Tablet PC with 1D LASER Barcode Scanner
android os industrial rugged tablet PC
Android os industrial rugged tablet PC.S917V11 has intelligent operation platform but also has functional modular jacket with flexible configuration. So it can satisfy the customized requirements from different customers.
OVERVIEW
S917V11 industrial tablet PC is manufactured by Shandong Senter Electronic Co., Ltd., which adopts quad core 1.8 GHz CPU and Android 9/12 operation system; LCD screen is readable under sunlight; can configure barcode scanning, RFID reader, fingerprint identification as well as other information acquisition module; has super long battery life; IP67 high reliable three proof structure; drop resistance from 1.2m; S917V11 rugged tablet PC is an internet information terminal which has advanced technology, powerful function and reliable performance.
S917V11 adopts the combination of host and modular jacket design concept. It not only has intelligent operation platform but also has functional modular
jacket with flexible configuration. So it cansatisfy the customized requirements from different customers.
KEY FEATURE
-- Support professional GPS: support differential data or common GPS
-- Support jacket extension: satisfy custom applications from customer
-- Advanced system: Android 9/12 operating system; quad core 1.8 GHz CPU; RAM 4G
-- Three-proof design: IP67 three protection grade, drop resistance from 1.2m
-- Visible under strong light; 7 inch LCD screen, 1280x800 IPS capacitive touch screen
Product Description
General Specifications | ||
Operating System | Android 9 /12 OS | |
CPU | MSM450, A53, 8 core CPU, 1.8GHz | |
RAM | RAM: 4G | |
FLASH: 64G | ||
Extended Storage | Micro SD, Maximum 256G | |
USB port | 5 pin MicroUSB; support OTG (U-disk/Mouse/Keyboard/USB Ethernet cable) | |
OTG | Support, through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend RS232 serial port | |
External port | Charge port, headphone port | |
Protection Grade | ||
Industrial Protection Grade | IP67 | |
Drop Grade | Drop resistance from 1.2m | |
Wireless Communication | ||
Bluetooth | Support 4.0 | |
GPS | Support GPS, DBS, GLONASS and professional GPS,Ublox; GPS and Beidou (alternative) | |
WIFI | Support IEEE 802.11b/g/n | |
4G | FDD/WCDMA/GSM LTE_FDD 1800/2100/2600 B1/B3/B7 LTE_TDD B41/B40 WCDMA 850/1900/2100 B1//B2/B5 GSM 900/1800/1900 B2/B3/B8 | |
Data Acquisition (Optional) | ||
Fingerprint identification
| Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc. | |
Type | TCSIST semiconductor sensor | |
ISO Template | Support | |
Sensor type | Capacitive | |
Acquisition window size | 24.5*19MM | |
Effective image size | 15.5*18.5MM | |
Image Size | 256*360 Pixels | |
Image Resolution | 500DPI | |
Matching mode | contrast mode(1:1); search mode(1:N) | |
Far infrared meter reading | Working frequency 37.9K | |
Barcode Scanning
| 1D Infrared Scanner Index:Motorola SE655 Scanning speed: 50 times/second Scanning distance: 5.7cm-61.0cm Scanning angle: 53.3° ±3° | |
2D Barcode Scanner Index:NLS-EM3096 Identification ability: 1D, 2D, OCR Scanning angle: rotate 360°, incline±50°, deflection ±50° Field of View: Horizontal 36°, vertical 23° Depth of field: 4cm-23.5cm Environmental luminance: 0~100,000 LUX | ||
RFID | LF RFID: 134KHZ LF RFID or 125KHZ LF RFID | |
NFC (HF) RFID: Working frequency: 13.56MHZ Profile: Support ISO/IEC 15693, ISO/IEC 14443A profile Support Cards: SR176, SRIX4K (TYPE-B), I- Code2, TI RFID label-it HF-I, EM4034, Mifare Classic ETC Identification distance: not more than 5cm | ||
UHF RFID: Working frequency: 840-960MHz(customization of required frequency band) Support agreement: EPC C1 GEN2/ISO 18000-6C Output power: 10dBm-30dBm Identification distance: not more than 6m | ||
Physical Parameters | ||
Display Screen | 7 inch LCD screen, 1280x800 IPS screen, capacitive touch screen | |
Keyboard | Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset | |
Camera | 2 million pixels front camera, 8 million pixels rear camera with automatic focus and lighting function | |
Headset | 3.5mm audio Interface, has mike and telephone receiver | |
LED indicator light | Support (ordinary flicker, Call fast flicker, missed calls) three status bar | |
Flashlight Function | Support, can be used for emergency lighting | |
Googleplay store | Support | |
Gravity sensor | Support | |
Compass | Support | |
Vibrating motor | Support | |
FM | Support | |
Rechargeable Lithium Battery | 3.7V, 7200mAh | |
Standby | Standby current less than 10mA | |
Dimension | 209mm*139mm*19mm | |
Weight | 590g | |
Environmental Characteristics | ||
Working Temperature | -20℃ ~ +50℃ | |
Storage Temperature | -40℃ ~ +60℃ | |
Humidity | 5%-95% relative humidity; no condensation | |
APPLICATIONSOPTIONAL ACCESSARIES
APPLICATIONS
This advanced industrialgrade mobile information terminal can been widely used in mobile informatization projects of various industries, for example
inspection, electric power,communication, gas, water affairs, logistics, medical treatment, government affairs, police affairs, forestry, traceability and other fields.
ORDERING INFORMATION
Ordering Information | Module Code | Module Type | |
Standard / Basic Part | |||
S917V11 Host LTE/WCDMA/GSM | S917V11W-G | Android 9/12 OS, Quad Core, 1.2G IP67 / Bluetooth /4G/ WIFI / GPS with accuracy 10m 7 inch IPS 1280*800 / 8 Million Pixels Camera 7200mAh Lithium Battery / Mini USB Port | |
Optional Module | |||
Barcode Scanning | R | CCD Barcode Scanning(Motorola SE655 ) | |
2 | 2D Barcode Scanning(NLS-EM3096) | ||
RFID | LF RFID | 4 | LF 134KHZ (FDX) |
5 | LF 125KHZ | ||
C | LF 134KHz (FDX/HDX) | ||
HF RFID | H | HF RFID 13.56Mhz | |
UHF RFID (865-868MHZ is optional) | 1 | UHF (900MHZ, 0.45m) | |
3 | UHF (900MHZ, 2m) | ||
M | UHF (900MHZ, 4m) | ||
High Precise GPS | P | High Precise GPS Locating Module with accuracy <3m | |
Fingerprint | F | Fingerprint Module | |
If you're in need of S917V11w-RHG+M,it mean 7 inch android mobile industrial tablet pc with 1d laser barcode scanner .GPS, UHF RFID reader funtions. SENTER As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
Hot Tags: android os industrial rugged tablet PC, China, manufacturers, factory, low price, buy
