4GB RAM Octa Core 2GHz 8 Inch LCD Android 9 Rugged Tablet Pc S917 V10
Powerful Industrial Android Rugged Tablet S917V10 adopts Qualcomm MSM8953 Octa core 2GHz CPU and Android 9.0 operation system; 4G RAM, 64G ROM,4G LTE. 1980*1200 500 nits screen is readable under sunlight; Optional functions like barcode scanning, RFID reader, fingerprint identification It has...
Send Inquiry
Product Introduction
If you're in need of 4gb ram octa core 2ghz 8 inch lcd android 9 rugged tablet pc s917 v10 to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
Powerful Industrial Android Rugged Tablet
S917V10 adopts Qualcomm MSM8953 Octa core 2GHz CPU and Android 9.0 operation system; 4G RAM, 64G ROM,4G LTE.
1980*1200 500 nits screen is readable under sunlight; Optional functions like barcode scanning, RFID reader, fingerprint
identification
It has 10000mAH battery (Wide temperature battery); IP67 high reliable three-proof structure water/dust proof; drop resistance from 1.2m.
Advanced system
Android 9.0 operating system,CPU Qualcomm MSM8953,8core 2GHz ,RAM 4G ROM 64G,Micro SD 128G
Visble under strong light
10 inch LCD screen,1920*1200IPS capacitive touch screen with 500 nits brightness
Powerful function
Multi function, 1D/2D bar code scanning,LF/HF/UHF RFID reader,fingerprint identification
Multi communication modes
3G/4G,WIFI,Bluetooth and many wireless commnication modes
Support jcaket extension
Satisfy custom applications from customers

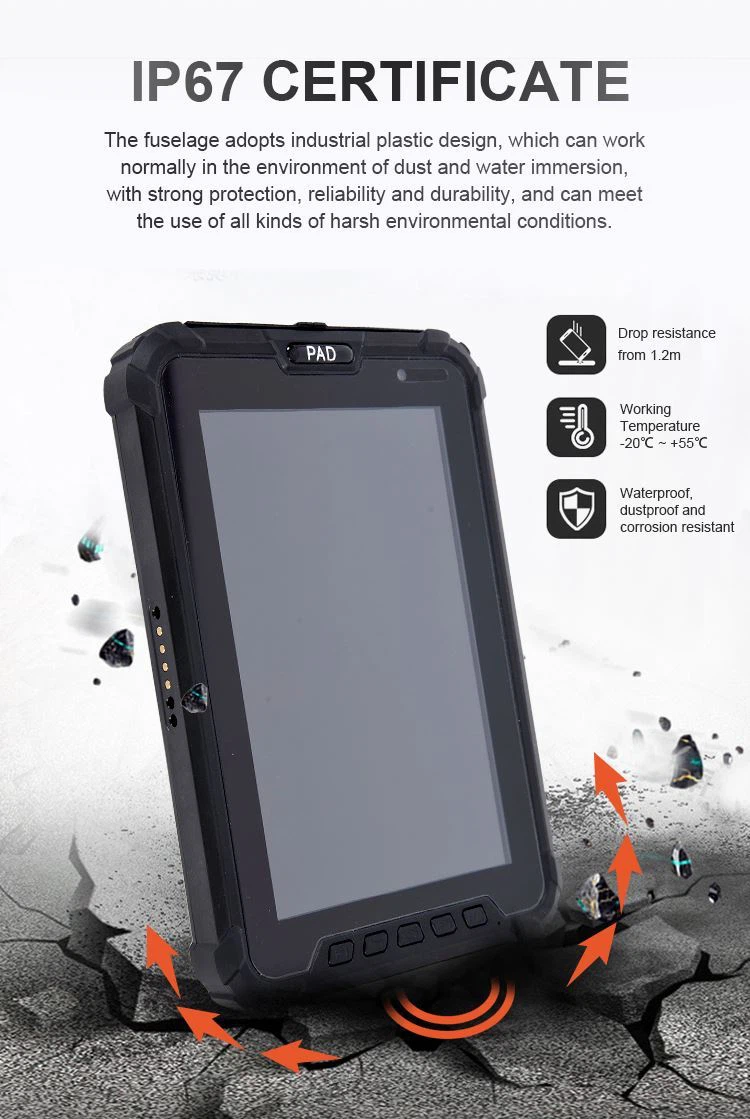

Industrial protection
IP68 three protection grade,drop resistance from 1.2m
Battery
38Wh,10000mAh,endurance is about 12 hours
Certification
CCC/CE/ROSH/FCC/IP67/MIL-STD-810G
Dimension
277*183*19mm,1109g
| General Specification | |
| Display Screen | 8 inch LCD screen,1920*1200IPS screen,500 nits brightness standard capacitive touch screen |
| Operating System | Android 9.0 |
| CPU | Qualcomm MSM8953,8 core,2.0GHz,RAM 4G ROM 64G,Micro SD maximum 512G |
| USB port | Type-C port;Support to connect U-disk/Mouse/Keyboard/OTG line |
| HDMI | HDMI port |
| OTG | Through OTG can meet 100M network port,network card setup,PPPoE dial-up,web browsing.Support OTG extend RS232 serial port/RJ45 port/485 serial port) |
| Protection Grade | |
| Industrial Protection Grade | IP67 |
| Drop Grade | Drop resistance from 1.2m |
| Wireless Communication | |
| Bluetooth | Support 4.2 |
| GPS | Support GPS,BDS,GLONASS,accuracy about 10 meters |
| WIFI | IEEE 802.11a/b/g/n/ac,2.4G and 5G dual band |
| 2G/3G/4G LTE | China/India: LTE FDD:B1/B3/B5 LTE TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 TD-SCDMA:B34/B39 EVDO/CDMA:BC0 GSM:900/1800MHz Europe/Africa: LTE FDD:B1/B3/B5/B7/B8/B20/B28 LTE TDD:B38/B40/B41 WCDMA:B1/B2/B5/B8 GSM:850/900/1800/1900MHz America: LTE FDD:B2/B4/B5/B7/B8/B12/B13/B14/B25/B26 LTE TDD:B41 WCDMA:B1/B2/B4/B8 GSM:850/1900MHz |
| Physical Parameters | |
| Camera | 5MP front camera,13MP rear camera with automatic focus and lighting function |
| Keyboard | Android menu,Homepage,Return,Volume+ -,Barcode,ON/OFF,Reset |
| Headset | 3.5mm audio Interface |
| Mic and Loudspeaker | Support |
| LED indicator light | Support(ordinary flicker,Call fast flicker,missed calls,charge indicator) |
| Flashlight Function | Support,can be used for emergency lighting |
| Gravity Sensor | Support |
| Compass | Support |
| Acceleration Sensor | Support |
| Light and distance Sensor | Support |
| Vibrating motor | Support |
| FM | Support |
| Lithium Battery | 3.8V,10000mAh temperature wide battery,Supporting working 2.5-3 hour on -20°C |
| Dimension | 232*158*22mm |
| Weight | 810g |
| Enviromental Characteristics | |
| Working Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+70°C |
| Humidity | 5%-95%relative humidity;no condensation |
| Optional function | |
| Barcode Scanning | 1D Laser Scanner Index(Internal): Honeywell N4313 or Zebra EM1350 Scannning speed :104 times/second+12times/second(two way sanning) Scannning distance:2.5cm-114.3cm Scanning angle:47±3°(default)35±3°(reduced code) 2D Barcode Scanner Index(Iternal) Newlands EM3096 Honeywell N3680 Motorola SE4750 Honeywell N6603 Identification ability:1D,2D,OCR Scanning angle:rotate 360°,incline±50°,deflection±50° Field of View:Horizontal 36°，vertical23° Depth of field:4cm-23.5cm Enviromental Luminace:0~100000LUX |
| RFID | HF RFID(Internal) Support NFC/NXP,13.56MHz ISO14443A,B and ISO15693 protocol,reading distance 0-3cm,Tag support type:SR176,SRIX4K(TYPE-B),I-Code2,TI RFID Tag-it HF-I,EM4034,Mifare Classic ETC LF RFID(Internal): 134.2KHz LF RFID support ISO11784/5 protocol,support to read IC card(FDX/HDX) 125KHz LF RFID,support to rea ID card UHF RFID(Internal): Ray links RLM060 or ThingMagic M6E-NANO,EPC C1 GEN2/ISO18000-6C,Output power 10dBm-30dBm Reading distance:1m Ceramic antenna:0.3db(25*25*4mm) |
| Far infrared meter reading | Working frequency 37.9K |
| Fingerprint read module | Supports fingerprint entry,image collection,fingerprint recognition,fingerprint deletion etc. Type:TCSIST Sensor type :capacitive Effective image size:12.8*18.0mm Image size:256*360 Resolution :508ppi(dpi) contrast mode(1:1);search mode(1:N) FIPS 201 ompliant capability(TCS1) |
