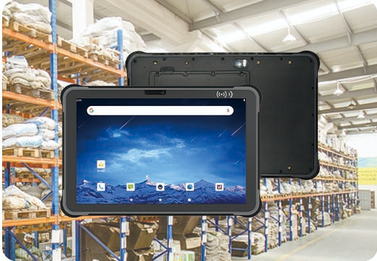

10 Inch Android 13 Rugged Tablet

General Specification

Communication

Dimensions

275*178*18mm

WWAN

4G Fre:

FDD: B1,B2, B3,B4, B5, B7, B8, B10, B12,B13, B14, b17, B20, B23, B24, B25, B26

TDD: B38,B39,B40,B41, B66, B71 B34

WCDMA:B1,B2, B5, B8

TD-SCDMA: B34,B35, B36, B37, B38 B39, B40, B41, B42, B43

GSM/GPRS/EDGE, 850/900/1800/1900

Display

10.1 inch,1920*1200;

400nits/1000nits optional sunshine readable; 10 point touch, support stylus

Interface

in/out port

1. normal USB*1 2. Type-c USB*1 3. RJ45*1

4. bottom pogopin*1, USB and serial 5. back pogopin*1 6. DC*1 3.5*1.35 7. microphone+earphone 8. RS232*1

802.11a b c, g,n wireless internet

Wireless AP ( Mobile AP )2.4G, 5G

Pogopin

definition

1.16pin back of cover, include ( 1USB, 1RS232, 1 UART, 3.3V, 5V OUT)

2. 8pin in bottom; (1USB, 1 RS232, 1 UART) VESA hole 75*75mm or 90*90mm

GPS

beidou,GPS, glonass

Power

12000mAh,hotswap, 2400mAh backup power; 3.8V 3A imput, support hotswap

BLUETOOTH

5.0 version

Sensor

1. light sensor 2. compass 3. gravity 4. acceleration 5. baroceptor

Optional Function

Button

V+ -, Power, P, F, H

UHF RFID

reading and write distance 1meter to 10

meter

Camera

5M/13M, flash

2D barcode

Honeywell N4680

Casing material

ABS/PC

Multi-media

(Hardware

decoding)

•Photo Viewer: BMP, JPG, GIF, PNG

•Video Format: MEPG 1/2/4,H.263/H.264,

RMVB,WMV/VC-1 ,MVC,AVS,MJPEG.(UP TO 1080P)

•Audio Format :MP3,WMA,WAV,OGG,FLAC ,ALAC,APE,AAC,AC-3,DTS (need license)

Fingerprint

LD-8800-M

NFC

13.56 MHz

Performance

User Environment

OS

Android 13.0

Working

Temperature

-20℃~+60℃

CPU

Octa-core 64-bit 2.0GHz high-performance processor

Storage

Temperature

-25℃~+80℃

RAM/ROM

4GB+64GB/6GB+128GB

IP Level

1. water proof IP65/IP66/IP67

2. Drapping proof 1.2 meter

Expand memory

Micro SD(TF) Supports up to 256GB

Certification

1. 810G 2. CE,FCC
