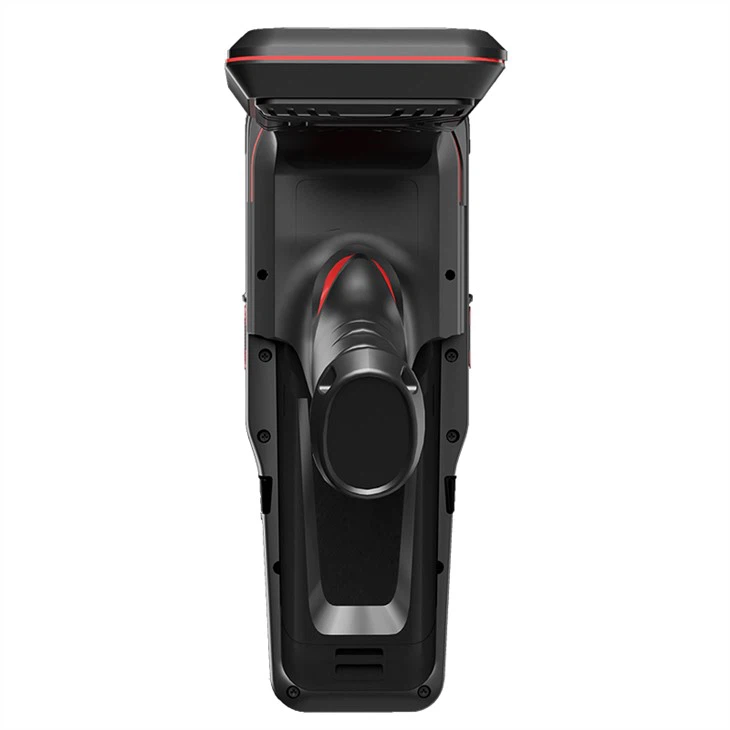

RFID PDA Terminal
Key features:
√ 4.0-inch HD screen
√ Android 10.0 system
√ 4G RAM,64GROM
√ Barcode scanner Honeywell N5703
v √ NFC UHF RFID reader
| Specifications | |||||||||||||

| Product Description | Data Communication | ||||||||||||
| CPU | Cortex-A53 Quad core 64 bit 2.0 GHz high performance processor | WIFI | Dual -band 2.4GHz/5GHz, Supporting IEEE 802 a/b/g/n/ac protpcol | ||||||||||
| RAM+ROM | 2GB+16GB | WWAN | 2G: GSM (850/900/1800/1900MHz) | ||||||||||
| EXPAND MEMORY | Micro SD(TF) Supports up to 128GB | 3G: WCDMA(850/900/1900/2100MHz) | |||||||||||
| SYSTEM | ANDROID 10.0 | 4G: FDD:B1/B3/B4/B7/B8/B12/B20 | |||||||||||
| TDD:B38/B39/B40/B41 | |||||||||||||
| BLUETOOTH | Support Bluetooth 5.0+BLE | ||||||||||||
| GNSS | Support Gps, Galileo, Glonass, Beidou | ||||||||||||
| Physical Parameter | Data Collection | ||||||||||||
| Dimensions | 201.8mm×72mm×25.6mm | Barcode scanning(Optional) | |||||||||||
| Weight | <500g (Depends on device function configuration) | 1D Symbologies | Code128,EAN-13,EAN-8. Code39 ,UPC-A,UPC-E,Codabar interleaved 2 of 5,China post 25,ISBN/ISSN, Code93 ,UCC/EAN-128 ,GS1 Databar, HIBC, etc. | ||||||||||
| Display | 4.0", 480×800 resolution | ||||||||||||
| TP | support multi-touch | 2D Scanning engine | Mindeo. E483 E58 3, Newland N6601, Honeywell N6603 N5703 N6703 | ||||||||||
| Battery capacity | Rechargable polymer battery (3.8V 5000mah) removable | ||||||||||||
| 2D Symbologies | DF417,Micro PDF417, GS1 Composite,Aztec Code, Data Matrix, QR Code, Micro QR code, Maxicode, hanxin Code,etc. | ||||||||||||
| Standby time>350 hours | |||||||||||||
| Working time>12 hours | |||||||||||||
| Charging time<3H, using standard power adapter and data cable | Camera(Standard) | ||||||||||||
| Rear camera | 800W pixel HD camera Support auto focus, Flash, Anti-shake, Macro shooting | ||||||||||||
| Expansion Card slot | Nano SIM card ×2, TF card × 1 | ||||||||||||
| Front camera | 200W pixel color camera | ||||||||||||
| Communication interface | Type-C 2.0 USB ×1, supporting OTG function | NFC(Optional) | |||||||||||
| POGO Pin×1 | Frequency | 13. 56MHz | |||||||||||
| Audio | Speaker(mono), Microphone, Receiver | Protocol | Support ISO14443A/B, 15693 agreement | ||||||||||
| Keypad | 38 soft and hard rubber buttons, left button ×1, right button×1 | Distance | 2cm-5cm | ||||||||||
| Sensors | Gravity sensor, light sensor, distance sensor, vibration motor | ||||||||||||
| Input | English, Pinyin, Five strokes, Handwriting input, Input Support soft keypad | ||||||||||||
| User Environment | |||||||||||||
| Operating Temperature | -20℃—55℃ | ||||||||||||
| Storage Temperature | -40℃—70℃ | ||||||||||||
| Environment Humidity | 5%RH--95%RH(no condensation) | ||||||||||||
| Drop Specification | 6 sides Supports 1.2 meters drops on the marble within the operating temperature | ||||||||||||
| Rolling Test | 0.5m rlling for 6 sides, can still work steadily | ||||||||||||
| Sealing | IP66 | ||||||||||||
| Application | |||||||||||||
The ST917G can be used in the industries of logistics and medical industry:
![]() ●In the logistics control system, the fixed RFID reader is dispersed in a given area, and the reader is directly connected to the data management information system. The signal transmitter is moved. Generally, it is installed on mobile objects and people. When objects and people pass through the reader, the reader will automatically scan the information on the label and put the data information input data management information system for storage, analysis and processing to achieve the purpose of controlling logistics. By using the Senter RFID PDA terminal, the work efficiency of courier during delivery and sorting can be effectively improved, and the errors of manual enrollment can be reduced to achieve the purpose of intelligent and intelligent. |

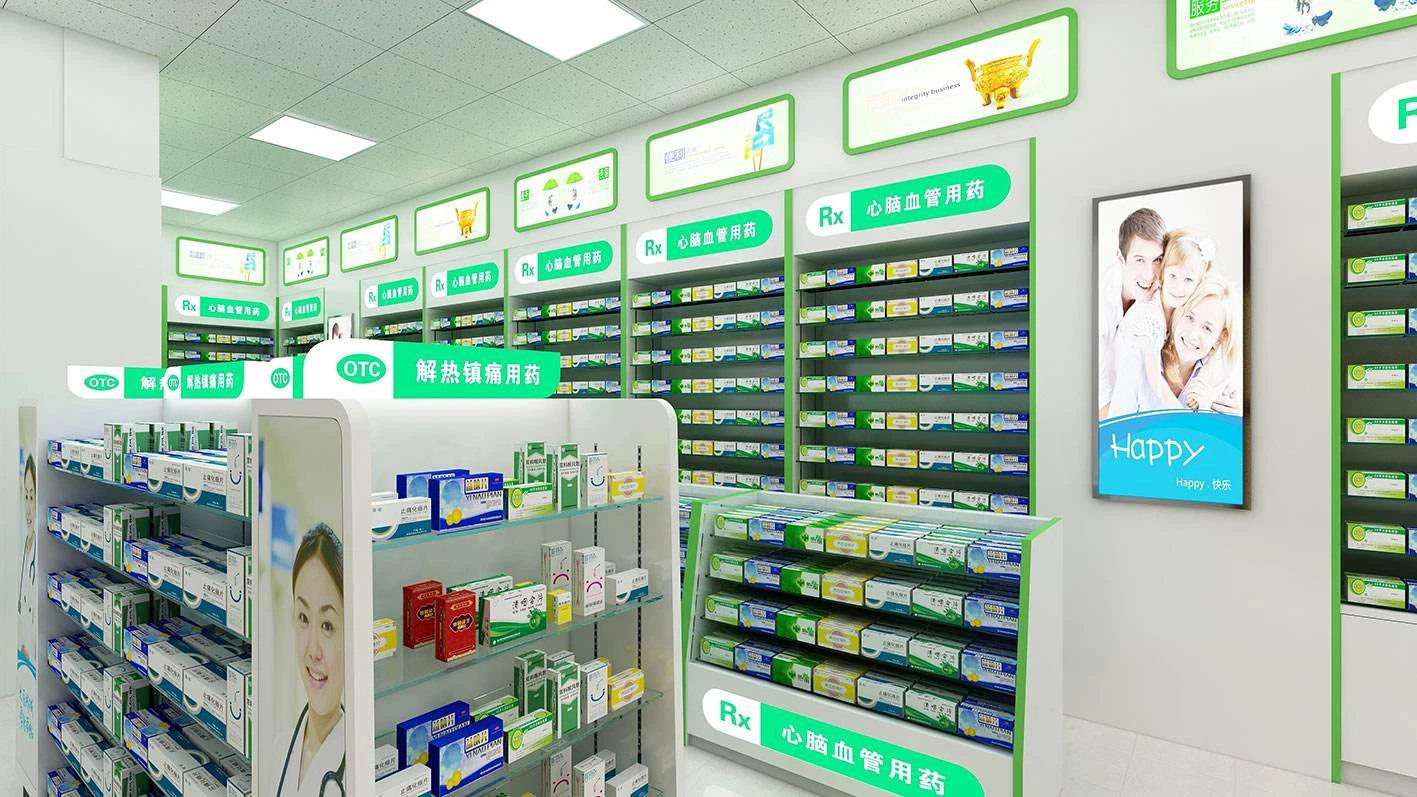

![]() ● RFID is a non -contact automatic recognition system that automatically recognizes the target object through radio frequency wireless signal and obtains relevant data. It consists of electronic labels, readers and computer networks. In the medical industry, when medical staff is assigned to patients, they can use Senter RFID PDA terminal to hold the end to scan the patient's wristband, the barcode of the drug to obtain information, and effectively reduce the incidence of medical errors. You can also enter or read the barcode information of the drug by scanning the barcodes of the bar, and master the in -out and circulation information of the drug to ensure the quality and safety of the drug. |
| Video | |||||||||||||
| FAQ | |||||||||||||
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would
around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q: why should you buy from us not from other suppliers?
A: Leading manufacturer for fiber and copper tester since 1996 Export more than 100 countries Products contain 3 categories R&D team
more then 50 person 20,000 square meters workshop CE ISO guaranteed 16 years export experience
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
