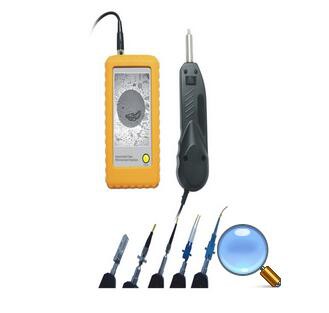

STS824 Fiber Optic Inspection Probe Microscope,Digital Optical Fiber Inspection Probe 400 Magnification Vide
Hand-held Inspection Probe STS824
◆ Brief Introduction
This product is a portable video microscope used to inspect all kinds of fiber optic terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.
◆ Features
w Convenient using both for male and female adapters;
w Widely used in DWDM, SDH, SONET etc.
w Magnification: 250* via 3.5'' 220,000 pixels TFT LCD;
w Available for USB 2.0 interface on PC and data saving
◆Specifications
Magnification | 250x (3.5'' Monitor) |
Resolution Ratio | 0.5 um |
Display Screen | 3.5'' TFT-LCD, 960x240 pixels |
Video Output | NTSC / PAL |
Other Parts
Power Supply | 3.7V 4500mA / 5V 1A Li Battery |
Weight | 1.5kg |
Work/Storage | -20℃~+50℃ -30℃~+60℃ |
◆Applications
Tips Type | Function Description |
25-U-M | FC/SC/ST/E2000 patch cord UPC connector |
125-U-M | LC/MU patch cord UPC termination |
25-A-M | FC/SC/ST/E2000 patch cord APC connector |
125-A-M | LC/MU patch cord APC termination |
25-U-F | FC/SC/ST/E2000 UPC bulkhead |
LC-U-F | LC UPC bulkhead |
SC-A-F | SC APC bulkhead |
FC-A-F | FC APC bulkhead |
LC-A-F | LC APC bulkhead |
◆ Ordering Information
Standard Accessories | Inspection Probe x1 3.5'' monitor x1 25-U-M x1 125-U-M x1 25-U-F x1 LC-U-F x1 Recharger; Manual; Carrying bag; Li Battery |
Optional Accessories | 25-A-M ; 125-A-M ; SC-A-F ; FC-A-F ; LC-A-F AV-USB 2.0 Converter |
If you're in need of sts824 fiber optic inspection probe microscope,digital optical fiber inspection probe 400 magnification vide to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
