ST3100H Ribbon Fiber Fusion Splicer
√ Accurate alignment, world standard fusion loss
√ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
√ Applicable to different types fibers (SM/MM/DS/NZDS)
√ Ruggedized body, waterproof, anti-dust, anti-shock √ Pluggable Li-battery, support separate charging
√ Easy to maintenance, easy to replace the electrodes
√ USB port for software upgrading, records exporting
√ Support 4000/100 groups fusion records/fusion images

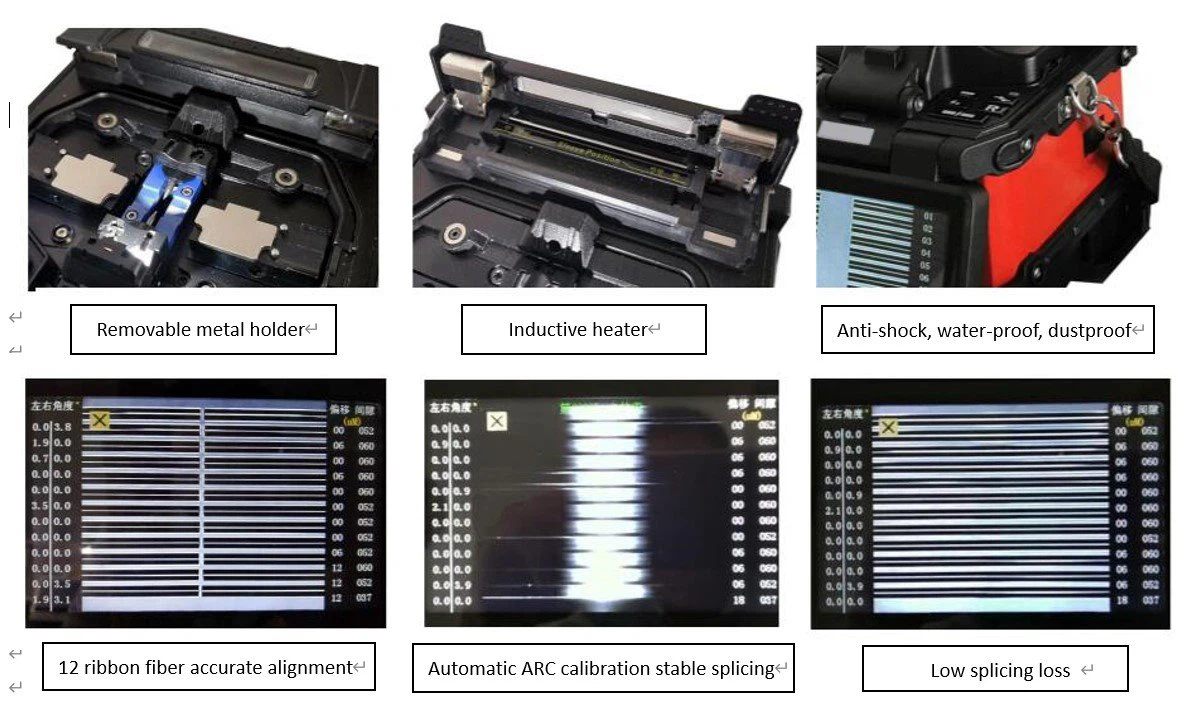

Details Display
Details Display | |||||||||||||
Specifications | |||||||||||||
Alignment method | Clad to Clad |
Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655) |
Fiber cores quantity | Single core, 2-12 cores |
Diameter of coating | 250~400μm |
Typical splice loss | SM:0.05dB, MM:0.02dB, DS:0.08dB, NZDS:0.08dB |
Return loss | >60db |
Splicing program | 40 groups |
Operate mode | Manual/Automatic |
Auto-heating | Available |
Typical splicing time | 20 seconds |
Typical heating time | 1-2 cores 26 seconds, 4-12 cores 40 seconds |
Fiber magnification | 25X |
Viewing display | Dual high sensitivity camera, 5 inch 800*480 LCD monitor |
Data Storage | 4000 groups data records and 100 group images |
Loss evaluation | Available |
Tension test | 1.8-2.2N |
Interface | GUI menu interface, easier operation |
Battery capacity | 5200mAh Li-battery, 150 cycles splicing and heating |
Power supply | Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V |
Electrode life | More than 3000 ARC discharges, can be replaced conveniently |
Terminals | USB 2.0 port, for software upgrading, records exporting |
Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s |
Dimension | 155mm(L)x144mm(W)x155mm(H) |
Weight | 2.3kg including battery |

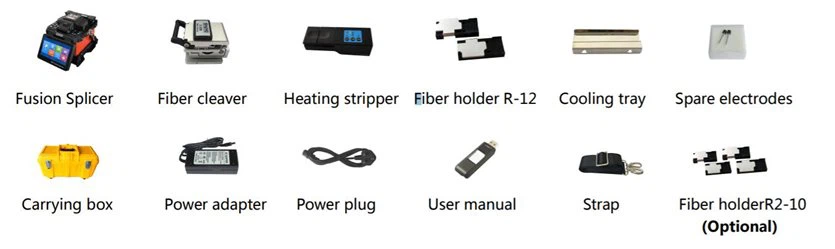

| Standard Package | |||||||||||||
