ST3110C High Precision FTTH Tools, Optical Fiber Cleaver, Fiber Cutter, Cutting Tool
ST3110C Precision Fiber Optic Cleaver /Bin attached
Specification
ST3110C Optical Fiber Cleaver | |
Suitable fiber | Single fiber |
Coating diameter | 0.25mm&0.9mm |
Cladding Diameter | 125um |
Cleaving length | 9~16mm(ø0.25mm) 10~16mm(ø0.9mm) |
Cleaving angle | 0.5° |
Blade life | 48000 times |
Weight | Approx. 430g |
Dimension | 63(W ) X 84( D ) X 63( H ) mm |

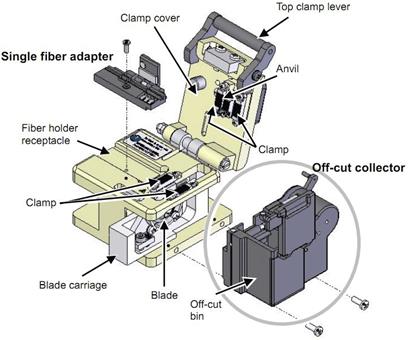

Structure:
Operating Procedures
1. Open the top clamp lever and the lid of the single fiber adapter. The blade carriage should be in the forward position.
2. Lower the fiber straight into the correct V-groove with the end of the fiber coating (e.g. if the cleave length is 16mm) at the 16mm mark on the ruler.
3. Close the lid of the single fiber adapter.
4. Lower the top clamp lever. Slide the blade carriage to the rear of the cleaver. The fiber will be cleaved.
5: Open the top clamp lever. Then open the lid of the single fiber adapter and lift the newly cleaved fiber. Lift the off-cut and dispose it properly.
Ordering Information
Standard Accessory | |
Optical Fiber Cleaver with off-cut collector | 1 pc |
Carrying Case | 1 pc |
Operation Manual | 1 pc |
Optional Accessory | |
Replacement Blade | 1 pc |
If you're in need of st3110c high precision ftth tools, optical fiber cleaver, fiber cutter, cutting tool to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
