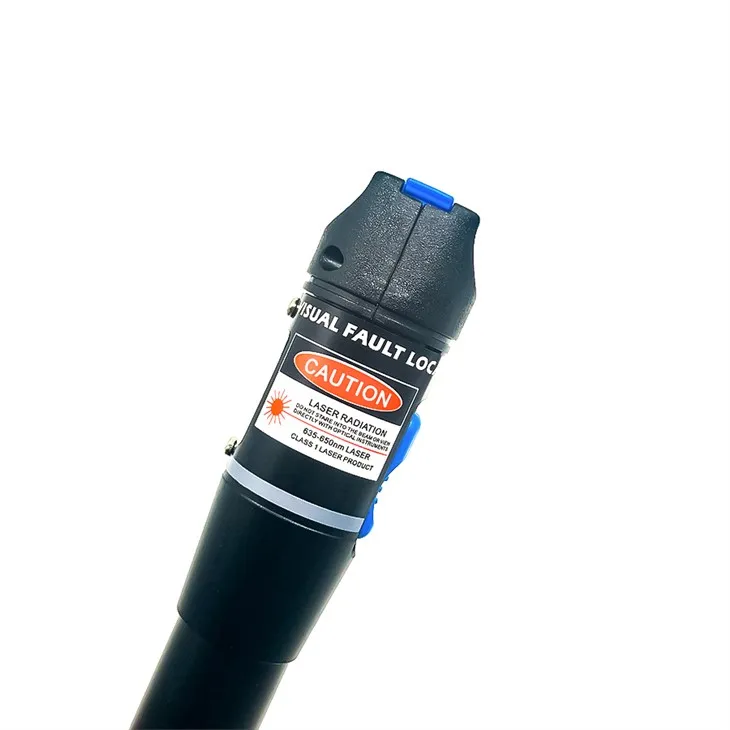

ST816B 650nm 25mw/30mw VFL, 1.25mm Universal Adapter VFL

ST816 30mw pen size fiber optic visual fault locator optic fiber tester mini visual fault locator 1. Summary 650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance...

Product Details

ST816 30mw pen size fiber optic visual fault locator optic fiber tester mini visual fault locator

1. Summary

650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.

2. Functions and feature

--Support CW and 2Hz modulation work mode

--Solid: use special laser end design to avoid damage when dropping on the floor.

--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 60 hours continuously.

--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.

--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.

3. Specifications

Wavelength

650nm±10nm

Light source

FP-LD laser

Output power

1mW, 3mW, 10mW,

20mW (optional)

Approx. test range

3km(1mw), 5km(3mw),

10km(10mw), 15km(20mw)

Connector

1mW, 3mW, 5mW, 10mW,

15mW, 20mW,25mw,30mw((optional)

Working mode

CW or 2Hz modulation

Operating temperature

0~+40 °C

Storage temperature

-25~+70 °C

Power

2pcs AA battery

Working hours

≥ 60(1mW)

Weight

100g(excluding batteries)

Dimension (mm)

Φ: 30; L: 185

Pictures:

ST816B 30mw pen size fiber optic visual fault locator optic fiber tester mini visual fault locator

Workshop:

Factory and warehouse:

ST816B 30mw pen size fiber optic visual fault locator optic fiber tester mini visual fault locator

Forwarder:

ST816B 30mw pen size fiber optic visual fault locator optic fiber tester mini visual fault locator

If you're in need of st816b 650nm 25mw/30mw vfl, 1.25mm universal adapter vfl to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
