ST816 VFL, Optic Fiber Visual Fault Locator, 650nm Visual Fault Locator with Dry Battery Optical Fiber Tester

Packaging & Delivery Packaging Details:Cartons Delivery Detail:7 to 10 days 1. Summary 650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber...

Product Details

Packaging & Delivery

Packaging Details:Cartons

Delivery Detail:7 to 10 days

1. Summary

650nm  visual fault locator has the function of fiber identification and faults  locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it  is also a basic maintenance tool for fiber network, LAN, ATM fiber system and  telecom network system.

2. Functions and feature

--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid  damage when dropping on the floor.
--Long working hours: use effective laser drive  circuit to ensure 1mW/650nm locator can work more than 60 hours continuously.
 --Stable power output: use special laser driver  circuit, which can ensure stable power output in the low battery.
--2.5mm  universal adapter: use 2.5mm  universal adapter, can match SC/LC adapters.

3. Specifications

Wavelength

650nm±10nm

Light source

FP-LD laser

Output power

1mW, 3mW, 10mW,
     20mW (optional)

Approx. test range

3km(1mw), 5km(3mw),
     10km(10mw), 15km(20mw)

Connector

2.5mm universal adapter
     1.25mm connector optional

Working    mode

CW or 2Hz modulation

Operating temperature

0~+40 °C

Storage temperature

-25~+70 °C

Power

2pcs AA battery

Working hours

≥ 60(1mW)

Weight

100g(excluding batteries)

Dimension (mm)

Φ:    30; L: 185

4. Pictures

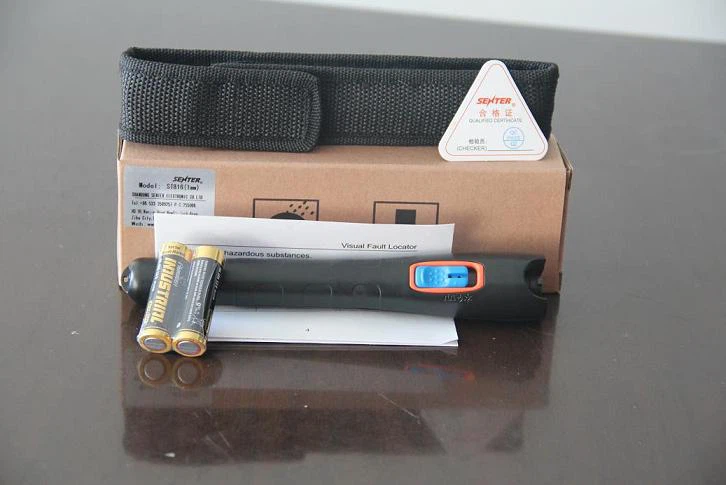

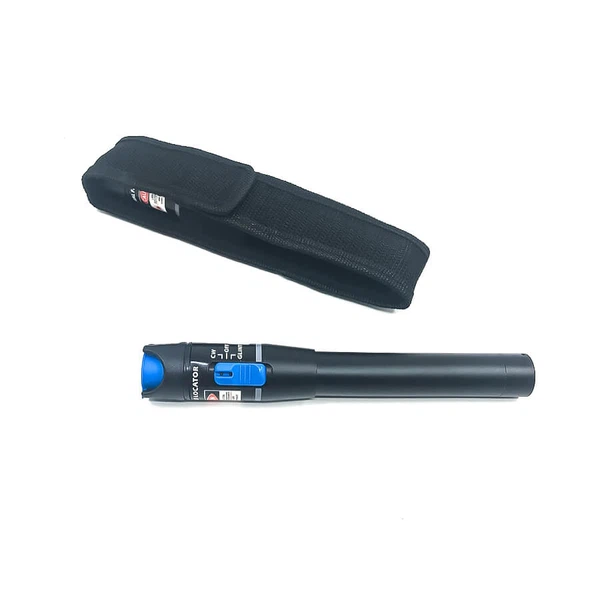

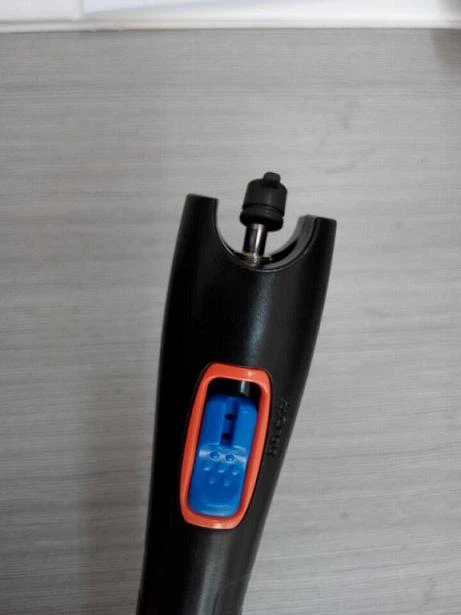

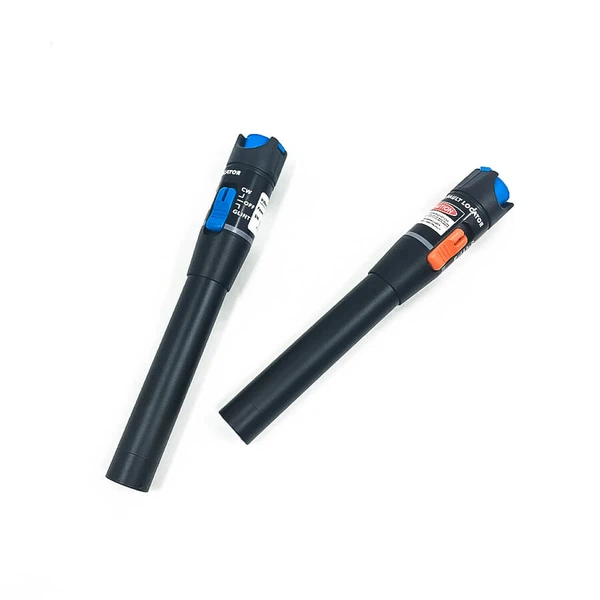

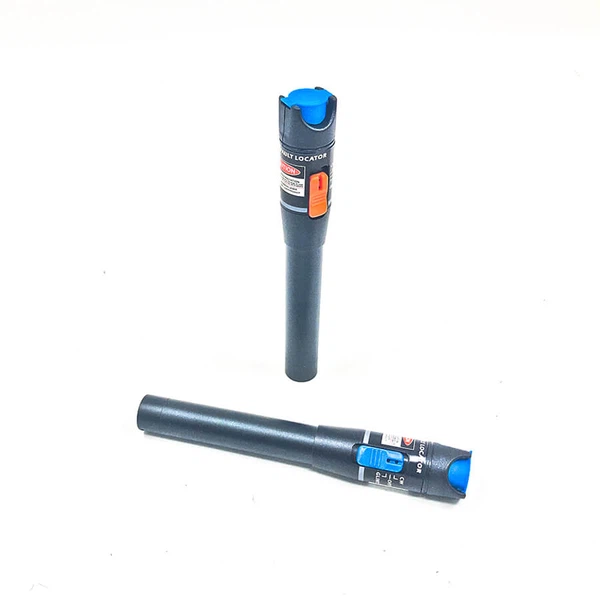

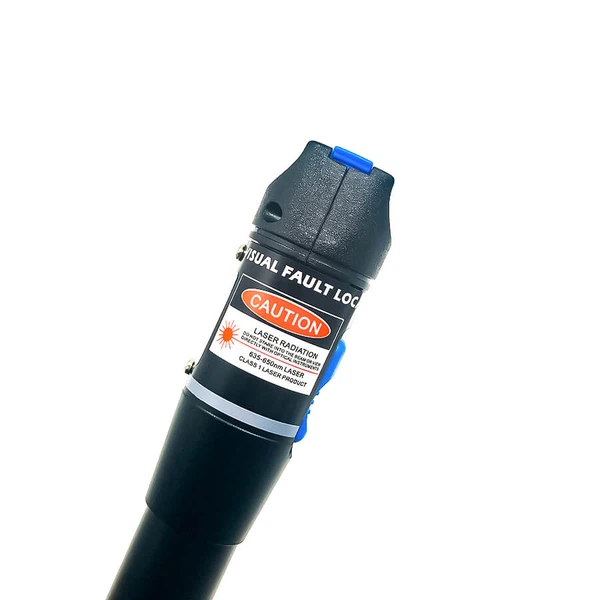

ST816 Red Light Source/optical fiber installation and maintenance/VFL



ST816 Red Light Source/optical fiber installation and maintenance/VFL


ST816 Red Light Source/optical fiber installation and maintenance/VFL


ST816 Red Light Source/optical fiber installation and maintenance/VFL


ST816 Red Light Source/optical fiber installation and maintenance/VFL



ST816 Red Light Source/optical fiber installation and maintenance/VFL



650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.

Functions and feature

--Support CW and 2Hz modulation work mode

--Solid: use special laser end design to avoid damage when dropping on the floor.

--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 60 hours continuously.

--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.

--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.

Specifications

 Wavelength

  650nm±10nm

 Light source

  FP-LD laser

Output power

 1mW, 3mW, 5mW, 10mW, 15mW, 20mW (optional)

connector

  2.5mm universal adapter

 Working mode

  CW or 2Hz modulation

 Operating temperature

  0~+40 °C

 Storage temperature

  -25~+70 °C

 Power

 2pcs AA battery

Working hours

  >60

 Weight

 100g(excluding batteries)

Dimension (mm)

 23 X 207

If you're in need of st816 vfl, optic fiber visual fault locator, 650nm visual fault locator with dry battery optical fiber tester to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
