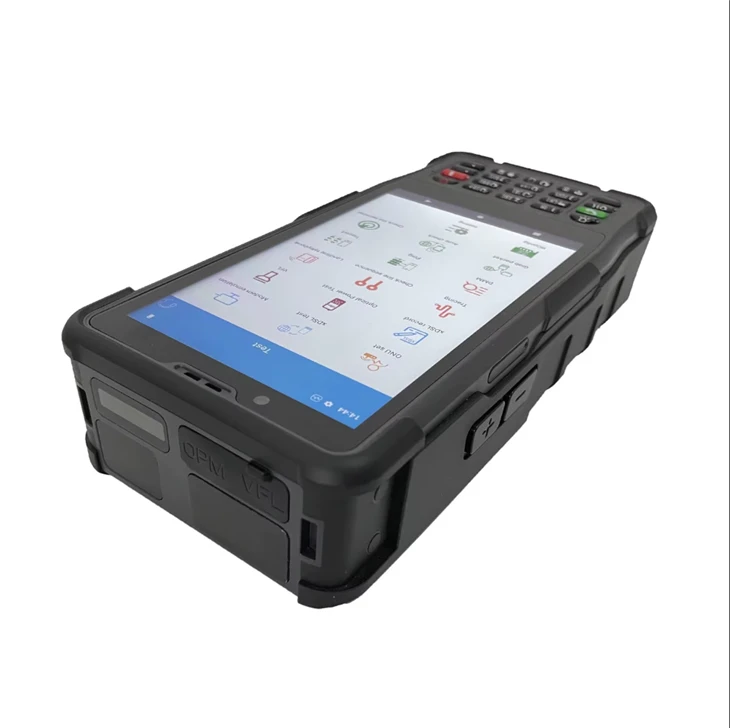

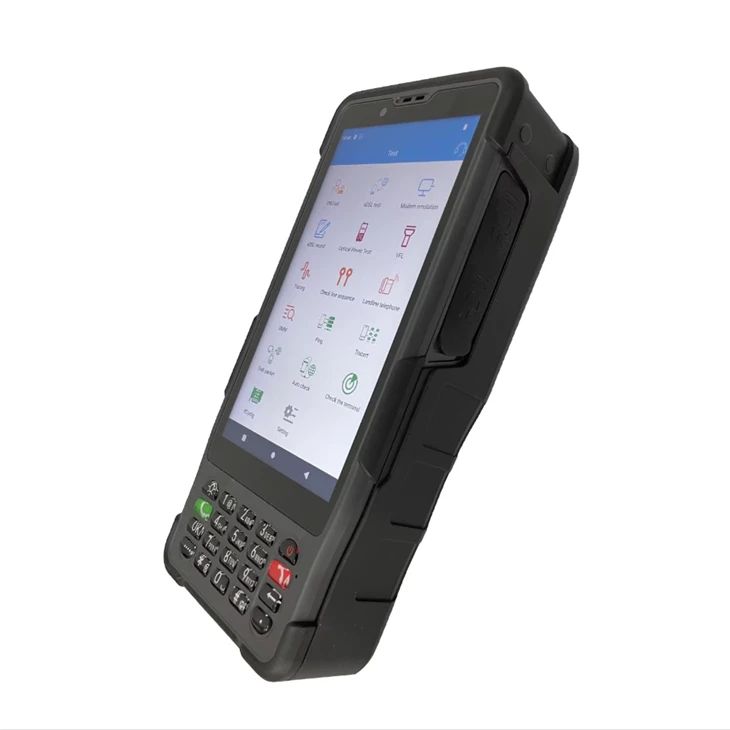

ST327 Telecom test pda VDSL tester Power Meter, DMM Test, Barcode Scanning,ONU, IPTV, Signal Leval Teste

Features Fast processor CPU is MSM8625 Q and the system adopts Android 4.4 operation system. Strong protection for bad environment It can apply to the bad environment, which can resist multiple dropping impact from 1.2m high; good water-proof and dust-proof effect; durable and long life span....

Product Details

Features

Fast processor

CPU is MSM8625 Q and the system adopts Android 4.4 operation system.

Strong protection for bad environment

It can apply to the bad environment, which can resist multiple dropping impact from 1.2m high; good water-proof and dust-proof effect; durable and long life span.

Visible 5 inch LCD in the sunlight

It is 5 inch vertical screen LCD, 720×1280 high resolutions; with pressure sensitive touch screen and semi permeable TFT IPS LCD readable display. Its particular non glare and reflective technology make the work in the wild sunlight more easy and convenient.

The storage capacity is big and extensible

TF card supports 32G cards, which can basically satisfy regular information and data storage.

It adopts portable change design. There is no need to open the tester and you can remove the battery with the knob. The battery capacity is as high as 8200 mAh.

Advanced battery installation design and strong endurance

Due to the lithium battery capacity of 8200 mAh and low-power design, the duration will be more than 3 days under routine operation.

Multi-functional module integration

--The built-in fixed network test module can do ADSL/VDSL test, LAN test and Modem emulation.

--8 million pixels postposition camera makes the image data collection convenient.

--Support Telecom TDD-LTE B41;

--Support Telecom FDD-LTE B1/B3/B7; CDMA 800MHz;GSM B2/B3/B8;

--Support Unicom TDD-LTE B40/B41;

--Support Unicom FDD-LTE B1/B3/B7; WCDAM B1/B2/B5;GSM B2/B3/B8;

--Support 1D CCD bar code scan

Reliable process design

It adopts advanced manufacturing process which is reliable and convenient to assemble.

III. Main functions

Smart Phone Function

--Dialing call and answer

--Message

--Video and Camera

--Call Records

--Alarm Clock

--Calendar

--Setting

--Address Book

--Digital Album

--File Management

--Calculator

--Notepad

--Media Player

--Recorder

--Flashlight

Test Function

xDSL Test

-- Physical Layer Info.

--Net Card

--PPPoE

--FTP Client

--Network Layer Test

--Fixative IP

--Modem Emulation

--PING

Main Specifications

General Specifications

Display screen

720X1280TFT, true color LCD, touch screen

Operation system

built-in Android 4.4 operation system

System

MSM8625 Q, RAM 1G bytes, Flash 8G bytes(3G for ROM and 5G for storage), supports TF memory card(The biggest capacity is 32G)

Wireless Protocol

Model no.

FDD/TDD/WCDMA/EVDO/CDMA/GSM

Unicom/Telecom

ST327

Mobile

ST327T

TDD/TD-SCDMA/GSM

Telecom

ST327E

FDD/TDD/EVDO/CDMA/GSM

Unicom

ST327W

FDD/TDD/WCDMA/EVDO/GSM

Power Supply

Rechargeable 3.8V 8200mAh polymer battery and the max power is 3W.

Camera

8 million pixels post position camera and support auto focus and flash function.

Dimension

181mm*87mm*45mm

Weight

550g

xDSL Index

ADSL2+ Module


Standards

ITU G.994.1 (G.hs), ITU G.992.5, ITU G.992.5 Annex L. The max distance which can be connected is 6.5km. Be compatible with ADSL, ADSL2 and READSL.

Attenuation:

0~63.5dB

Noise Margin

0~32dB

Upstream Channel Rate (interweaved / fast mode)

0~1.2Mbps

Downstream Channel Rate (interweaved / fast mode)

0~24Mbps

The modulating bits in the DMT sub-channel

0~15 and each sub-channels' frequency points

The number of error codes

CRC, HEC, FEC, NCD, OCD

VDSL2 Module


Standards

ITU G.993.2(VDSL2).Be compatible with ADSL2+, ADSL standard.

DSL line transmission parameter


DSL line attenuation

DSL line noise margin

DSL line up channel speed (Inter/Fast mode)0-100M

DSL line down channel speed(Inter/Fast rate)0-100M

DSL line up/down maximum rate and capacity ratio 0-100M

DMT sub channel bit number:0~15, and each sub channel frequency points

DSL line error number (CRC, HEC, FEC, LCD, OCD)

DSL line local output power

State display: signal loss, connection close.

DSLAM information

Error Code Secon

Impulse Noise Protection (INP)

3) Support profiles:

Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a

Optical Power Index

Wavelength range(nm)

800~1700

Photosensing material

InGaAs

Power test range(dBm)

-70~+10 or -50~+26

Error range

±5%

Display distinguishability

Linear display: 0.1%;

logarithmic display: 0.01 dBm

Adapters

FC, ST, SC

VFL Index

VFL

FP-LD

Wavelength

650nm±20nm

Output power

1mw/3mw/5mw/10mw (optional)

Connector

2.5mm universal adapter(SC, FC, ST)

Working mode

CW or 2Hz modulation

Applicable fiber

SM / MM

Producing line

Producing Line

Package:ST327 Android XDSL/ADSL2+ /VDSL2 Tester DMM Test cable trackeing VFL, OPMST327 Android XDSL/ADSL2+ /VDSL2 Tester DMM Test cable trackeing VFL, OPMST327 Android XDSL/ADSL2+ /VDSL2 Tester DMM Test cable trackeing VFL, OPM


ST327 Android XDSL/ADSL2+ /VDSL2 Tester DMM Test cable trackeing VFL, OPM


ST327 Android XDSL/ADSL2+ /VDSL2 Tester DMM Test cable trackeing VFL, OPM

Certificates:

ST327 Android XDSL/ADSL2+ /VDSL2 Tester DMM Test cable trackeing VFL, OPM

ST327 Android XDSL/ADSL2+ /VDSL2 Tester DMM Test cable trackeing VFL, OPM

Transportation

All available shipping ways could be applied. by express,air .

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the items for you before the goods arrive

ST327 Android XDSL/ADSL2+ /VDSL2 Tester DMM Test cable trackeing VFL, OPM
